2 Channel 5V Relay Module
45.00 EGP
-
Buy the 2 Channel 5V relay shield module online. High-efficiency dual 10A optocoupler isolated switching board with selectable triggers for Arduino.
| Weight | 0.00 kg |
|---|
In stock
Description

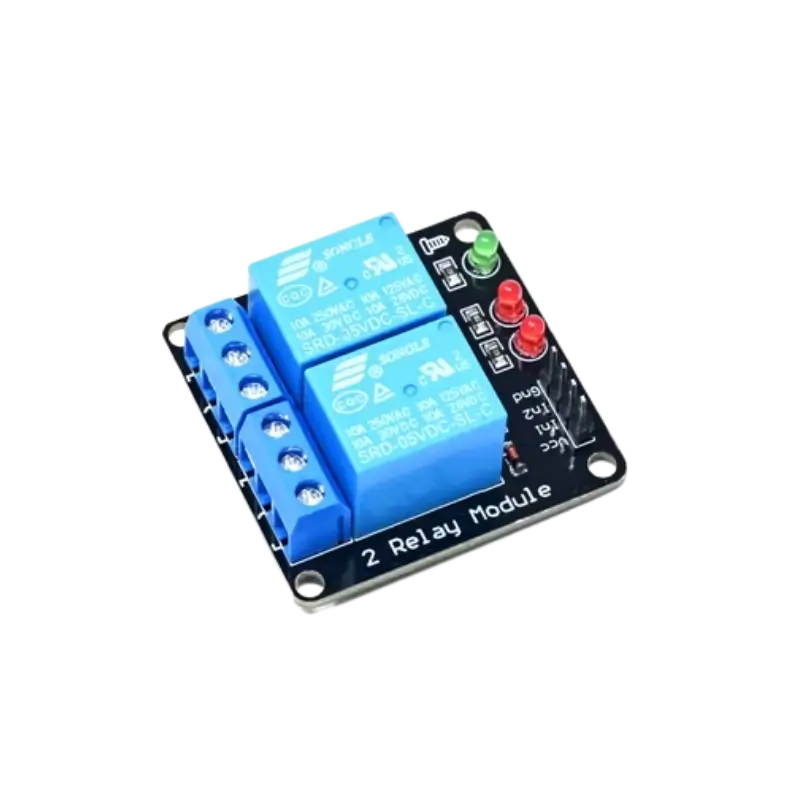

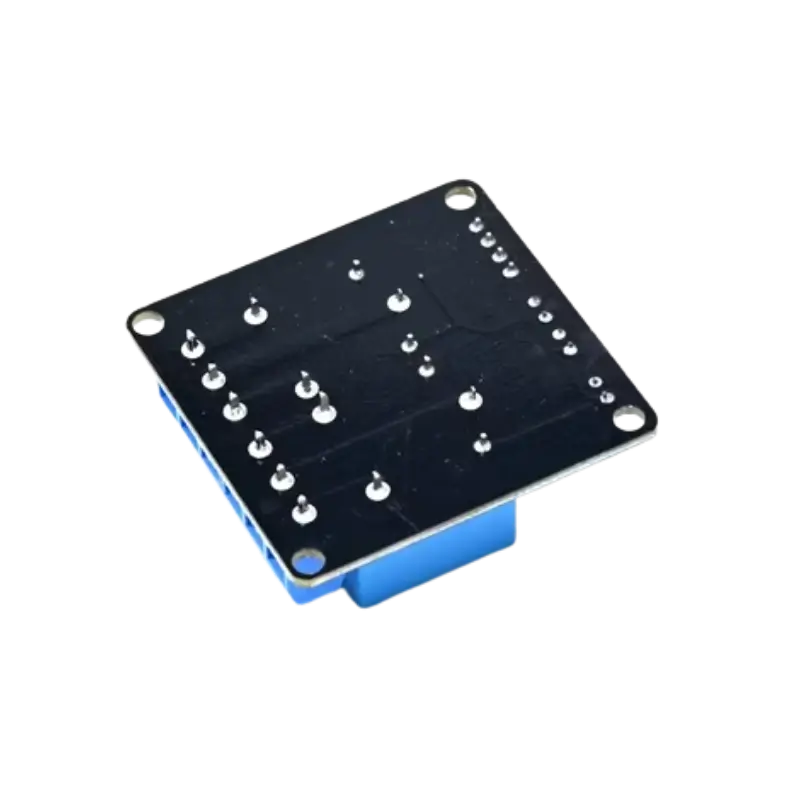

This is a 5V 2 Channel Relay Module, be able to control various appliances, and other equipment with large current. It can be controlled directly by Microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).5V 2-Channel Relay interface board and each one needs 15-20mA Driver Current Equipped with high-current relay, AC250V 10A; DC30V 10A Standard interface that can be controlled directly by microcontroller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) Indication LED’s for Relay output status.
| Model: | Relay Module |
| No. of Channels: | 2 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C): | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage Temperature (°C): | – 65 to 125 |
| Length (mm): | 43 |
| Width (mm): | 43 |
| Weight (g): | 25 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 7 × 10 × 2 cm |
Features:
- The module using Songle relay control.
- AC voltage 250V, AC current 10A, maximum DC voltage 30V DC current maximum 10A.
- Power indicator (green), Two ways of relay status indicator light (red).
- Using 8550 transistor-driven, strong driving ability.
- Has the fixed bolt hole and easy installation.
Package Includes:
1 x 5V 2 Channel Relay Module.
