Description

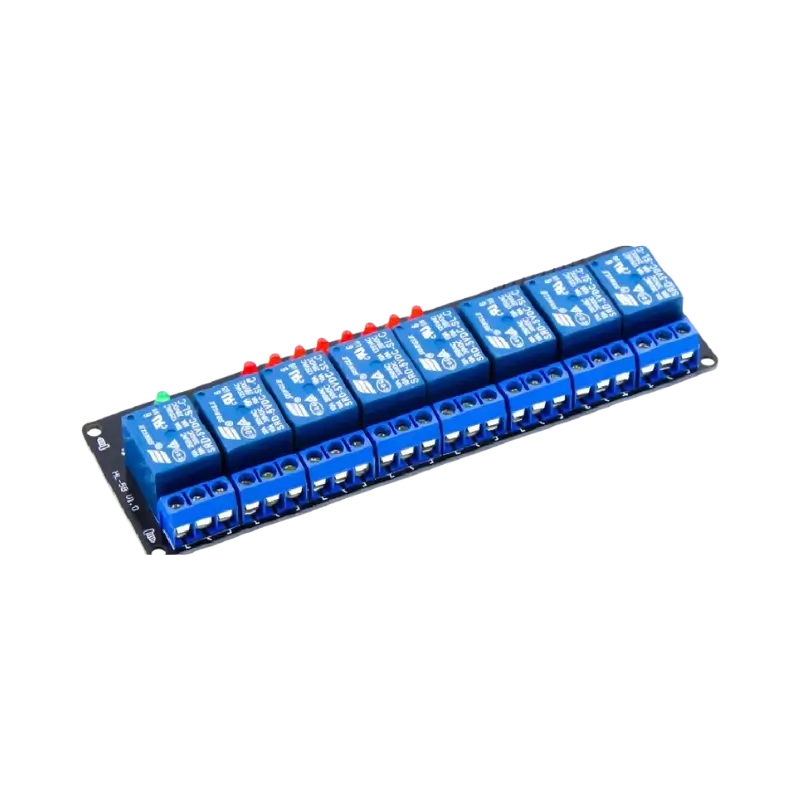

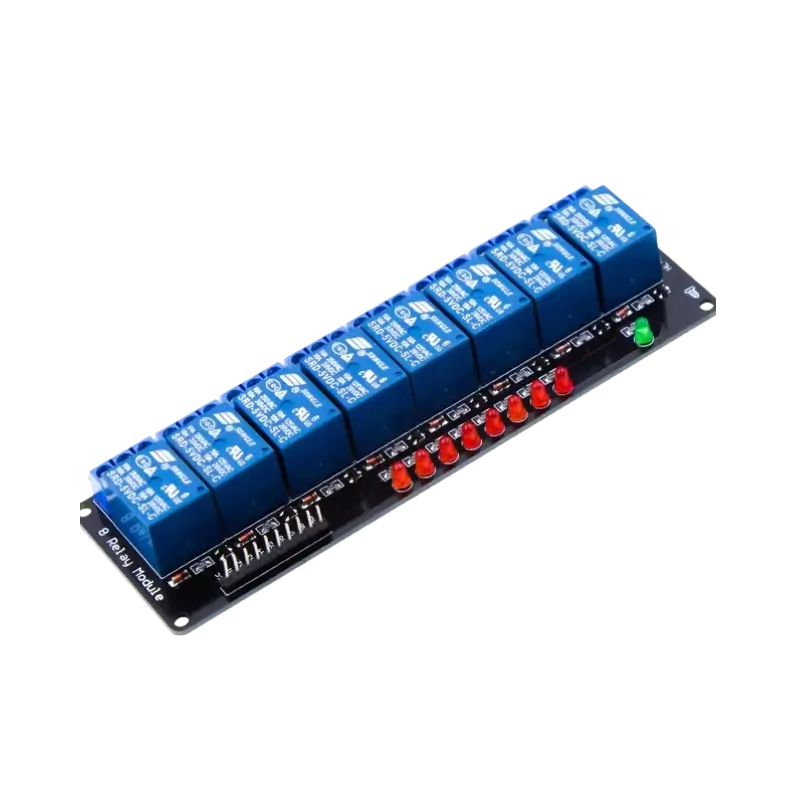

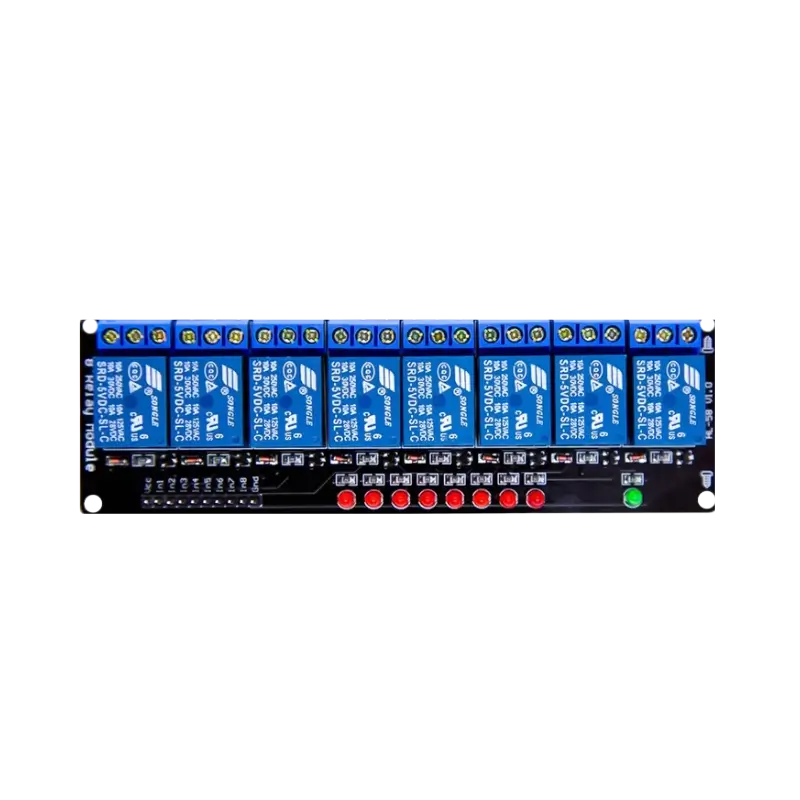

It is a 5V 8 Channel Relay Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
Features:
- The 8550 transistor drive, driveability.
- A fixed bolt holes for easy installation.
- It has a relay status indicator led Power LED(Green), 8 relay status indicator LED(Red)
- Relay control interface by single-chip IO.
- Low-level suction close, high-level release.
- Easy to use, simple 3 line structure.
| Model: | Relay Module |
| No. of Channels: | 8 |
| Storage Temperature (°C): | – 65 to 125 |
| Operating Temperature (°C): | -40 to 85 |
| Length (mm): | 138 |
| Width (mm): | 43 |
| Weight (g): | 100 |
| Shipping Weight | 0.108 kg |
| Shipping Dimensions | 9 × 18 × 2 cm |
Package Includes:
1 x 5V 8 Channel Relay Module.
