A4988 Stepper Motor Driver Module

85.00 EGP

In stock

A high-performance microstepping driver for controlling bipolar stepper motors. Features adjustable current limiting, thermal shutdown, and five microstep resolutions. Includes a free aluminum heat sink for reliable operation in 3D printers and CNC machines.

SKU: PRO00396 Categories: ,

Welcome to Pro Tronix!

Place your first order now and unlock exclusive discounts on all engineering components 5%

Sale_coupon_5

In stock

Compare
Add to wishlist
20 People watching this product now!

Payment Methods:

Description

Product Overview

The A4988 is a complete microstepping motor driver with a built-in translator for easy operation. It is designed to operate bipolar stepper motors (like NEMA 17) in full-, half-, quarter-, eighth-, and sixteenth-step modes. This module is the most popular choice for DIY 3D printers, CNC routers, and robotic precision movements because it only requires two pins (Step & Direction) from your microcontroller.

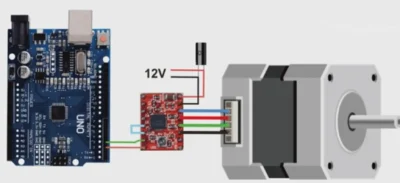

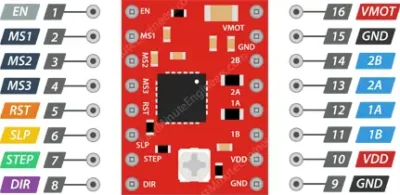

Arduino Wiring & Connections

  • VMOT / GND: External Power (8V – 35V) for the motor.

  • VDD / GND: Arduino 5V / GND for logic.

  • STEP: Arduino Digital Pin (controls speed).

  • DIR: Arduino Digital Pin (controls direction).

  • 1A, 1B, 2A, 2B: Connect to Stepper Motor coils.

  • ENABLE: Connect to GND to turn the driver on.

Technical Specifications

Feature Specification
Motor Supply Voltage 8V to 35V
Logic Voltage 3.3V to 5.5V
Output Current Up to 2A (with heat sink and cooling)
Microstep Resolutions 1, 1/2, 1/4, 1/8, and 1/16
Protection Thermal Shutdown, Under-voltage Lockout, Crossover-current protection
Interface Simple STEP and DIRECTION pins

Key Features

  • Microstepping Control: Achieve smooth and quiet motion with up to 1/16 step resolution.

  • Adjustable Current: Includes an onboard potentiometer to limit the maximum current output, preventing motor damage.

  • Thermal Management: Comes with an adhesive-backed aluminum heat sink.

  • Intelligent Chopping Control: Automatically selects the correct current decay mode (Fast or Slow).

Downloads & Resources

You can see the rest of our available 3D printing and CNC parts from here: 3D Printer & CNC | Pro Tronix

Related Products

SG90
Sold out
Compare

SG90 360° Continuous Rotation Micro Servo

SKU: PRO00405
120.00 EGP

A specialized version of the classic SG90, designed for infinite 360-degree rotation. Unlike standard servos that move to a specific angle, this "Continuous Rotation" motor acts as a miniature gear motor with controllable speed and direction, making it perfect for small wheeled robots. Quality assured by Pro Tronix.

Add to wishlist
Read more
Quick view
Compare

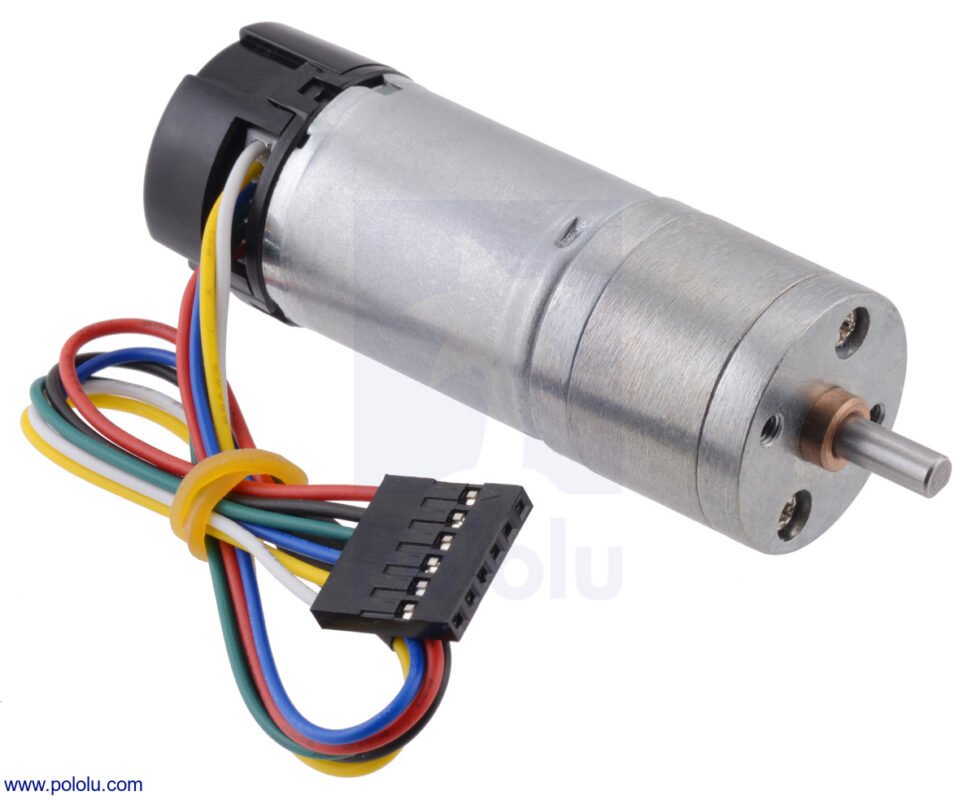

Motor-Encoder-12v

SKU: PRO00402
150.00 EGP

Dc Motor with Encoder, Used 12v 2A

Add to wishlist
Add to cart
Quick view

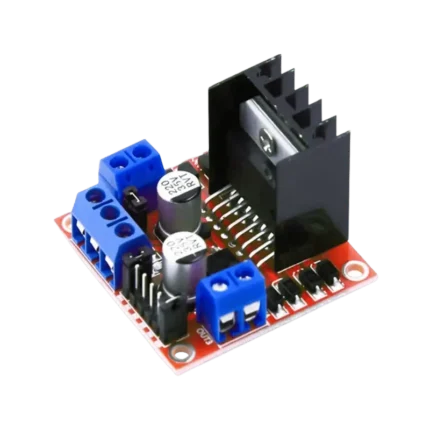

L298N Motor Driver Module
