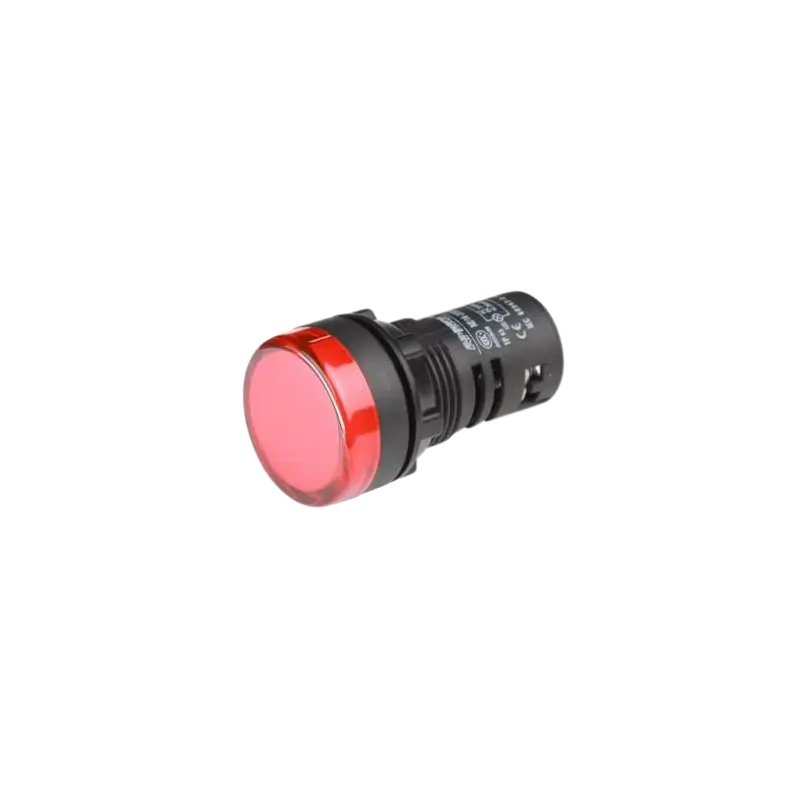

AD16-22DS 22mm Red LED Indicator Lamp (12V) | Pro Tronix
Product Description
The AD16-22DS 22mm Red LED Indicator Lamp (12V) is a rugged, highly visible panel-mount pilot light engineered for control panels, machinery consoles, and custom electronic enclosures. Emitting a bright, piercing red illumination, this long-life LED indicator provides instant visual status feedback for power warnings, emergency stops, fault conditions, or active high-priority alerts. Designed to fit standard 22mm mounting holes, it features screw-clamp terminals for secure wiring and a transparent threaded housing for easy installation.
Essential for industrial control boxes, custom CNC machines, automotive dashboards, and DIY power distribution panels, this reliable indicator light combines low power consumption with high vibration resistance.
🛠️ Installation Tip: When mounting this indicator lamp, drill a clean 22mm hole using a step drill bit or hole saw. Tighten the rear plastic locking nut firmly by hand to prevent the lamp from spinning when connecting screw terminals, but avoid overtightening to prevent cracking the bezel.
Technical & Architectural Highlights
Standard 22mm Panel Cutout: Fits seamlessly into standard industrial knockouts, enclosures, and control console panels.
Vibrant Red LED Optic: Bright, long-lasting LED core provides clear warning and status indication even in well-lit environments.
Secure Screw Terminals: Built-in binding posts ensure solid, vibration-resistant electrical connections without requiring soldering.
Long Operating Lifespan: Solid-state LED design delivers thousands of hours of continuous service with minimal heat emission.
Technical Specifications
| Parameter | Value / Specification |
| Product Type | Panel-Mount LED Indicator Light / Pilot Lamp |
| Model | AD16-22DS-R |
| Mounting Hole Diameter | 22 mm |
| Operating Voltage | 12V DC / AC |
| Emitted Color | Red |
| Terminal Type | Screw Clamp Terminals |
| Housing Material | Flame-Retardant Polycarbonate / ABS Plastic |
Applications
Industrial Control Panels: Indicating fault conditions, emergency alarms, or stop states on machinery and automation gear.
Custom Power Supplies & Inverters: Monitoring 12V DC warning rails, master power switches, and distribution circuits.
Automotive & Marine Dashboards: Adding custom accessory warning lights to vehicles, boats, and off-grid mobile builds.
What’s in the Box
1 x AD16-22DS 22mm Red LED Indicator Lamp (12V).
