Product Description

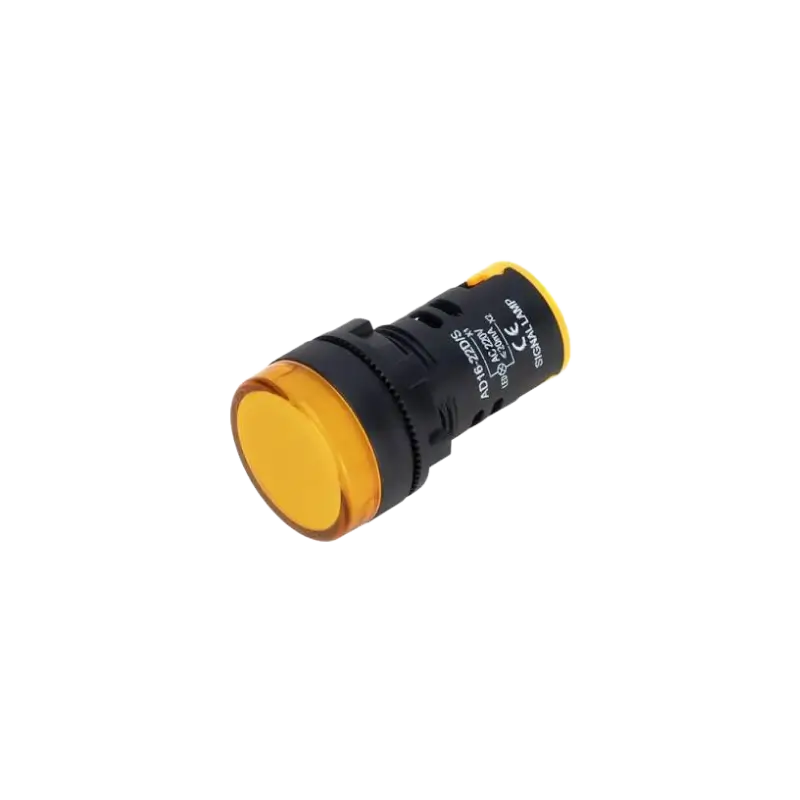

The AD16-22DS 22mm Yellow LED Indicator Lamp (12V) is a rugged, highly visible panel-mount pilot light engineered for control panels, machinery consoles, and custom electronic enclosures. Emitting a bright, piercing yellow illumination, this long-life LED indicator provides instant visual status feedback for power lines, fault warnings, and operation modes. Designed to fit standard 22mm mounting holes, it features screw-clamp terminals for secure wiring and a transparent threaded housing for easy installation.
Essential for industrial control boxes, custom CNC machines, automotive dashboards, and DIY power distribution panels, this reliable indicator light combines low power consumption with high vibration resistance.
🛠️ Installation Tip: When mounting this indicator lamp, drill a clean 22mm hole using a step drill bit or hole saw. Tighten the rear plastic locking nut firmly by hand to prevent the lamp from spinning when connecting screw terminals, but avoid overtightening to prevent cracking the bezel.
Technical & Architectural Highlights
Standard 22mm Panel Cutout: Fits seamlessly into standard industrial knockouts, enclosures, and control console panels.
Vibrant Yellow LED Optic: Bright, long-lasting LED core provides clear status indication even in well-lit environments.
Secure Screw Terminals: Built-in binding posts ensure solid, vibration-resistant electrical connections without requiring soldering.
Long Operating Lifespan: Solid-state LED design delivers thousands of hours of continuous service with minimal heat emission.
Technical Specifications
| Parameter | Value / Specification |
| Product Type | Panel-Mount LED Indicator Light / Pilot Lamp |
| Model | AD16-22DS |
| Mounting Hole Diameter | 22 mm |
| Operating Voltage | 12V DC / AC |
| Emitted Color | Yellow |
| Terminal Type | Screw Clamp Terminals |
| Housing Material | Flame-Retardant Polycarbonate / ABS Plastic |
Applications
Industrial Control Panels: Indicating power status, run states, or warning alerts on machinery and automation gear.
Custom Power Supplies & Inverters: Monitoring 12V DC output rails, auxiliary switches, and distribution circuits.
Automotive & Marine Dashboards: Adding custom accessory status lights to vehicles, boats, and off-grid mobile builds.
What’s in the Box
1 x AD16-22DS 22mm Yellow LED Indicator Lamp (12V).
All your panel lights, switches, and electronic components are available with fast shipping across Egypt from Pro Tronix!
