Product Overview

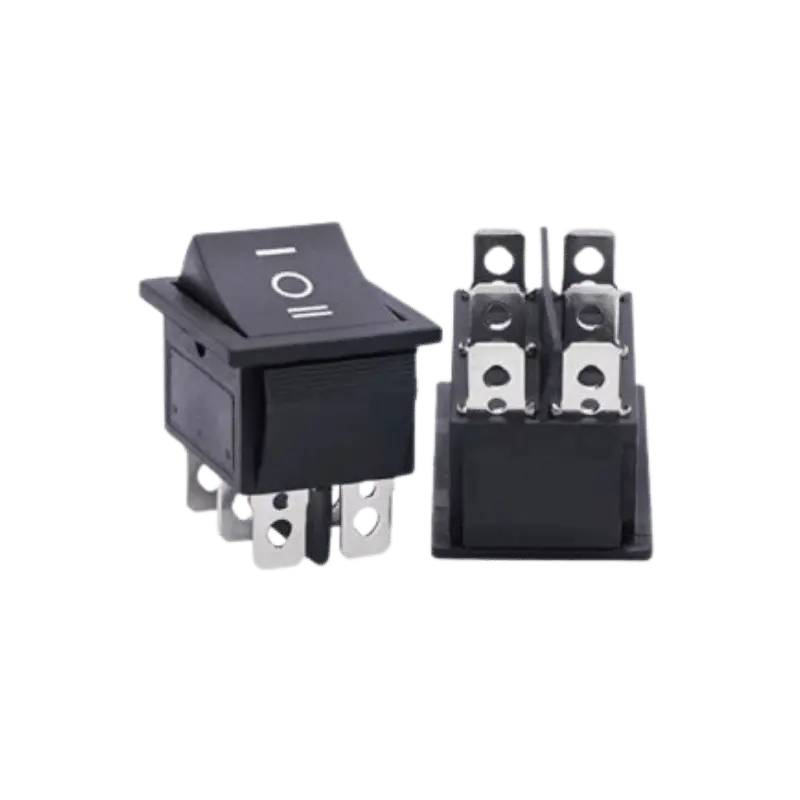

The Switch 6 pins Boat Rocker ON/OFF/ON from Pro Tronix is a high-capacity power switch built for demanding environments. Unlike standard switches, this 6-pin DPDT model allows you to control two separate circuits simultaneously. The three-position design includes a center OFF state, making it perfect for motor direction control (Forward/Stop/Reverse) or toggling between two different power sources. Its snap-in mounting and 16A rating make it a professional choice for both industrial machinery and high-end DIY projects.
Technical Specifications
| Feature | Specification |
| Circuit Type | DPDT (Double Pole Double Throw) |
| Positions | 3 (ON – OFF – ON) |
| Voltage/Current Rating | 16A 250V AC / 20A 125V AC |
| Terminals | 6-Pin (Quick Connect / Solder) |
| Mounting Type | Snap-in Panel Mount |
| Material | Heavy-duty Heat-resistant Plastic |
| Supplier | Pro Tronix |
Key Features
High Power Handling: Rated at 16A, it is capable of managing heavy electrical loads like heating elements and large motors safely.
Dual Circuit Control: The 6-pin configuration allows for independent or synchronized control of two paths.
Stable Center Off: The physical “OFF” position in the middle prevents accidental switching between the two “ON” states.
Industrial Durability: Pro Tronix ensures high-quality internal copper bridges for superior conductivity and thermal stability.
Common Applications
Motor Control: Ideal for DC motor polarity reversal (winches, actuators, and RC vehicles).
Industrial Machinery: Used in control panels for vacuum pumps, conveyors, and lathes.
Home Appliances: Replacement for heavy-duty ovens, water heaters, and power tools.
Dual Power Selection: Toggling a system between Battery Power and Mains Power.
