Product Description

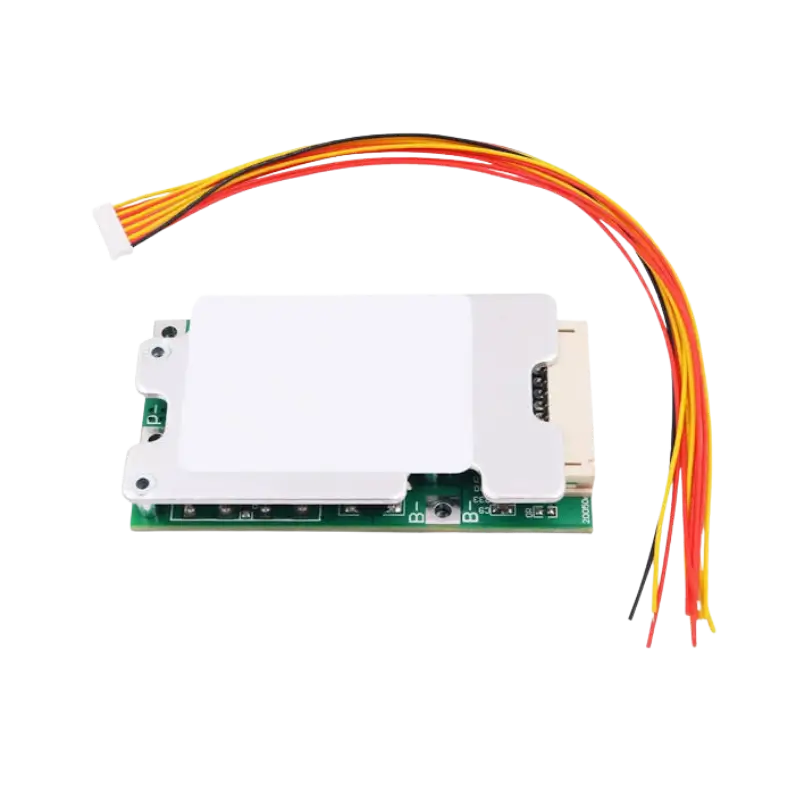

The BMS 10S 36V 30A Li-ion Battery Protection Module is a heavy-duty Battery Management System engineered to monitor and safeguard 10-series lithium-ion battery packs (36V nominal / 42V full charge). Specially built for high-power applications such as electric scooters, e-bikes, solar storage banks, and industrial power tools, this module manages individual cell balancing while providing robust protection against overcharge, over-discharge, over-current, and short circuits.

Equipped with an integrated aluminum heat sink for efficient thermal dissipation during sustained high-current draws, it ensures long-term operational stability and extends overall battery pack lifespan under heavy continuous loads up to 30A.

⚠️ Wiring & Safety Tip: Always wire the balancing ribbon cable strictly in order starting from B- (0V ground) up to B10+ (36V nominal / 42V peak). Verify every individual wire voltage with a multimeter on the connector plug before plugging it into the BMS board to prevent instant damage to the IC.

Technical & Architectural Highlights

• Comprehensive 10S Multi-Protection: Shields 10-series battery configurations against overcharging, deep discharge, over-current, and output shorts.

• Integrated Passive Cell Balancing: Equalizes charge levels across individual cell banks to maintain optimal battery health and capacity.

• 30A Continuous High Output: Handles continuous discharge currents up to 30A, making it suitable for electric mobility and high-torque motors.

• Heavy-Duty Aluminum Heat Sink: Heavy aluminum plate dissipates operational heat efficiently under peak load conditions.

🧰 Recommended Batteries & Power Accessories

Completing your high-power 10S battery pack or electric vehicle build? Add these matching batteries and power management essentials to your order:

1. Lithium Battery Protection Boards (BMS): Explore various voltage configurations and current ratings for custom pack assembly: Pro Tronix BMS Modules Collection

2. 18650 & Cylindrical Lithium-Ion Batteries: High-capacity rechargeable cells ideal for building custom 10S e-bike and power tool battery packs: Pro Tronix Lithium Batteries Collection

3. Lithium Polymer (LiPo) Batteries: Compact single and multi-cell LiPo packs for lightweight portable electronics: Pro Tronix LiPo Batteries Collection

4. 1S – 2S Lithium Battery Charger Modules: Dedicated charging boards and step-up/down power modules for lithium chemistry: Pro Tronix Lithium Charger Collection

5. Battery Holders & Connectors: Secure 18650 battery holders, nickel strips, and high-current wire leads for clean pack assembly: Pro Tronix Battery Holders Collection

Technical Specifications

Applications

• Electric Mobility: Battery management for e-scooters, electric bicycles (e-bikes), and hoverboards.

• Solar Energy Storage: Managing 36V off-grid battery banks for renewable energy setups.

• High-Power Cordless Tools: Power protection for high-voltage industrial tools and custom power supplies.

What’s in the Box

• 1 x BMS 10S 36V 30A Li-ion Battery Protection Module.

• 1 x Multi-pin Wiring Harness / Balance Cable.
