DS18B20 Digital Temperature Sensor Module for Arduino & Raspberry Pi
35.00 EGP
A high-precision digital temperature sensor module featuring the DS18B20 IC. It uses a 1-Wire interface for simple wiring and includes an onboard power LED and pull-up resistor, making it plug-and-play for microcontrollers.
In stock

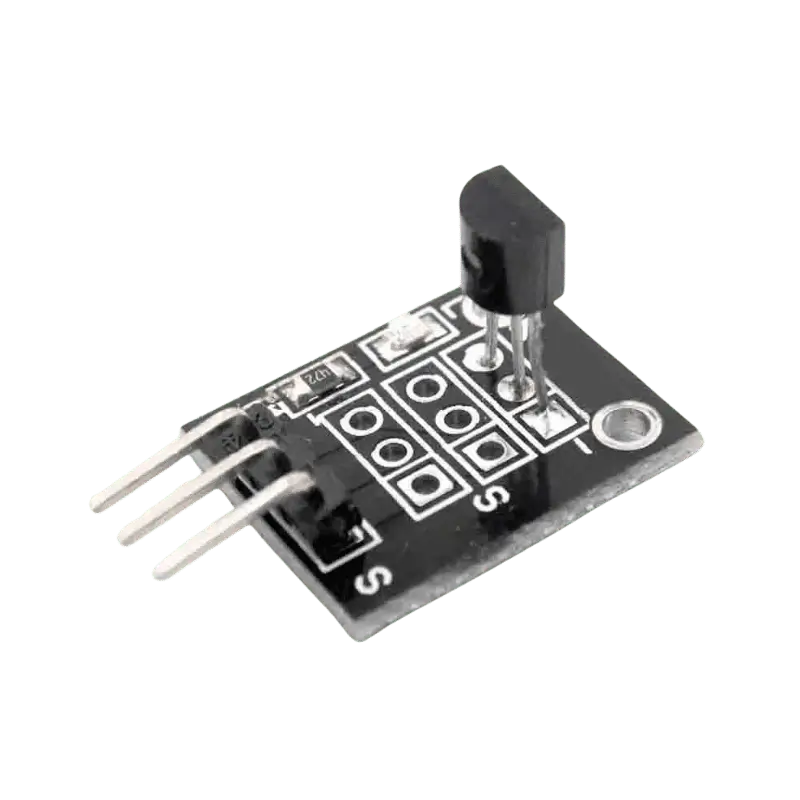

Product Overview
The DS18B20 Module is a digital thermometer that provides 9-bit to 12-bit Celsius temperature measurements. Unlike the standalone chip, this module comes with a pre-soldered 4.7kΩ pull-up resistor and a power indicator LED, saving you time and components. It is ideal for environmental monitoring, smart home projects, and industrial sensing.

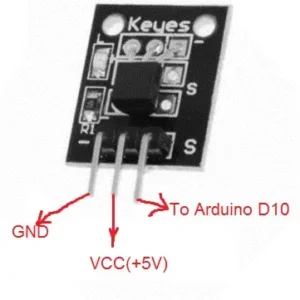

Arduino Wiring & Connections
-
VCC -> Arduino 5V or 3.3V
-
GND -> Arduino GND
-
DAT (Signal) -> Arduino Digital Pin (e.g., Pin 2) (Note: Since this is a module, you usually don’t need to add an external resistor)
Technical Specifications
