Endstop Mechanical Limit Switch Module with Cable (RAMPS 1.4 Compatible) | Pro Tronix
Original price was: 30.00 EGP.25.00 EGPCurrent price is: 25.00 EGP.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Product Description
The Mechanical Endstop Limit Switch is the most reliable and widely used homing sensor for DIY 3D printers, CNC machines, and custom laser cutters. Specifically designed for seamless integration with the RAMPS 1.4 shield and other popular 3D printer controller boards (such as MKS Gen, Creality, and BIGTREETECH), this module acts as a physical boundary detector to safely home your printer’s X, Y, and Z axes.

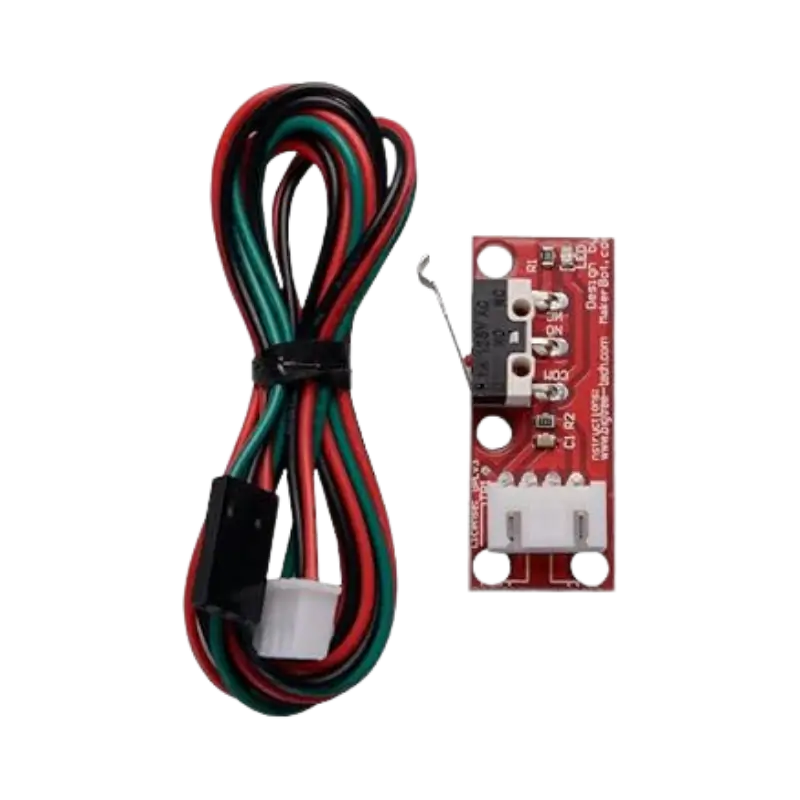

Mounted on a compact, sturdy PCB, this module features a highly responsive mechanical microswitch with an integrated roller lever for smooth actuation. It includes an onboard status LED that lights up instantly when the switch is triggered, making debugging and leveling incredibly simple. To make installation a breeze, each module comes pre-packaged with a high-quality, pre-crimped 3-pin connection cable.
⚠️ Wiring Warning: Pay close attention to the pin labels on both the endstop board and your controller board. Connecting the cable backwards can create a direct short circuit between the 5V and GND pins on your controller, which can permanently damage your regulator or mainboard.
Connection Interface
The board features a standard 3-pin JST-XH header with color-coded wiring:
-
VCC (Red Wire): Power input, connects to the 5V or 3.3V pin on your controller board.
-
GND (Black Wire): Common ground connection.
-
SIG / OUT (Green or Yellow Wire): Digital output signal.
-
Idle State: Outputs a High signal (pulled up to VCC).
-
Triggered State: When the mechanical lever is pressed, the signal line is pulled Low (0V) and the onboard LED illuminates.
-
Applications
-
3D Printers: Standard axis homing and limit detection for RepRap, Prusa i3, Makerbot, Creality, and custom Cartesian or CoreXY 3D printers.
-
CNC Routers & Carvers: Preventing mechanical crashes by setting physical travel boundaries on DIY CNC milling machines.
-
Laser Engravers: Providing high-accuracy home positioning for repeatable laser plotting.
Technical Specifications
| Parameter | Value / Specification |
| Switch Type | Mechanical Microswitch (with metal roller lever) |
| Operating Voltage | 3.3V to 5V DC |
| Output Logic | Active Low (Normally Open structure with pull-up) |
| Indicator | Onboard red LED trigger indicator |
| Connector | 3-Pin JST-XH header |
| Cable Length | Approximately 50cm to 70cm (standard 22AWG) |
| Mounting Holes | Dual M3 holes (20mm spacing) |
| Dimensions | 40mm x 16mm x 8mm |
What’s in the Box
-
1 x Endstop Mechanical Limit Switch Board.
-
1 x 3-Pin DuPont/XH2.54 Compatible Connecting Cable.
