ESP-12N ESP8266 Serial WiFi Module | Ultra Compact Wireless Transceiver

Product description

Accelerate your minimal wireless communication designs with the ultra-compact ESP-12N ESP8266 Serial WiFi Module. In the rapidly evolving landscape of smart home networks, internet-of-things prototyping, and standalone distributed telemetry, having a micro-sized radio module that adds stable network capabilities to existing electronics without inflating production costs is critical. This high-efficiency component is engineered around the advanced ESP8266EX system-on-chip, delivering optimized, low-profile RF performance in a lightweight, space-saving format that is perfect for students, professional makers, and hardware developers alike.

Advanced Features of ESP-12N ESP8266 Serial WiFi Module: The core performance is driven by an efficient 32-bit RISC processor operating alongside a fully integrated TCP/IP protocol stack. Because it manages heavy network processing, security authentications, and signal routing internally on its own silicon, it completely unloads network overhead from your main system processor. This specialized standalone logic allows it to function effortlessly either as an independent, standalone microcontroller node or as a dedicated wireless slave interface executing standard AT commands over serial.

Wireless communication on the ESP-12N ESP8266 Serial WiFi Module is highly reliable and secure. This specific module architecture represents a highly specialized, space-saving variation over older models, featuring an optimized, smaller footprint layout with a condensed internal PCB trace antenna configuration. This design maximizes anti-interference capabilities and impedance matching within tightly confined setups, ensuring rock-solid connectivity and automatic network reconnection to local access points or cloud infrastructure.

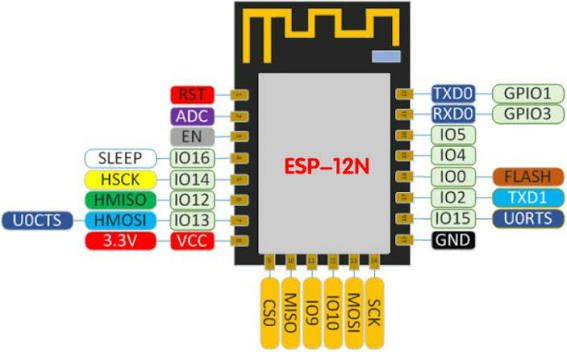

Why Choose ESP-12N ESP8266 Serial WiFi Module for IoT? The distinct advantage of this architecture is its ultra-streamlined castellated pinout layout, which trims away excess mechanical footprint to give you the smallest possible surface-mount form factor for high-density hardware designs. It breaks out all essential GPIO pins, SPI channels, and serial hardware lines (TX/RX) while leaving a cleaner profile that solders perfectly flat onto custom printed circuit boards (PCBs). This minimal, low-profile layout makes it an exceptional choice for tight industrial control panels, smart wearables, and miniature smart wall switches.

This modular electronic component offers complete software cross-compatibility across all major testing environments. You can effortlessly write and upload code using the beginner-friendly Arduino IDE, high-level MicroPython, or lightweight Lua scripts. This deep framework accessibility grants you immediate entry into a global network of open-source automated libraries and technical documentation to shorten your product engineering schedule.

Technical Specifications:

• Product Component Classification: ESP-12N ESP8266 Serial WiFi Module Architecture

• Core Microcontroller Silicon: High-Efficiency ESP8266EX 32-Bit RISC Chip

• Wireless Protocol Support: 2.4 GHz Wi-Fi (802.11 b/g/n) with WPA/WPA2 Hardware Security

• On-Board Storage Memory: 4 MB (Megabytes) SPI Flash Memory Layout

• Integrated Network Stack: Full TCP/IP Protocol Stack Supporting AP, STA, and AP+STA Modes

• Serial Communication Interface: Hardware UART TX / RX Lines Supporting Standard AT Commands

• Peripheral Hardware Lines: Expanded GPIO Pins, PWM, I2C, SPI, and 10-bit ADC Channel

• Power Supply Requirements: 3.3V DC Regulated Voltage Input (Pins are not 5V tolerant)
