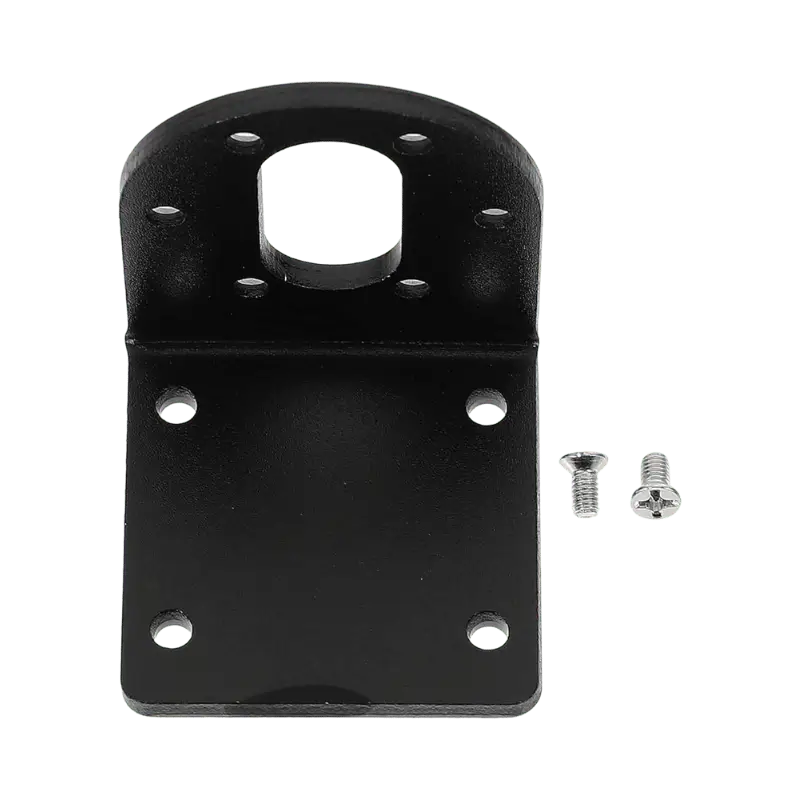

JGB37-520 Motor Mounting Bracket | 37mm L-Shape Holder
60.00 EGP
A heavy-duty, reinforced mounting bracket specifically designed for the JGB37-520 series gear motors. Made from high-strength alloy steel, this 37mm L-shape holder provides a stable, vibration-free base for your high-torque robotics and industrial automation projects. Quality assured by Pro Tronix.
In stock
JGB37-520 Motor Mounting Bracket | 37mm L-Shape Holder
Product Overview
The JGB37-520 Mounting Bracket from Pro Tronix is an essential hardware component for securing 37mm diameter gear motors. High-torque motors like the JGB37 series can generate significant force; without a sturdy mount, the motor can shift or vibrate, leading to mechanical failure or misalignment.
This bracket is precision-stamped from thick steel and features a black rust-resistant finish. It includes pre-drilled holes that perfectly match the face-plate mounting pattern of the JGB37-520 motor, as well as slots on the base for flexible positioning on your chassis or frame.

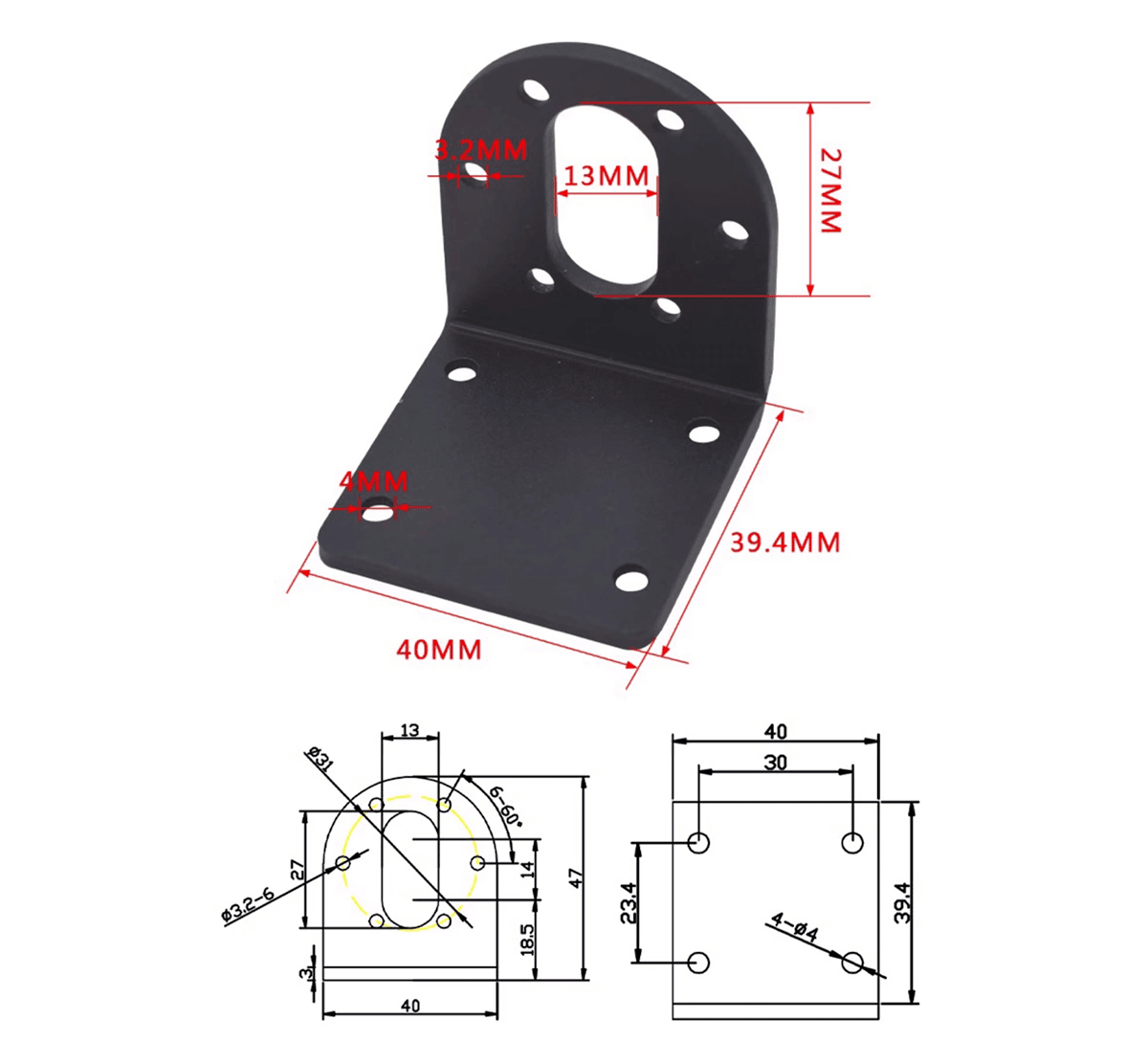

Technical Specifications
| Feature | Specification |
| Material | Alloy Steel |
| Compatible Motor Dia. | 37mm (JGB37 / GB37 Series) |
| Shape | L-Type / Right Angle |
| Finish | Black Electro-coating (Rust Resistant) |
| Mounting Holes | M3 (Standard for 37mm Motors) |
| Base Mounting | M4 Slots |
| Thickness | Approx. 2mm – 3mm |
| Supplier | Pro Tronix |
Key Features
-
Reinforced Stability: Designed to handle the high stall torque of JGB37-520 motors without bending or flexing.
-
Precision Fit: The center bore and screw holes are accurately aligned to ensure the motor shaft is perfectly centered.
-
Corrosion Resistant: The durable black finish protects the bracket from moisture and wear in industrial or outdoor environments.
-
Universal Base Slots: The slotted base allows for easy adjustment and tensioning when connecting the motor to wheels, gears, or belts.
Common Applications
-
Mobile Robot Chassis: Securing the main drive motors for heavy-duty 4WD or tank-tread robots.
-
Conveyor Systems: Mounting gear motors for small-scale industrial sorting belts.
-
Automated Gates/Latches: Providing a solid anchor for motors used in smart home mechanical locks.
-
Camera Sliders: Ensuring a steady, non-slip mount for motorized photography rigs.
You can see our available motion control products from here: Motors | Pro Tronix
