Product Overview
The MB-102 Power Module is a must-have for any electronics hobbyist. It takes an input of 7V to 12V from a DC adapter and regulates it down to clean 3.3V or 5V power for your circuit. The unique design features two independent output channels, allowing you to have 5V on one side of your breadboard and 3.3V on the other simultaneously.

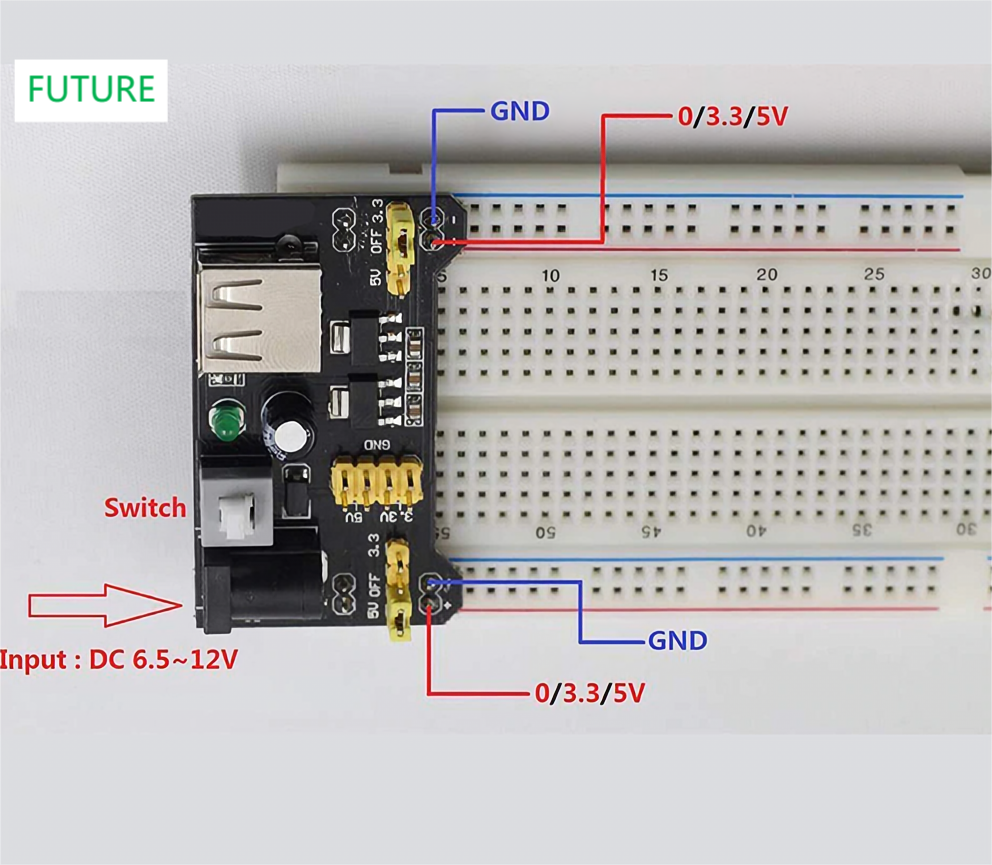

Connections & Controls
-
DC Input: 2.1mm Center-Positive Barrel Jack (7V – 12V).
-
USB Input: Type-A USB port (can be used to power the board or as a 5V output).
-
Power Switch: Latching button to turn the entire board on/off.
-
Voltage Select Jumpers: Two sets of jumpers to choose [5V | OFF | 3.3V] for each side of the breadboard independently.
-
Output Pins: Header pins on the bottom align perfectly with the standard power rails of a breadboard.
Technical Specifications
| Feature | Specification |
| Input Voltage | 7V to 12V (DC Jack) or 5V (USB) |
| Output Voltage | 3.3V and 5V (Switchable) |
| Max Output Current | < 700mA |
| Compatibility | MB-102, 400-Point, and 830-Point Breadboards |
| Protection | Internal Short Circuit & Thermal Protection |
| Indication | Onboard Green LED Power Indicator |
Key Features
-
Dual Output Capability: Run 5V components (like sensors) and 3.3V components (like ESP8266) on the same board with ease.
-
Plug-and-Play: Specifically shaped to fit standard breadboard power rails without extra wiring.
-
Stable Power: Onboard voltage regulators ensure your sensitive microcontrollers don’t get damaged by voltage spikes.
-
USB Port Convenience: Use your PC or a phone charger to power your prototype via the USB-A port.
