Product Overview

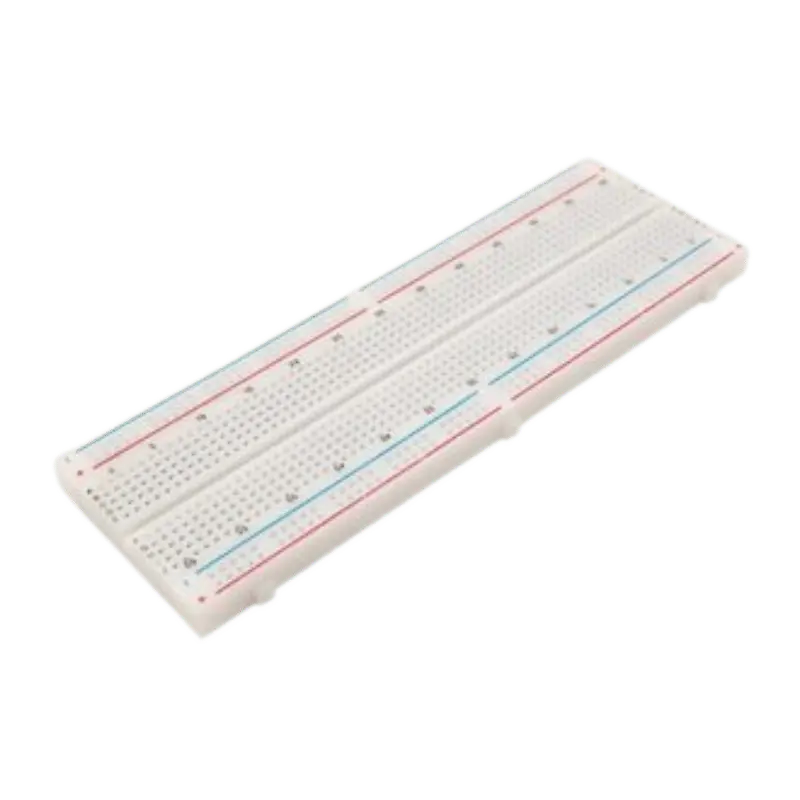

The MB-102 breadboard is the primary tool for any electronics enthusiast. It offers 830 tie-points, divided into 630 points for the main component area and 200 points across four power rails. Its layout is designed to fit standard Dual In-line Package (DIP) ICs perfectly, making it easy to create temporary circuits without any soldering.
Layout & Power Connectivity
Four Power Rails: Two on each side, clearly marked with Red (+) and Blue (-) lines for easy voltage identification.
Component Area: Two sets of 63 columns, with 5 connected points each (totaling 630 points).
IC Center Groove: A standard 0.3″ gap in the middle, perfectly sized to straddle IC chips and microcontrollers like the Arduino Nano.
Technical Specifications
| Feature | Specification |
| Total Tie-Points | 830 Points |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard for All Headers |
| Material | White ABS Plastic with printed color coordinates |
| Dimensions | 165mm x 55mm x 8.5mm |
| Internal Contacts | Nickel-Plated Phosphor Bronze |
| Mounting Type | Double-sided adhesive tape (PE Foam) on the back |
Key Features
Clear Alphanumeric Labeling: Printed coordinates (A-J and 1-63) help you follow circuit diagrams and troubleshoot quickly.
Independent Power Distribution: Allows for different voltage levels to be run on opposite sides of the board.
Expandable Design: Includes interlocking side tabs, allowing you to connect multiple MB-102 boards for massive projects.
MB-102 Module Ready: Perfectly spaced to accommodate the standard “Breadboard Power Supply Module” for stable power input.
