Piezo Sensor Element 20mm | Pro Tronix
35.00 EGP

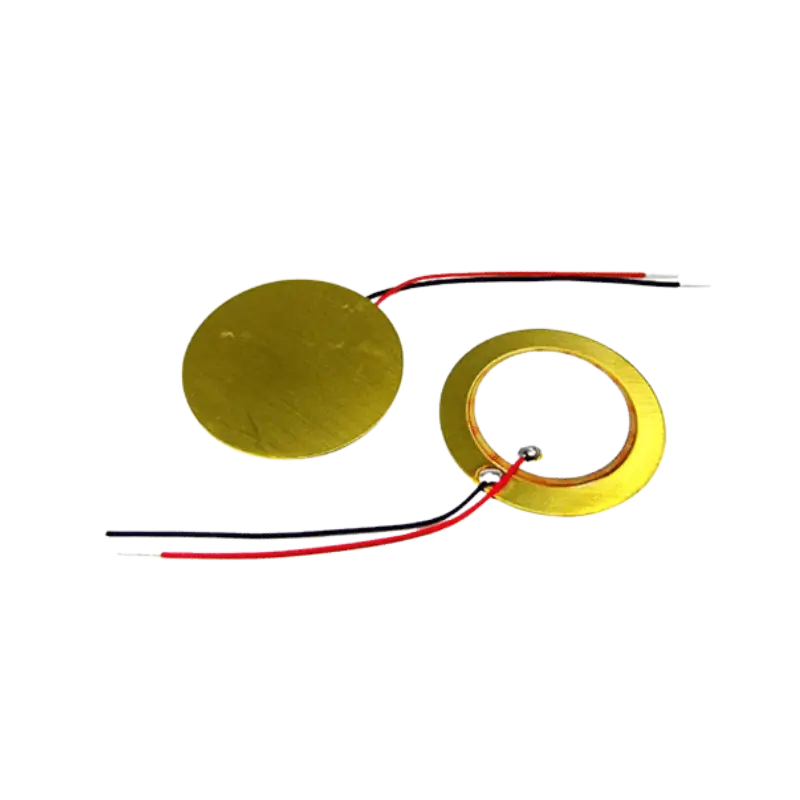

High-sensitivity 20mm piezoelectric ceramic sensor element built on a robust brass substrate. Generates clear analog voltage spikes upon mechanical shock or vibration, offering an exceptional baseline transducer for electronic drum pads, acoustic pickups, and automated knock detectors.
| Weight | 0.00 kg |
|---|
In stock
Product Description
A high-sensitivity 20mm piezoelectric ceramic disc sensor element, ideal for vibration detection, knock sensing, and acoustic monitoring in Arduino and microcontroller projects. This ultra-thin component operates on the piezoelectric effect, generating a small analog voltage spike when subjected to mechanical stress, impacts, or vibrations. Constructed with a solid brass substrate disk bonded to a specialized ceramic piezoelectric layer, it delivers rapid response times and highly repeatable data. Its low profile and lightweight structure allow it to be easily attached to surfaces like structural frames, drums, or security enclosures, providing a cost-effective, versatile solution for touch interfaces, shock alarms, and acoustic pickups.
Pinout / Layout Connections
The raw element features two concentric electrical contact zones for soldering connection wires:
-
Inner Ceramic Layer (Positive Node): Solder point for the analog signal lead wire routing to your analog-to-digital converter (ADC) or signal conditioner.
-
Outer Brass Ring (Ground Node): Solder point for the common system ground return line.
-
Note: It is highly recommended to use a parallel $1\ \text{M}\Omega$ resistor across these contacts when interfacing with high-impedance microcontroller pins to bleed off residual static charges.
Applications
-
Electronic Drum Pads: Perfect for building custom electronic drum triggers, practice pads, and touch-sensitive musical instruments.
-
Intrusion & Knock Detection: Excellent for creating smart door-knock secret phrase decoders, window-vibration alarm sensors, and anti-tamper security grids.
-
Structural Health Diagnostics: Ideal for monitoring high-frequency mechanical vibration profiles on moving parts, bearings, and industrial enclosures.
Compatibility
The Piezo Sensor Element 20mm outputs a direct voltage spike that can be read or conditioned by a variety of platforms:
-
Arduino Board Series (Uno, Nano, Mega, Pro Micro) using standard
analogRead()inputs (safely clamped via a Zener diode or resistor network). -
ESP32 and ESP8266 boards (Compatible with native ADC inputs when output voltage is kept within 3.3V limits).
-
Analogue Audio Preamplifiers and active direct injection (DI) boxes for acoustic amplification.
Technical Specifications
| Parameter | Value / Specification |
| Element Diameter | 20 mm |
| Substrate Material | High-Conductivity Brass |
| Resonant Frequency | $6.3\ \text{kHz} \pm 0.6\ \text{kHz}$ |
| Resonant Impedance | $\le 500\ \Omega$ |
| Static Capacitance | $10,000\ \text{pF} \pm 30\%$ (at 1 kHz) |
| Total Plate Thickness | ~0.2 mm to 0.3 mm |
| Output Signal Type | AC Analog Voltage Spike (Proportional to impact force) |
