Product Description

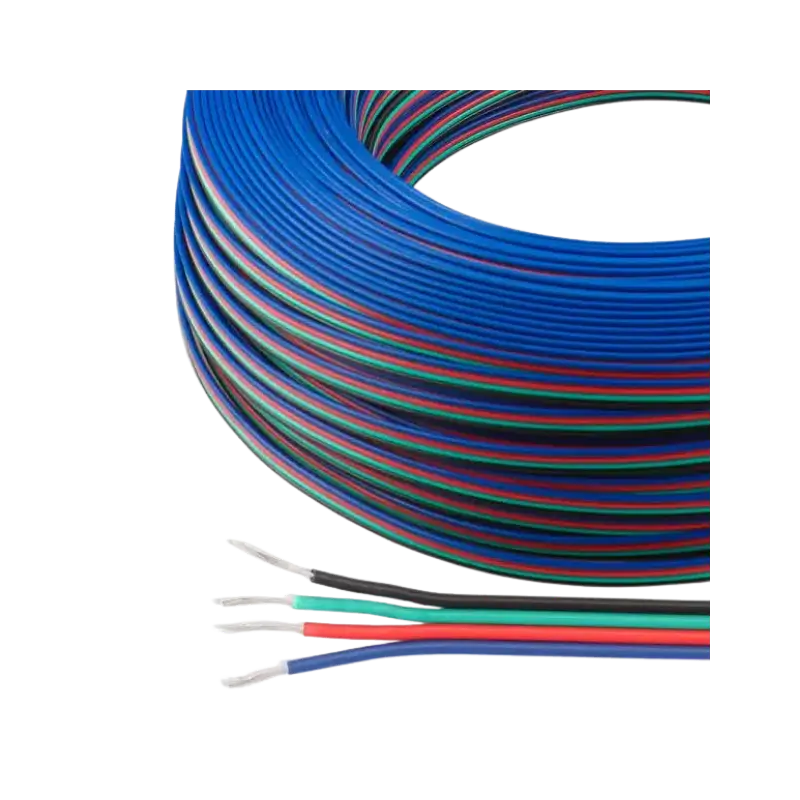

The RGB 4-Pin Wire (1 Meter) is a flexible, multi-colored ribbon cable designed specifically for wiring, extending, and custom-installing 5050 RGB LED strip lights, controllers, and low-voltage lighting systems. Featuring four distinct color-coded conductors enclosed in a flat, manageable ribbon profile, it allows you to route power and individual color channels cleanly without confusion.
Essential for LED lighting setups, architectural accent projects, and custom RGB microcontroller displays, this stranded copper wire solders easily and fits securely into standard 4-pin quick connectors and headers.
⚠️ Wiring & Voltage Tip: Always verify your 12V/24V power supply polarity and match the color-coded lines (typically +12V, R, G, B) to your LED strip pads before powering on your circuit to prevent permanent LED damage.
Technical & Architectural Highlights
Color-Coded 4-Conductor Ribbon: Features distinct color insulation (Red, Green, Blue, and Black/+12V) for error-free wiring alignment.
Flexible Flat Profile: Ribbon configuration keeps wires neat, bundled, and easy to route through tight spaces or aluminum channels.
Stranded Copper Conductors: Provides excellent flexibility and high current-carrying capacity for standard LED lighting runs.
Easy to Strip & Solder: Outer insulation strips smoothly for rapid termination into screw terminals, connectors, or solder joints.
Technical Specifications
| Parameter | Value / Specification |
| Product Type | 4-Pin RGB LED Extension Cable |
| Conductor Count | 4 Wires / Conductors |
| Conductor Material | Stranded Tinned Copper |
| Standard Length | 1 Meter (Continuous Cut) |
| Current Rating | Up to 3A per channel (Recommended) |
| Voltage Rating | 0 to 24V DC |
Applications
RGB LED Strip Extensions: Bridging gaps between LED light strips, amplifiers, and controllers around corners or rooms.
Custom Lighting Installations: Wiring under-cabinet lighting, signage, and automotive accent setups.
Microcontroller Color Projects: Connecting multi-color LED modules and indicators to custom driver boards.
What’s in the Box
1 x 1-Meter Roll of 4-Pin RGB LED Wire.
All your electronics components, connectors, and workshop accessories are available with fast shipping across Egypt from Pro Tronix!
Pinout Configuration
The 4-conductor ribbon provides standard color-coded pathways:
| Conductor Color | Description |
| Black | Positive Power (+12V / +24V DC) |
| Red | Red LED Channel Control |
| Green | Green LED Channel Control |
| Blue | Blue LED Channel Control |
