Soil Moisture Sensor Module

Product description

Accelerate your precision agricultural tracking and automated gardening setups with the high-sensitivity Soil Module Moisture Sensor. In the expanding world of smart home greenhouse systems, automated hydroponics, and data-driven farming, having an efficient sensor that tracks soil hydration levels in real-time is absolutely critical. This heavy-duty sensing probe is engineered to deliver reliable analog and digital signals, providing an exceptional monitoring solution for students, environmental researchers, and hardware hobbyists alike.

Advanced Features of Soil Module Moisture Sensor: The core performance functions via two exposed high-conductivity metallic probes that measure the electrical resistance of the surrounding earth substrate. Because water conducts electricity much more efficiently than dry soil, the module translates changes in moisture into readable hardware signals; as the ground dries out, the resistance increases, and the output voltage changes correspondingly. This simple yet highly effective physical mechanism allows for instant tracking of underground hydration levels without complex chemical sampling.

Signal processing is managed by a dedicated on-board dual comparator integrated circuit (LM393 or equivalent). The control board features a built-in sensitivity adjustment potentiometer dial, allowing you to manually set a distinct threshold for the digital output channel. When moisture levels drop below your custom-calibrated point, the digital pin trips from low to high, giving you a clean, processing-light trigger signal to actuate automated water pumps or external warning buzzers instantly.

Why Choose Soil Module Moisture Sensor for Smart Projects? The distinct advantage of this physical configuration is its dual-output flexibility, featuring both an Analog Output (AO) for precise percentage data logging and a Digital Output (DO) for direct hardware relay switching. Unlike closed sensor architectures, this open-source design allows you to track long-term dehydration curves on microcontrollers or use it as a standalone, standalone switch to drive low-voltage irrigation grids without needing any programming code at all.

This modular electronic component offers complete software cross-compatibility across all major testing environments. It interfaces cleanly with the popular Arduino IDE, NodeMCU ESP8266 platforms, Raspberry Pi terminals, and standard industrial microcontrollers. This deep platform accessibility grants you immediate entry into a global network of open-source automated watering libraries and wiring guides to dramatically shorten your prototyping or retail assembly schedules.

Technical Specifications:

• Product Component Classification: Soil Module Moisture Sensor Calibration Board & Dual Probe

• Core Comparator Integration: High-Performance LM393 Dual Differential Voltage IC

• Interface Output Support: Dual Configuration (Analog Output AO & Digital Output DO)

• Sensitivity Calibration Hub: Multi-turn Manual Trim Potentiometer Front Panel Dial

• Power Supply Voltage Rails: 3.3V DC up to 5V DC Input Compatibility

• Visual Signaling Indicators: On-board Power LED Indicator & Digital Switching LED Target

• Probe Corrosion Protection: Premium Electroplated Finish Surface Layout

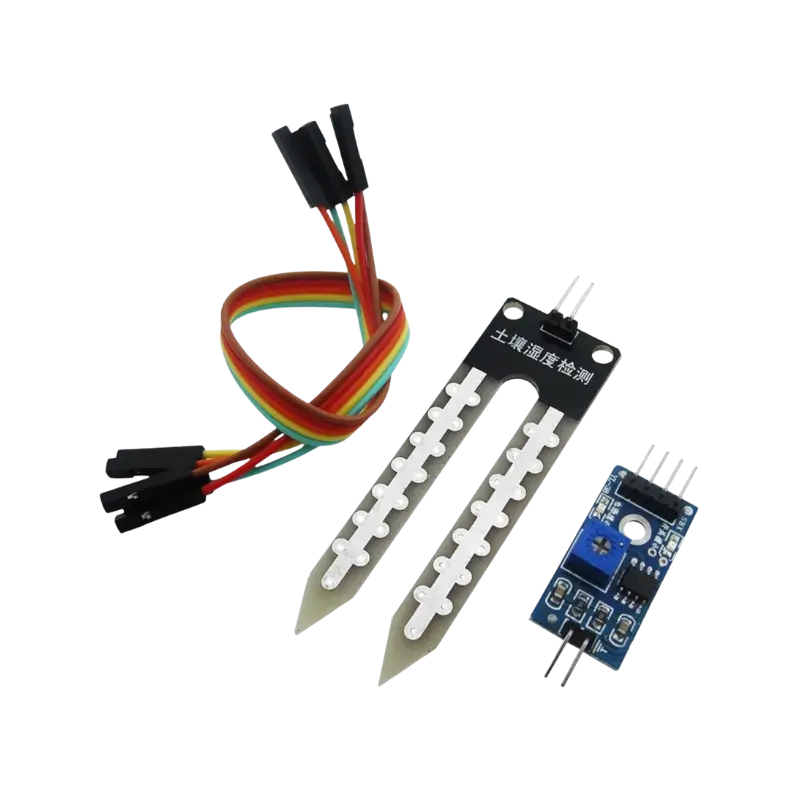

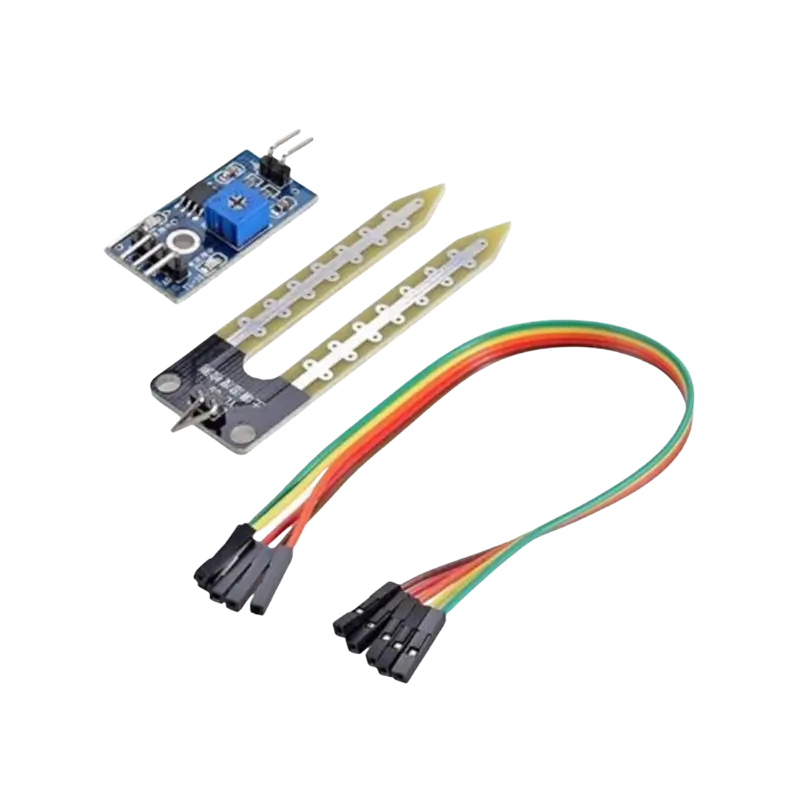

Package Includes:

• 1 x Soil Module Moisture Sensor External Ground Insertion Probe

• 1 x Signal Conditioning Logic Control Motherboard Unit

• 1 x Set of Multi-strand F-F Dupont Jumper Connecting Wires
