Product Overview

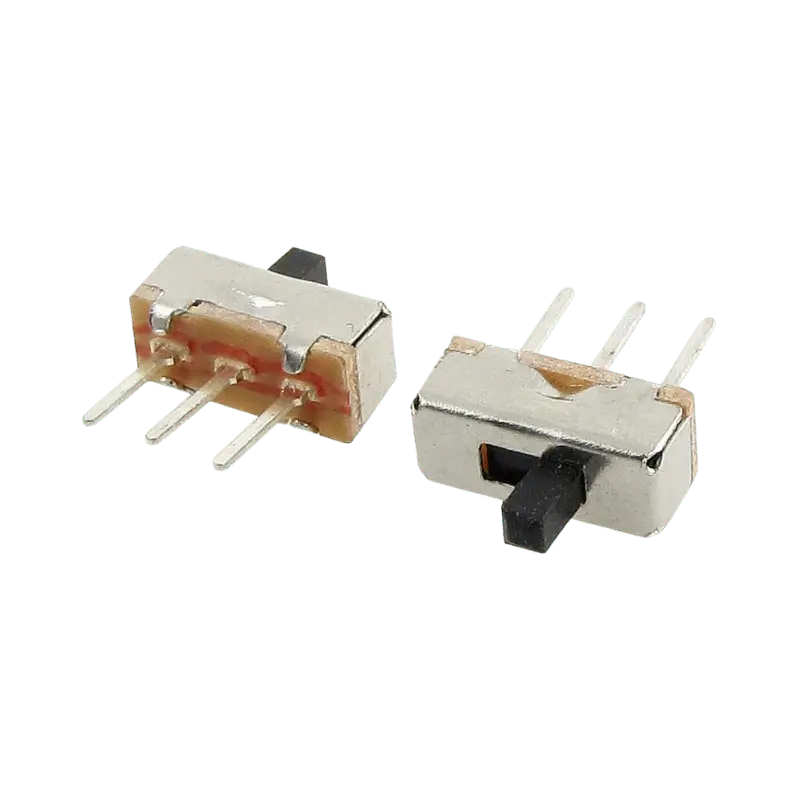

The Mini Slide Switch 3-Pin from Pro Tronix is a fundamental component for adding a manual power toggle to miniature electronic devices. Featuring a smooth sliding actuator, it provides a clear mechanical “lock” into position, preventing accidental toggling. While it features 3 pins (SPDT), it is most commonly used for ON/OFF functionality by utilizing the center pin and one side pin. Its lightweight and slim design makes it the standard choice for wearable tech, small toys, and DIY handheld gadgets.
Technical Specifications
| Feature | Specification |
| Circuit Type | SPDT (Used as SPST for ON/OFF) |
| Positions | 2 (ON – OFF) |
| Pins | 3-Pin (Through-hole PCB mount) |
| Voltage/Current Rating | 0.5A 50V DC (Standard Logic Level) |
| Actuator Type | Horizontal Slide |
| Material | Plastic Housing with Metal Frame |
| Supplier | Pro Tronix |
Key Features
Ultra-Compact Profile: Fits into the smallest enclosures where rocker or toggle switches are too bulky.
Breadboard Friendly: The pin spacing is compatible with standard 2.54mm pitch prototyping boards and breadboards.
Smooth Sliding Action: Pro Tronix ensures a reliable mechanical transition with distinct tactile feedback for each position.
Low Power Optimized: Designed specifically for low-voltage signal switching and battery-operated circuits.
Common Applications
Battery-Powered Projects: Ideal for turning on/off 9V or Li-Po powered Arduino/ESP32 projects.
Wearable Electronics: Used in smart jewelry or light-up clothing due to its thin profile.
Small Toys & Gadgets: Replacement switch for handheld games and remote controllers.
DIP Switch Alternative: Used as a mode selector on custom-printed circuit boards.
