TP4056 5V 1A Lithium Battery Charger Module Type C | Pro Tronix
35.00 EGP

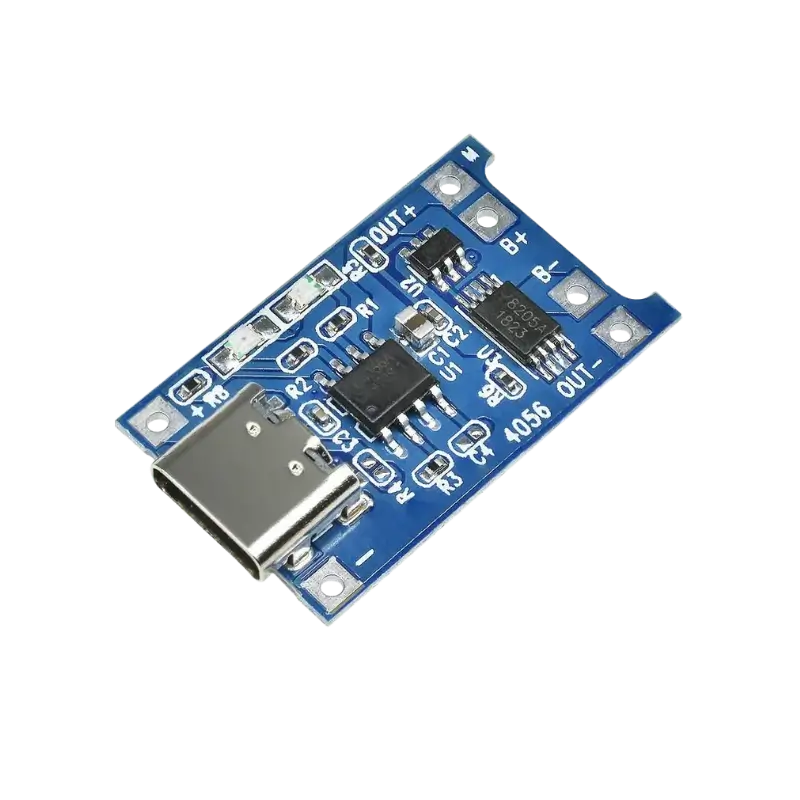

High-efficiency TP4056 lithium battery charging board featuring a modern Type-C USB interface and dual onboard protection circuits. Safely delivers a 1A charging current with automatic over-discharge and over-current cutoff, making it perfect for portable electronic projects and 18650 battery integration.
| Weight | 0.00 kg |
|---|
In stock
Product Description
A high-reliability 1A lithium battery charging board featuring integrated dual protection circuits and a modern Type-C USB port, ideal for power management and rechargeable battery setups in Arduino and ESP32 projects. Powered by the high-performance TP4056 linear charging IC, this compact module utilizes a constant-current/constant-voltage (CC/CV) charging profile to safely charge single-cell 3.7V Lithium-Ion or Lithium-Polymer batteries (such as 18650 cells). It is equipped with advanced DW01A and FS8205A protection ICs, which safeguard your cells against over-charging, over-discharging, and over-current short circuits. Featuring onboard dual LED status indicators and a simple parallel-wired terminal layout, this module allows you to simultaneously charge a battery and safely power your electronic load, providing an excellent all-in-one power solution for portable DIY gear.
Pinout / Layout Connections
The module breaks out its input power, battery cells, and system load connections via rugged solder pads alongside the primary USB port:
-
Type-C USB Port: Main input power gateway, accepts standard +5V DC from any USB-C cable or power brick.
-
IN+ / IN- Solder Pads: Alternative input power terminals for direct wiring to a 5V power supply or solar panel.
-
B+ / B- Solder Pads: Dedicated battery connection terminals. Connect B+ to the positive terminal of the 3.7V battery and B- to the negative terminal.
-
OUT+ / OUT- Solder Pads: Main system load output terminals. Connect these to your microcontroller, boost converter, or circuit power rail.
Applications
-
Portable Battery Power Banks: Perfect for building handheld DIY power banks, wireless testing gear, and portable electronic enclosures.
-
Rechargeable Robotics Supplies: Excellent for integrating safe, onboard recharging circuits into wheeled mobile rovers and battery-powered multi-sensor systems.
-
Solar-Powered Node Supplies: Ideal for pairing with low-voltage 5V solar panels to keep remote environmental sensor nodes continuously powered and recharged.
Compatibility
The TP4056 Type-C Charger Module functions as a universal hardware-level power manager, making it fully compatible with:
-
Standard 3.7V/4.2V Lithium-Ion and LiPo Cells (such as 18650, 14500, 21700, and flat pouch batteries).
-
Arduino, ESP32, and ESP8266 development boards (safely drives their input voltage lines via the OUT pads).
-
Raspberry Pi Pico and low-current 5V/3.3V microcontrollers.
Technical Specifications
| Parameter | Value / Specification |
| Main Charging IC | TP4056 Linear Lithium Battery Charger |
| Protection ICs | DW01A (Battery Protection) + FS8205A (Dual MOSFET Switch) |
| Input Power Voltage | DC 4.5 V to 5.5 V (Via Type-C USB or IN+/IN- pads) |
| Full Charge Voltage | DC 4.2 V ($\pm 1\%$) |
| Max Charging Current Output | 1.0 A (Can be adjusted by modifying the onboard Rprog resistor) |
| Battery Over-Discharge Protection | Cuts off load output when battery drops below DC 2.5 V |
| Battery Over-Current Protection | Cuts off load if output current exceeds 3.0 A |
| Onboard Status Indicators | Dual LEDs (Red = Charging, Blue/Green = Fully Charged) |
What’s in the Box
-
1 x TP4056 5V 1A Li-Battery Charger with Protection Module (Type-C USB Version).
Available now from Pro Tronix with guaranteed quality and fast delivery nationwide.
