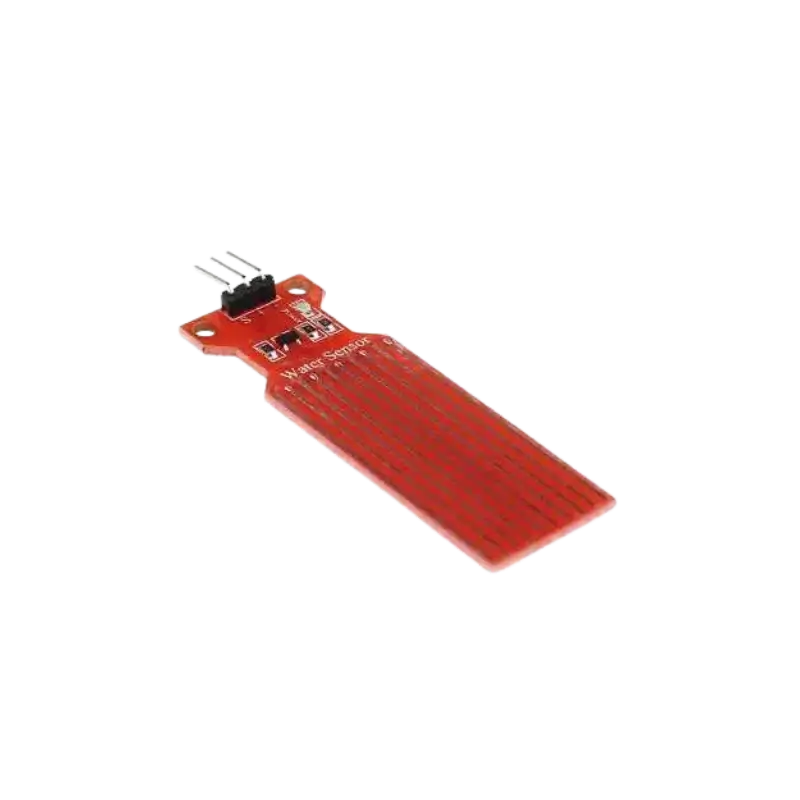

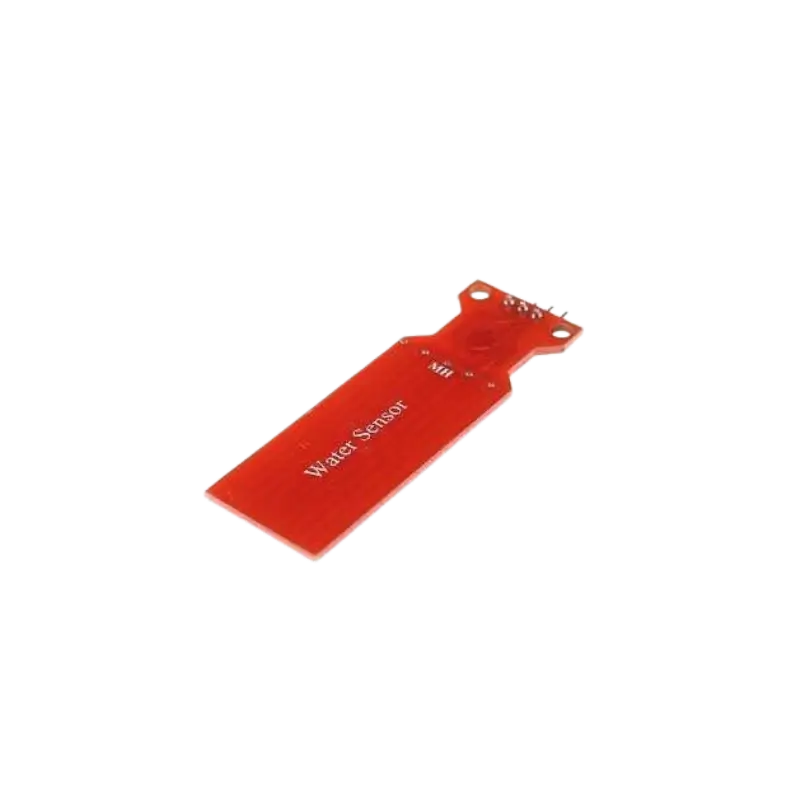

Water Level Sensor Module

Product description

Accelerate your precision fluid tracking and automated pump management systems with the high-sensitivity Water Level Sensor Module Liquid Depth Detector. In the expanding world of smart home infrastructure, automated aquarium control, and industrial tank telemetry, having an efficient sensor that tracks fluid volume in real-time is absolutely critical. This heavy-duty sensing probe is engineered to deliver highly accurate analog signals, providing an exceptional monitoring solution for students, environmental researchers, and hardware hobbyists alike.

Advanced Features of Water Level Sensor Module Liquid Depth Detector: The core performance functions via a series of parallel, exposed copper traces that act as a variable resistor matrix. When submerged, these conductive lines interact with the fluid, translating the immersion depth into a readable hardware signal; as the water level rises along the sensing traces, electrical conductivity increases, and the output voltage increases correspondingly. This simple yet highly effective physical mechanism allows for instant tracking of dynamic fluid boundary lines without moving mechanical parts.

Signal conditioning is managed by an integrated low-power transistor array designed to amplify the micro-current fluctuations across the sensing grid. The board translates these changes into a smooth, linear voltage output, making it exceptionally easy for a micro-control unit to process the raw readings into accurate percentage or millimeter depth metrics. It is an ideal layout for sump pump activation, emergency overflow detection, rain barrel monitoring, and custom laboratory fluid tests.

Why Choose Water Level Sensor Module Liquid Depth Detector for Smart Projects? The distinct advantage of this physical configuration is its ultra-low power consumption and streamlined three-pin interface, which makes deployment simple and highly energy-efficient. Unlike bulky mechanical float switches that can easily jam due to sediment or mineral buildup, this solid-state board features a low-profile, flat-panel design that slides easily into tight enclosures or narrow fluid paths, maximizing spatial efficiency in compact project housings.

This modular electronic component offers complete software cross-compatibility across all major testing environments. It interfaces cleanly with the popular Arduino IDE, NodeMCU ESP8266 platforms, Raspberry Pi terminals, and standard industrial microcontrollers. This deep platform accessibility grants you immediate entry into a global network of open-source fluid tracking libraries and calibration guides to dramatically shorten your prototyping or retail assembly schedules.

Technical Specifications:

• Product Component Classification: Water Level Sensor Module Liquid Depth Detector Board

• Core Sensing Architecture: Exposed Parallel Copper Trace Matrix

• Interface Pinout Profile: 3-Pin Configuration (VCC, GND, and Analog Output Analog Out)

• Operating Voltage Supply: 3V DC up to 5V DC Input Compatibility

• Operational Current Consumption: Extremely low rating under 20mA max load

• Effective Sensing Area: 40 mm in length by 16 mm in width of active trace layout

• Material Composition: High-durability FR4 double-sided fiberglass panel

• System Logic Voltage: 3.3V to 5V operating logic levels depending on input supply

Package Includes:

• 1 x Water Level Sensor Module Liquid Depth Detector Panel
