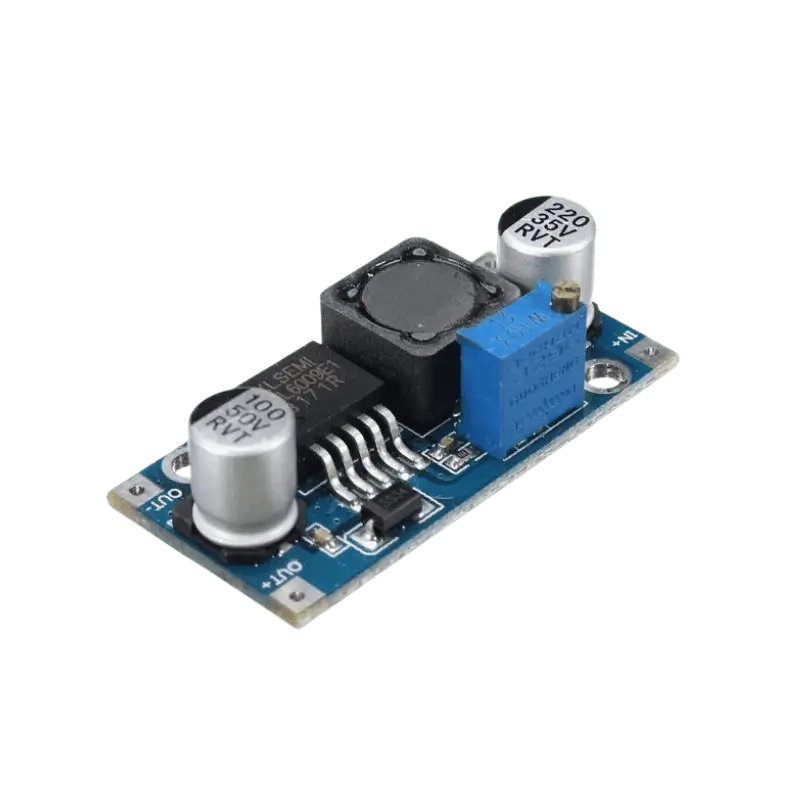

XL6009 DC-DC Adjustable Step-Up (Boost) Converter Module – 4A 35V
70.00 EGP
A high-performance DC-to-DC boost converter capable of stepping up lower input voltages to a higher output voltage. Ideal for battery-powered projects, DIY power supplies, and driving high-voltage LEDs or motors from a 5V or 12V source.
In stock
Product Overview
The XL6009 is a powerful 400KHz switching frequency boost module. It is the upgraded successor to the older LM2577, offering much higher efficiency and a built-in frequency compensation circuit. Whether you need to power a 24V device from a 12V battery or boost a 3.7V Li-ion battery to 5V/9V, this module provides stable and adjustable power.
Arduino & Power Wiring
-

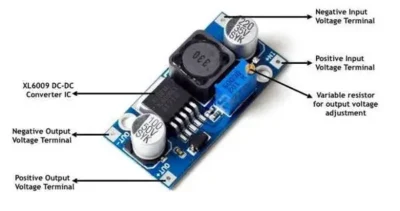

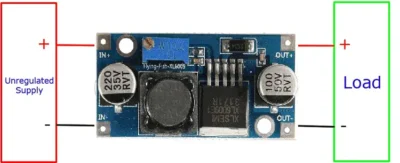

IN+: Input Positive (3V to 32V)
-
IN-: Input Negative (GND)
-
OUT+: Output Positive (5V to 35V)
-
OUT-: Output Negative (GND)
-
Adjustment: Turn the onboard Blue Potentiometer counter-clockwise to increase the output voltage.
Technical Specifications
| Feature | Specification |
| Input Range | 3V to 32V (Optimum range: 5V to 30V) |
| Output Range | 5V to 35V (Adjustable) |
| Switching Current | Max 4A |
| Efficiency | Up to 94% |
| Switching Frequency | 400 KHz |
| Output Ripple | 50mV (Higher voltage/current increases ripple) |
| Operating Temp | -40°C to +85°C |
Key Features
-
High Efficiency: Significantly better performance than linear regulators.
-
Non-Isolated Boost: Simple and reliable 4-terminal architecture.
-
Compact Design: Small footprint makes it easy to integrate into robot chassis or small enclosures.
-
Adjustable Output: Wide output range covers almost all common electronics voltages.
