Description

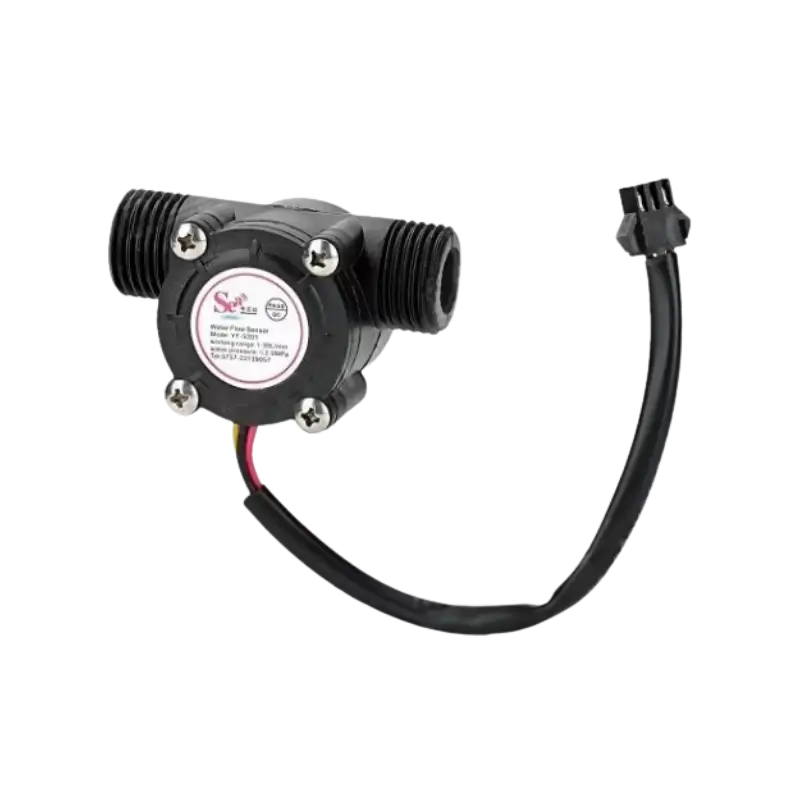

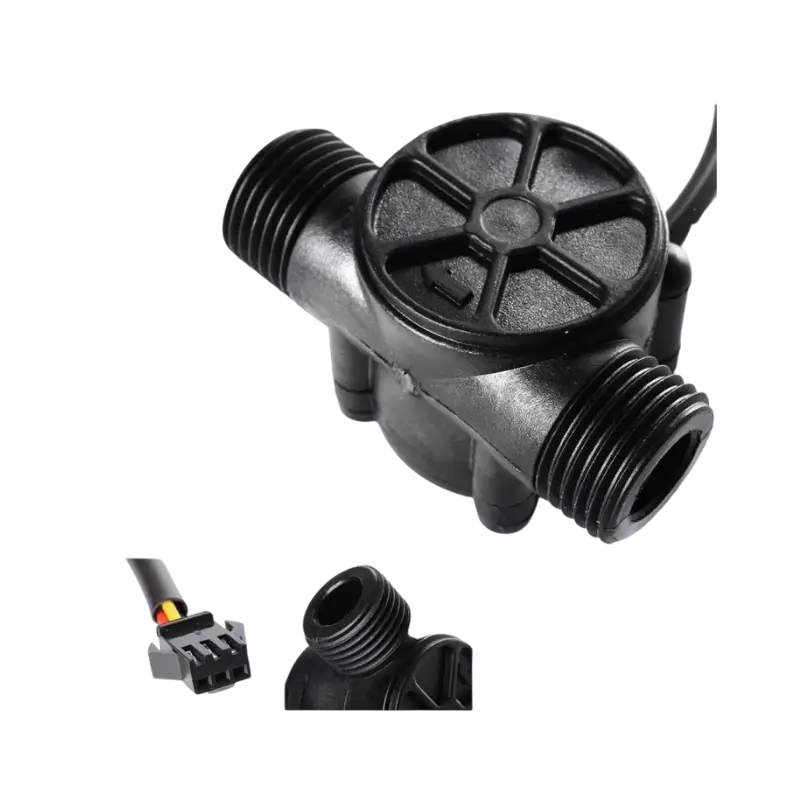

This is YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate – Black. This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There’s an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 millilitres.

Note this isn’t a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure, and sensor orientation. It will need careful calibration if better than 10% precision is required. However, it’s great for basic measurement tasks!

We have an example Arduino sketch(check the ATTACHMENTS tab) that is useful to quickly test the sensor; it will calculate the approximate flow of water in liters/hour. The pulse signal is a simple square wave so it’s quite easy to log and convert into liters per minute using the following formula.

Connection

Red wire: +5V Black wire: GND Yellow wire: PWM output

Features

• High Precision Tracking: Utilizes a reliable Hall effect sensor to output precise digital frequency pulses based on fluid velocity.

• Heavy Duty Build: Designed with a premium stainless steel pinwheel shaft inside a rugged, waterproof plastic housing to eliminate leaks and wear.

• Easy Threaded Installation: Features standard G1/2 inch straight pipe threads for seamless connection to standard plumbing fixtures and hoses.

• Low Current Operation: Highly efficient circuit design ensures low power draw, making it perfect for continuous monitoring networks.

• Broad Framework Integration: Interfaces seamlessly with popular development platforms including Arduino, ESP32, and Raspberry Pi.

Specifications

• Model: YF-S201.

• Thread Connection: G1/2″ (External Diameter approx. 20mm).

• Flow Rate Range: 1 to 30 Liters per Minute (L/min).

• Working Voltage: 5V to 18V DC.

• Output Signal: 5V TTL Digital Pulse (Frequency varies with flow rate).

• Maximum Water Pressure: Under 1.75 MPa.

• Pin Configuration: Red (VCC), Black (GND), Yellow (Pulse Signal Output).
