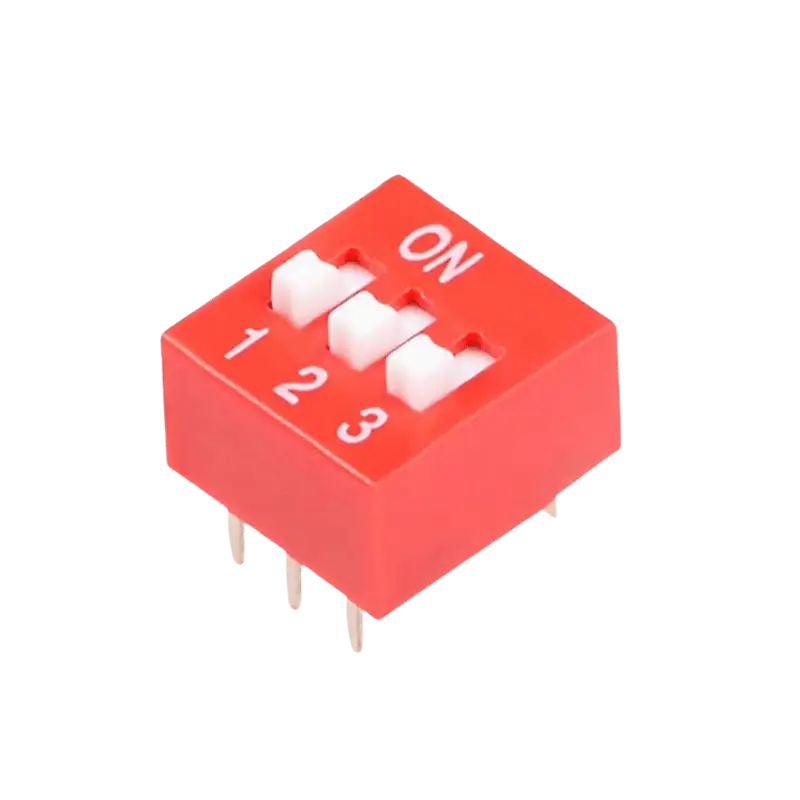

DIP Switch 3 Position

Detailed Product Description

At our electronics store, we prioritize stocking components that stand the test of time and environmental factors. The 3-way dip switch for PCB we offer is designed with a standard 2.54mm (0.1 inch) pitch. This specific measurement ensures that the 3-way dip switch for PCB is universally compatible with standard breadboards, perf-boards, and complex printed circuit board layouts. We understand that the right 3-way dip switch for PCB can be the critical difference between a failing intermittent connection and a successful, long-term deployment. This is why Pro Tronix stocks only the highest grade 3-way dip switch for PCB variants, each tested for mechanical endurance and electrical integrity.

The superior build quality of our 3-way dip switch for PCB sets it apart from generic alternatives found in any other electronics store. While many switches fail after only a few uses, this 3-way dip switch for PCB is rated for over 2,000 cycles. The housing of the 3-way dip switch for PCB is manufactured from UL94V-0 high-temperature thermoplastic. This premium material allows you to solder the 3-way dip switch for PCB onto your board without the risk of the plastic melting or warping under the intense heat of a soldering iron.

Features

• Standard DIP Size
• Ideal for Circuit Settings
• 3 x SPST Switches
• Each Switch Clearly Numbered
• RoHS Compliant

Technical Specifications

• Product Name: 3-way dip switch for PCB

• Number of Ways: 3-Position (Triple Toggle Switch)

• Pin Spacing: Standard 2.54mm (0.1 inch) for the 3-way dip switch for PCB

• Switching Rating: 25mA @ 24V DC

• Non-Switching Rating: 100mA @ 50V DC

• Insulation Resistance: 100MΩ Minimum for the 3-way dip switch for PCB

• Contact Material: Premium Gold-Plated (Ensures 3-way dip switch for PCB longevity)

• Body Material: High-Temperature UL94V-0 Thermoplastic

• Availability: Exclusively at Pro Tronix Electronics Store

Wiring Connection & Layout Guide

Integrating the 3-way dip switch for PCB into your project is a straightforward process. First, align the pins of the 3-way dip switch for PCB with your circuit board holes; the rows are spaced 7.62mm apart to fit standard DIP footprints. For a proper logic connection, connect one row of the 3-way dip switch for PCB to your common Ground (GND) rail. Then, connect the opposite pins of the 3-way dip switch for PCB to the digital input pins of your microcontroller, such as an Arduino, ESP32, or STM32. For the most stable results with your 3-way dip switch for PCB, we highly recommend enabling internal pull-up resistors or adding external 10kΩ resistors to prevent floating logic levels.

Our electronics store is dedicated to supporting your engineering journey. If you find yourself needing more than just a 3-way dip switch for PCB, we invite you to explore our extensive online catalog. From advanced microcontrollers to a wide variety of Switches and Buttons, the Pro Tronix team is here to provide every component you need to accompany your 3-way dip switch for PCB.

Datasheet

Download the 3-way dip switch for PCB Technical Datasheet PDF
