Product Overview

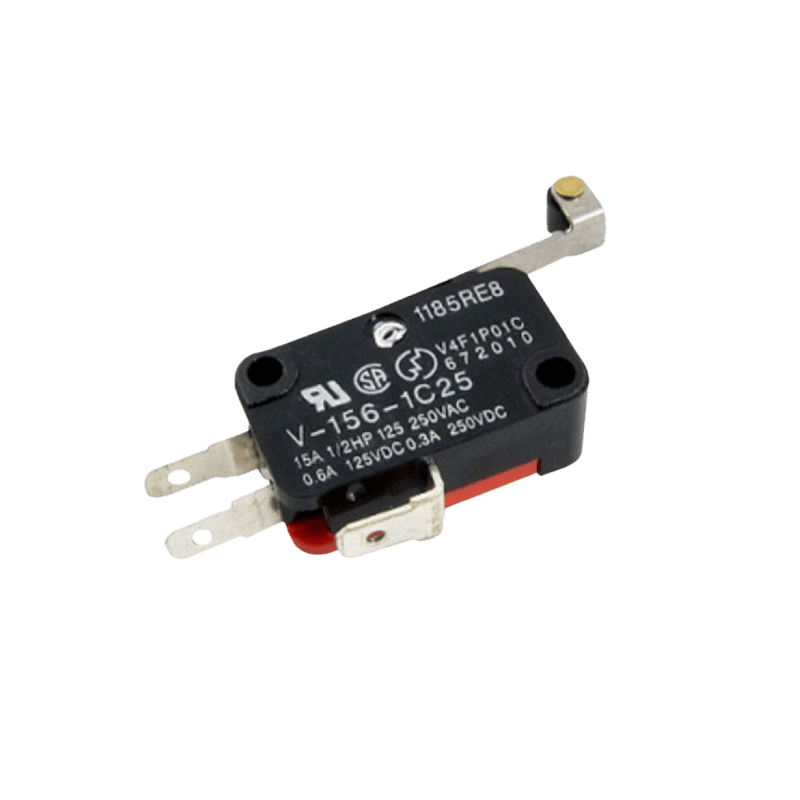

The Micro Limit Switch Long Hinge Roller 28mm from Pro Tronix combines the reach of a long lever with the smooth operation of a roller tip. The roller is specifically engineered to handle lateral force, allowing objects to slide over the switch without causing mechanical binding or damage. Featuring an SPDT (Single Pole Double Throw) configuration, this 3-pin switch provides maximum flexibility for your wiring needs, whether you require a “Normally Open” or “Normally Closed” signal.
Technical Specifications
| Feature | Specification |
| Actuator Type | 28mm Long Hinge Roller Lever |
| Circuit Type | SPDT (1 NO, 1 NC, 1 COM) |
| Action Type | Momentary (Self-Resetting) |
| Voltage Rating | 125V / 250V AC |
| Current Rating | 5A |
| Terminals | 3-Pin (Solder Lug) |
| Material | Industrial Grade Plastic & Stainless Steel Roller |
| Supplier | Pro Tronix |
Key Features
Smooth Roller Actuation: The built-in roller minimizes friction, ensuring a long lifespan for both the switch and the object triggering it.
Extended Reach: The 28mm hinge allows for detection over a larger range, making it ideal for non-precision mechanical alignments.
High Repeatability: Pro Tronix ensures a consistent snap-action response, providing reliable data for microcontrollers or industrial controllers.
Versatile Mounting: Features standard mounting holes compatible with most 3D printer frames, CNC kits, and DIY project enclosures.
Common Applications
Conveyor Systems: Counting items or detecting blockages on a moving line.
Cam Mechanisms: Sensing the position of rotating cams in automation.
3D Printing & CNC: High-durability end-stops for sliding axes.
Smart Home: Detecting the open/closed status of sliding windows or cabinets.
