Product Overview

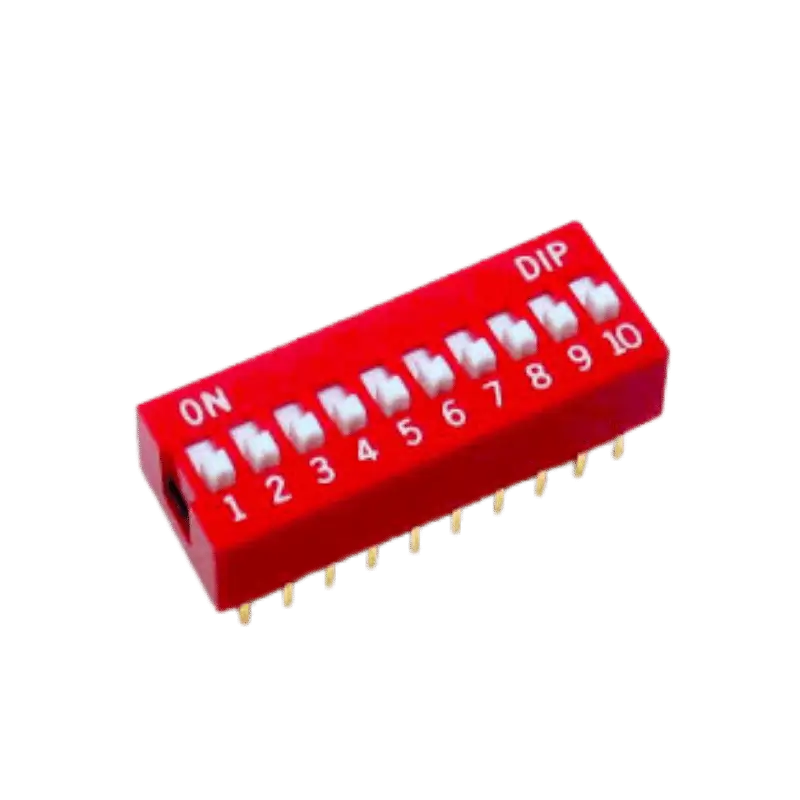

The dip switch 10 position from Pro Tronix is the ideal choice for high-complexity projects. With ten independent switches, you can configure up to 1,024 ($2^{10}$) unique binary combinations. This is widely used in industrial control systems, complex radio frequency (RF) channel selection, and setting unique identification addresses for large-scale sensor networks on Arduino or industrial PCBs.
Technical Specifications
| Feature | Specification |
| Number of Positions | 10 Positions |
| Circuit | SPST (Single Pole Single Throw) x 10 |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard |
| Contact Rating | 25mA @ 24V DC |
| Housing Material | Heat-resistant UL94V-0 Plastic |
| Supplier | Pro Tronix |
Key Features
Maximum Configuration: Provides 10 distinct channels for extensive hardware-level programming.
Durable Construction: Pro Tronix guarantees reliable electrical contact even with high-density switching.
Standard Integration: Designed with a 20-pin layout that fits perfectly into standard breadboards and professional PCB footprints.
Professional Finish: High-contrast markings for positions 1 through 10 and a clear “ON” label for precise adjustments.
