Product Overview

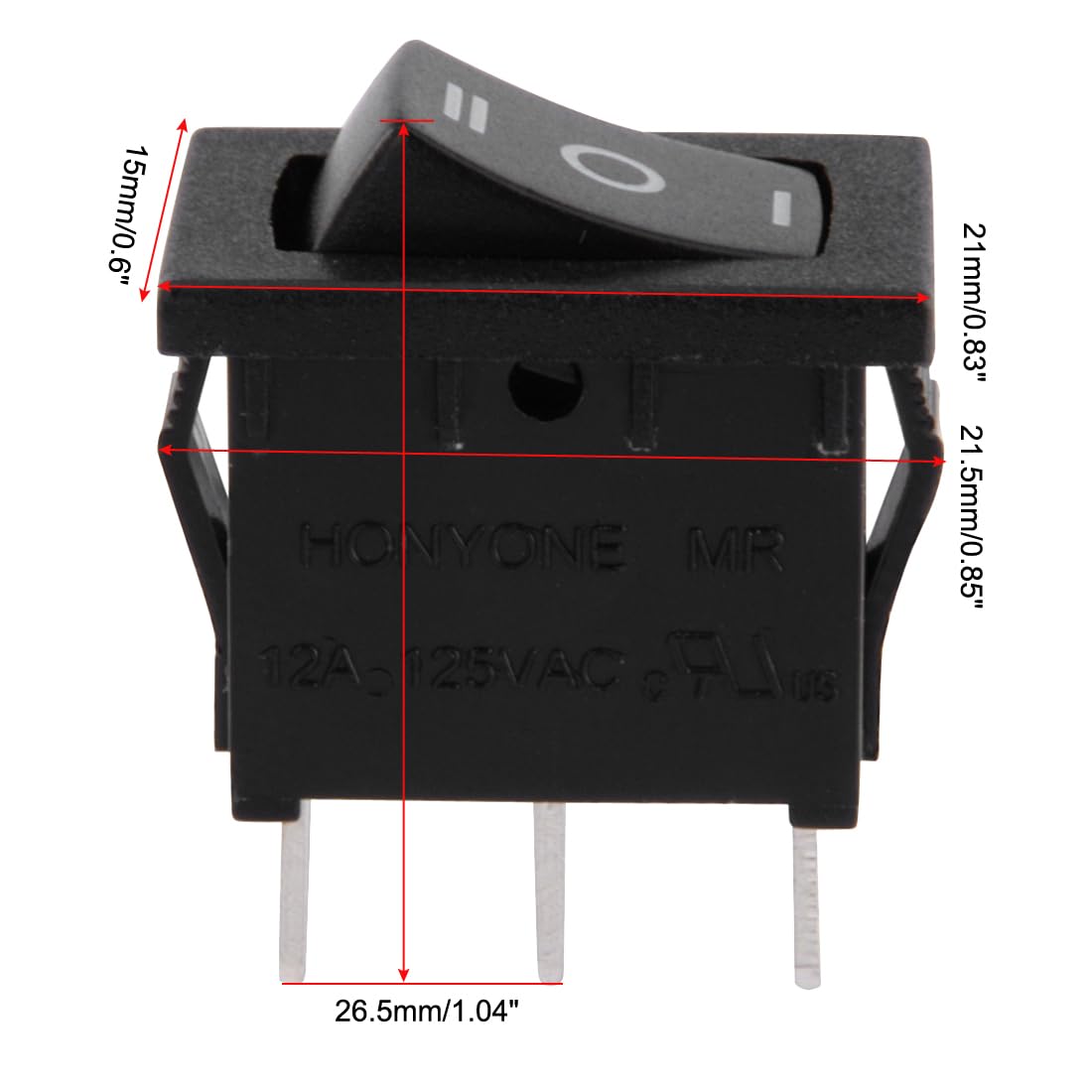

The Switch 3 pins Boat Rocker ON/OFF/ON from Pro Tronix is a compact yet powerful solution for managing dual-output systems. Unlike a simple on/off switch, this 3-position model allows you to direct power to one of two different paths (e.g., switching between two speeds of a fan or two different LED light strips). The central OFF position ensures a complete break in the circuit, preventing overlapping signals. Its standard snap-in design makes it perfect for panel mounting in both hobbyist and commercial applications.
Technical Specifications
| Feature | Specification |
| Circuit Type | SPDT (Single Pole Double Throw) |
| Positions | 3 (ON – OFF – ON) |
| Voltage/Current Rating | 6A 250V AC / 10A 125V AC |
| Terminals | 3-Pin (Silver-Plated Solder Lugs) |
| Mounting Type | Snap-in Panel Mount |
| Housing Material | Heat-Resistant Nylon |
| Supplier | Pro Tronix |
Key Features
Three-Way Functionality: Seamlessly switch between two separate loads or inputs using a single interface.
Positive Tactile Click: Pro Tronix ensures a firm mechanical feel so you can easily distinguish between the three positions by touch.
Space-Saving 3-Pin Design: Offers the functionality of a double-throw switch while maintaining a narrow footprint.
Efficient Conductivity: Built with high-quality internal contacts to minimize voltage drop and heat during operation.
Common Applications
Speed Control: Toggling between “Low” and “High” settings for small motors and blowers.
Source Selection: Switching an electronic device between “Battery” and “Adapter” power modes.
Lighting Systems: Selecting between different colors of LED strips or auxiliary lights.
Arduino Projects: Using a single switch to choose between two different code routines or modes.
