Product Description

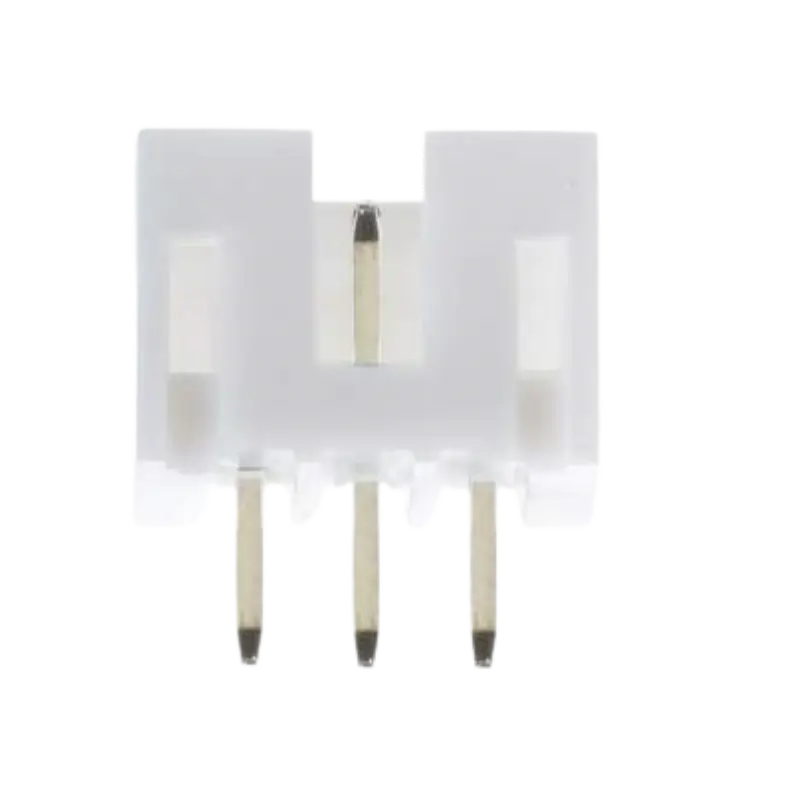

The JST PH 2.0mm 3-Pin Male Connector Header (B3B-PH-S) is a miniature through-hole mounting connector designed for secure, polarized wire-to-board connections in compact electronic devices. Featuring a 2.0mm pitch spacing and a robust shrouded design, it ensures reliable mating with matching JST PH female cable assemblies while preventing reverse polarity insertion.
Essential for microcontroller peripheral wiring, sensors, telemetry modules, and custom electronic harnesses, this right-angle or straight header solders cleanly onto printed circuit boards for durable three-conductor electrical connections.
⚠️ Polarity & Pinout Tip: Always verify your circuit’s pin assignment (such as VCC, Signal, and Ground) against your mating cable before powering on your devices to prevent accidental short circuits or reverse-voltage damage.
Technical & Architectural Highlights
-
Standard 2.0mm Pitch: Compact pin spacing designed for high-density modern electronics and miniature circuit layouts.
-
Polarized Shrouded Design: Plastic housing prevents incorrect mating orientation and provides mechanical stability against vibration.
-
Through-Hole Mounting: Robust PCB solder pins ensure a secure, permanent mechanical bond to your circuit board.
-
Low Contact Resistance: High-conductivity metal alloy pins guarantee reliable current flow for signal and low-power applications.
Technical Specifications
| Parameter | Value / Specification |
| Connector Series | JST PH Series |
| Pitch Spacing | 2.0 mm |
| Number of Pins | 3 Pins |
| Mounting Type | Through-Hole (PCB Header) |
| Gender | Male Header (Pins) |
| Current Rating | Up to 2A AC/DC (Max) |
| Voltage Rating | 250V AC/DC (Max) |
Applications
-
Sensor Hookups: Connecting 3-pin sensors such as ultrasonic distance modules, optical detectors, and temperature probes.
-
Telemetry & Communication: Interfacing serial, I2C, or analog signal lines between modular circuit boards.
-
Internal Wiring Harnesses: Organizing neat, dependable 3-wire connections inside custom electronics enclosures.
What’s in the Box
-
10 x JST PH 2.0mm 3-Pin Male Connector Headers (or pack quantity as specified).
All your electronics components, connectors, and prototyping accessories are available with fast shipping across Egypt from Pro Tronix!
Pinout Configuration
The 3-pin header provides direct electrical pathways:
| Pin Designation | Description |
| Pin 1 (VCC / Positive) | Positive Power Supply Line |
| Pin 2 (Signal / Data) | Data, Analog, or Control Signal Line |
| Pin 3 (GND / Negative) | Ground or Return Line |
