400-Point Solderless Breadboard
24.00 EGP
A versatile mid-sized prototyping platform with 400 tie-points. Featuring two full-length power rails and a high-quality solderless design, it is the perfect companion for Arduino Nano projects, sensor testing, and compact electronic builds.
In stock
Product Overview

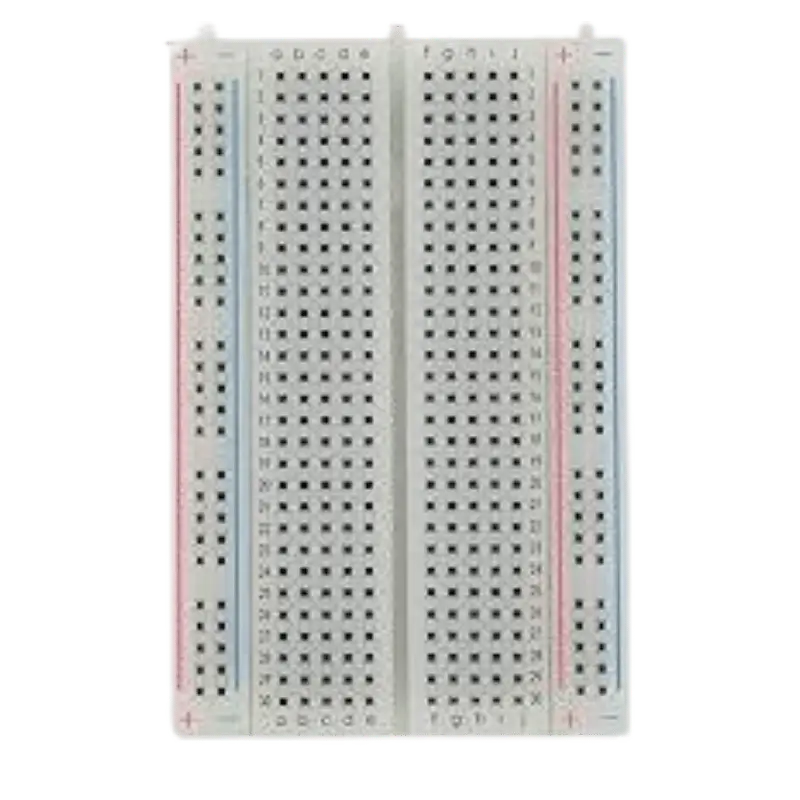

The 400-point breadboard (often called the “Half-Size” board) is a staple for every electronics lab. It provides enough room for a microcontroller and several supporting components without taking up too much desk space. The board features a standard double-strip layout for ICs and two dedicated power rails on the edges for organized voltage distribution.
Layout & Power Connectivity
-

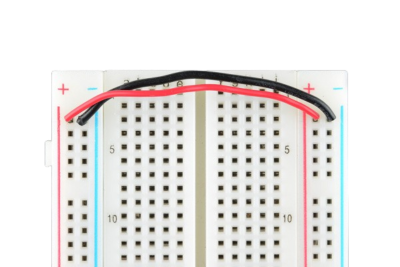

Dual Power Rails: Located on the sides, clearly marked with Red (+) and Blue (-) for VCC and GND.
-
Component Area: 30 columns of 5 connected holes on each side of the center divider.
-
IC Center Notch: Optimized to fit standard DIP ICs and microcontrollers like the Arduino Nano or ESP32-S series.
Technical Specifications
| Feature | Specification |
| Total Tie-Points | 400 Points (300 component + 100 power points) |
| Pitch (Spacing) | 0.1″ (2.54mm) – Universal Standard |
| Material | ABS Plastic with clear alphanumeric coordinates |
| Dimensions | 82mm x 55mm x 8.5mm |
| Contacts | Phosphor Bronze Nickel Plated for long life |
| Mounting | Self-Adhesive Foam Tape (Backing) |
Key Features
-
Compact Efficiency: Large enough for complex sensor circuits but small enough for portable prototypes.
-
Alphanumeric Grid: Clearly labeled rows and columns (A-J / 1-30) for easy circuit mapping and troubleshooting.
-
Modular Design: Side interlocking tabs allow you to snap multiple boards together to expand your workspace.
-
Strong Grip: Internal spring clips ensure solid connections with 20-29 AWG wires and components.
