Product Description

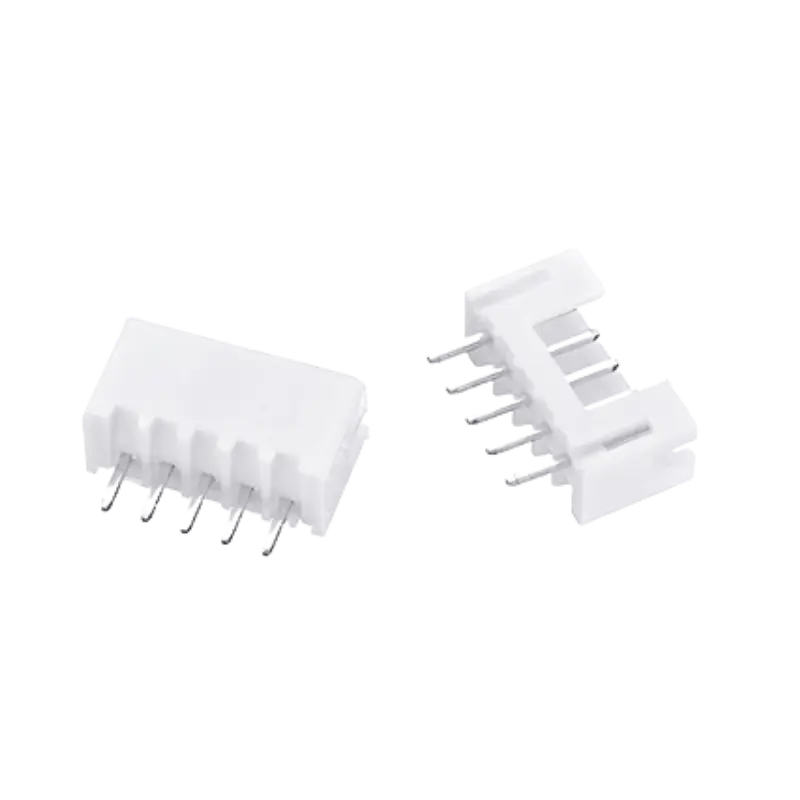

The JST XH 2.54mm 5-Pin Male Connector Header is a reliable through-hole mounting connector designed for secure, polarized wire-to-board connections in electronic projects and power circuits. Featuring a standard 2.54mm pitch spacing—matching typical breadboard and header pin spacing—and a robust shrouded housing, it ensures secure mating with matching JST XH female cable assemblies while preventing reverse polarity insertion.
Essential for multi-wire sensor arrays, custom ribbon harnesses, and peripheral module wiring, this header solders cleanly onto printed circuit boards for durable five-conductor electrical connections.
⚠️ Polarity & Pinout Tip: Always verify your circuit’s exact pin assignment (such as power, ground, and data signals) against your mating cable before powering on your devices to prevent accidental short circuits or reverse-voltage damage.
Technical & Architectural Highlights
-
Standard 2.54mm Pitch: Universal pin spacing compatible with standard prototyping layouts and jumper wiring.
-
Polarized Shrouded Design: Plastic housing prevents incorrect mating orientation and provides mechanical stability against vibration.
-
Through-Hole Mounting: Robust PCB solder pins ensure a secure, permanent mechanical bond to your circuit board.
-
Low Contact Resistance: High-conductivity metal alloy pins guarantee reliable current flow for power and signal applications.
Technical Specifications
| Parameter | Value / Specification |
| Connector Series | JST XH Series |
| Pitch Spacing | 2.54 mm |
| Number of Pins | 5 Pins |
| Mounting Type | Through-Hole (PCB Header) |
| Gender | Male Header (Pins) |
| Current Rating | Up to 3A AC/DC (Max) |
| Voltage Rating | 250V AC/DC (Max) |
Applications
-
Multi-Pin Sensor Modules: Interfacing complex sensors, displays, and breakout boards requiring five distinct lines.
-
Custom Wiring Harnesses: Organizing multi-conductor signal runs neatly inside custom electronics enclosures.
-
Microcontroller Peripherals: Hooking up custom communication and control interfaces.
What’s in the Box
-
10 x JST XH 2.54mm 5-Pin Male Connector Headers (or pack quantity as specified).
All your electronics components, connectors, and prototyping accessories are available with fast shipping across Egypt from Pro Tronix!
Pinout Configuration
The 5-pin header provides direct electrical pathways:
| Pin Designation | Description |
| Pin 1 | Power or Signal Line 1 |
| Pin 2 | Power or Signal Line 2 |
| Pin 3 | Power or Signal Line 3 |
| Pin 4 | Power or Signal Line 4 |
| Pin 5 | Ground or Return Line 5 |
