HX1838 VS1838B IR Infrared Receiver Sensor Module with Cable | Pro Tronix
Original price was: 60.00 EGP.55.00 EGPCurrent price is: 55.00 EGP.

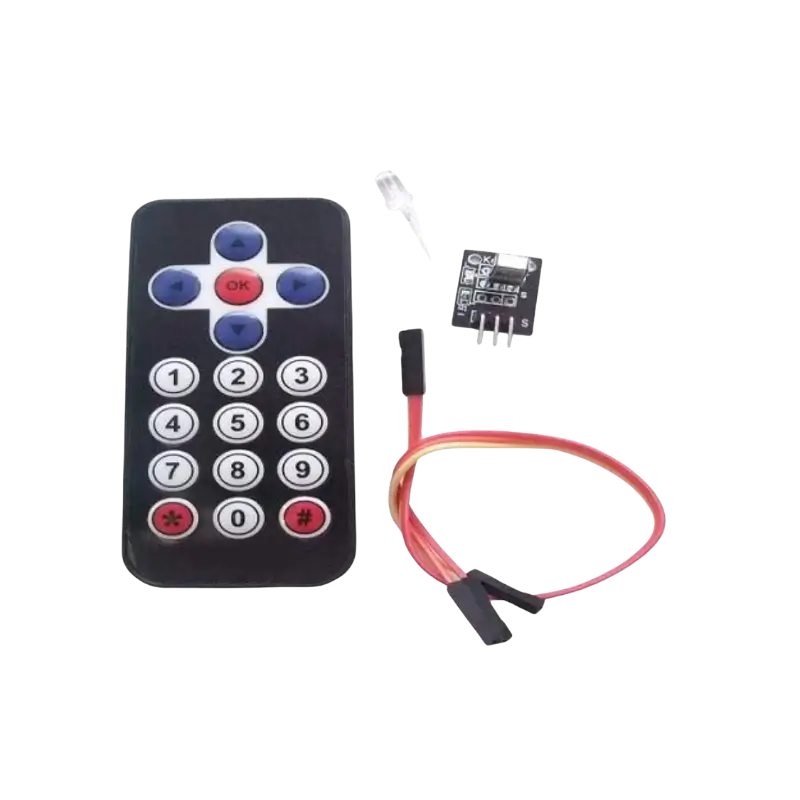

High-sensitivity HX1838 (VS1838B) 38kHz infrared receiver module. Operating on a wide 2.7V to 5.5V DC range, this module features built-in ambient light filtering, an onboard status indicator LED, and a 3-pin interface. The perfect choice for adding wireless remote control capabilities to your Arduino, ESP32, and Raspberry Pi projects.
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Product Description
The HX1838 (often featuring the high-performance VS1838B sensor) is a miniaturized infrared (IR) receiver module designed for wireless remote control applications. This module consists of a high-speed, high-sensitivity PIN photodiode and a specialized preamplifier IC integrated onto a single compact PCB. It is designed to receive and filter modulated IR signals at the industry-standard carrier frequency of 38 kHz, making it highly immune to ambient light interference from household lamps and sunlight.
Mounted on a tiny breakout board, this module includes an onboard status indicator LED that flashes briefly when an IR signal is detected, making debugging your remote codes incredibly straightforward. With its simple 3-pin interface, it connects directly to any microcontroller digital input pin, allowing you to easily add wireless remote control capabilities to your DIY home automation projects, smart appliances, or robotics.
⚠️ Receiver Placement Note: For optimal range and reliable signal decoding, ensure the metal-shielded dome of the sensor is pointing towards your IR remote’s line of sight. Avoid placing the receiver directly behind thick, non-IR-transparent plastics or near high-frequency fluorescent lighting, which can occasionally desensitize the sensor.

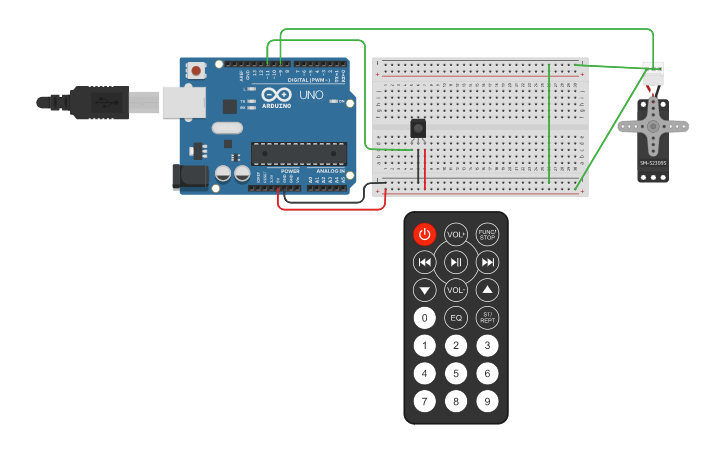

Pinout / Layout Connections
The module breaks out a straightforward 3-pin interface:
-
OUT (Signal): Digital output pin. Connect to any digital input pin on your microcontroller (e.g., Pin 11 on an Arduino Uno).
-
GND: Connect to your system’s common ground (0V).
-
VCC: Power supply input. Connect to 3.3V or 5V DC.
Applications
-
IR Remote Control Systems: Controlling home appliances, smart lights, and relays wirelessly using standard TV or DVD remotes.
-
Robotics Navigation: Designing simple obstacle detection grids or beacon-following systems for mobile robots.
-
Interactive Media Displays: Utilizing a handheld IR remote to change slides, adjust volume, or toggle modes on computer-driven kiosks.
Technical Specifications
| Parameter | Value / Specification |
| Carrier Frequency | 38 kHz (Standard for most consumer remotes) |
| Operating Voltage | 2.7V to 5.5V DC (3.3V and 5V compatible) |
| Current Consumption | 0.35mA typical (highly energy efficient) |
| Receiving Distance | Up to 15 meters (depending on transmitter power and alignment) |
| Reception Angle | +/- 45 Degrees |
| Output Logic | Active Low (outputs 0V when 38 kHz carrier is detected, VCC when idle) |
| Onboard Features | Red power/signal status LED |
| Dimensions | 20mm x 15mm |
