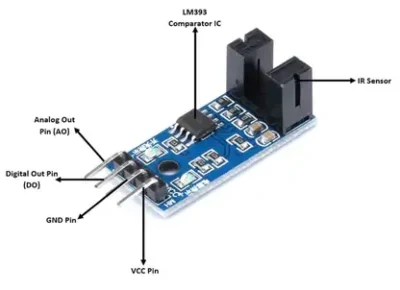

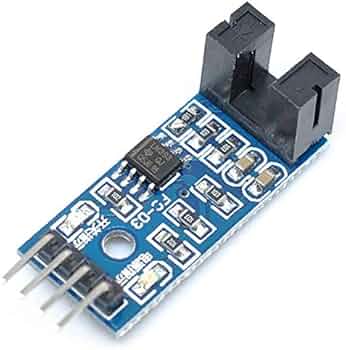

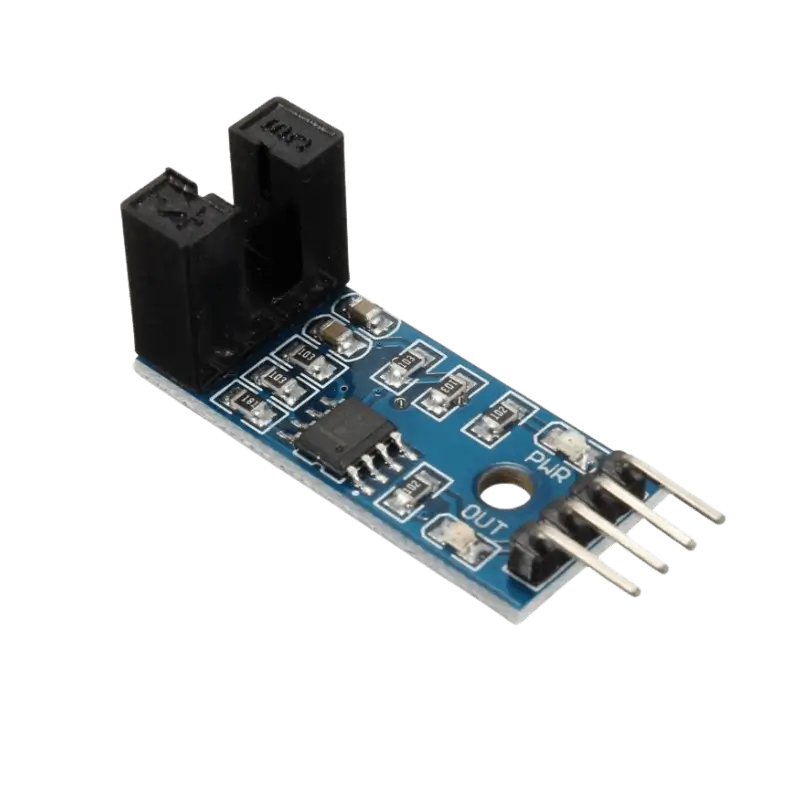

“The LM393 Photoelectric Sensor is an essential module for robotics and industrial automation. It uses a 5mm wide slot to house an infrared transmitter and receiver. When an object passes through the slot and breaks the light beam, the module output changes state. This makes it perfect for measuring motor speed (RPM) or counting objects on a conveyor belt.
Technical Specifications:
Working Voltage: 3.3V to 5V.
Slot Width: 5mm.
Output Type: Digital (0 or 1) and Analog.
Comparator Chip: LM393 (Wide voltage range).
PCB Size: 3.2cm x 1.4cm.
Key Features:
Slot Width: 5mm – fits most encoder disks and small mechanical parts.
Output Signal: Features both Digital (DO) and Analog (AO) outputs.
Stable Comparator: Equipped with the LM393 chip for noise-free switching.
Indicator LEDs: Built-in power indicator and signal output status LED.
Easy Mounting: Includes a fixed bolt hole for easy installation on robot chassis.”
