Infrared Obstacle Avoidance Sensor Module
40.00 EGP
Compact active infrared obstacle avoidance sensor module. Features an adjustable detection range via an onboard potentiometer and a simple digital TTL output, ideal for DIY robotics and non-contact proximity switching.
| Weight | 0.00 kg |
|---|
In stock
Product Description

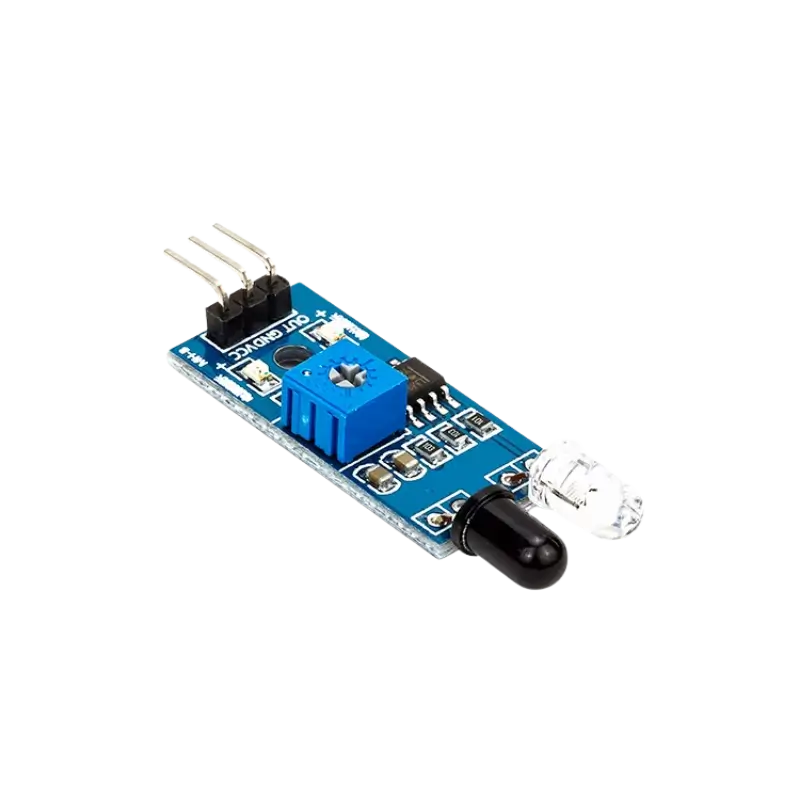

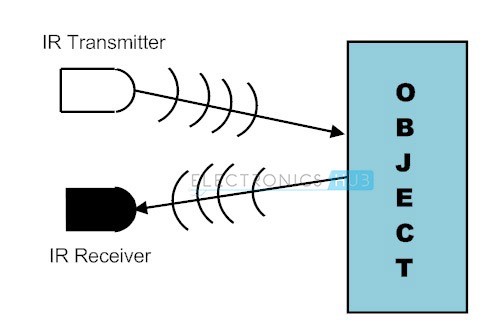

An active infrared obstacle avoidance sensor module with an adjustable detection range, ideal for distance monitoring and robotic tracking in Arduino and ESP32 projects. This compact module features an onboard infrared transmitter and receiver pair that emits a localized beam; when an obstacle interrupts this beam, the light reflects back into the receiver, pulling the digital output pin low. It includes an onboard multi-turn potentiometer trimmer that allows developers to fine-tune the detection sensitivity to perfectly match surrounding environmental light conditions. Engineered with a simple layout, it eliminates complex setup procedures, enabling students and engineers to rapidly deploy non-contact proximity detection on mobile platforms.

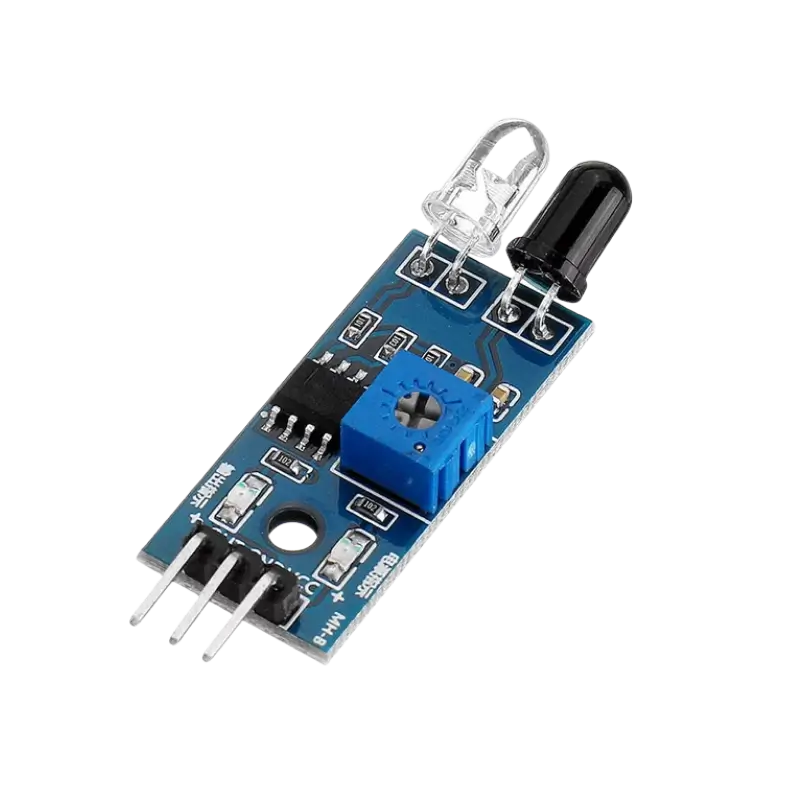

Pinout / Layout Connections
The module breaks out its tracking interface via a straightforward male header connection:
-
VCC Pin: Connects to the +3.3V to +5V DC positive power supply line.
-
GND Pin: Connects to the common ground (0V) reference.
-
OUT Pin: The digital output signal terminal. It outputs a HIGH logic level during clear paths and switches to a LOW logic level when an obstacle is detected.
Circuit Diagram of IR Sensor With Arduino
Features:
- Easy to assemble and use
- Onboard detection indication
- The effective distance range of 2cm to 80cm
- A preset knob to fine-tune the distance range
- If there is an obstacle, the indicator lights on the circuit board.
Applications
-
Obstacle Avoidance Robots: Perfect for smart automated rovers, maze-solving vehicles, and wheeled robotics platforms needing real-time wall detection.
-
Line Production Counters: Excellent for counting objects moving across automated assembly lines or sensing cup placement mechanisms.
-
Touchless Smart Switches: Ideal for low-profile proximity triggers, automated sanitary equipment, and non-contact limit switches.
Compatibility
The IR Obstacle Avoidance Sensor operates smoothly across variable digital logic levels, making it fully compatible with:
-
Arduino Board Series (Uno, Mega, Nano, Pro Micro)
-
ESP32 and ESP8266 boards (Compatible with native 3.3V digital input lines)
-
Raspberry Pi and Raspberry Pi Pico
-
Standard 5V/3.3V Microcontrollers
Technical Specifications
| Parameter | Value / Specification |
| Product Type | Active Diffuse Reflective IR Sensor Module |
| Operating Voltage | DC 3.3 V to 5.0 V |
| Detection Range | 2 cm to 30 cm (Adjustable via onboard potentiometer) |
| Detection Angle | ~35° Cone |
| Output Type | Digital TTL Signal (LOW when obstacle is present, HIGH when clear) |
| Current Consumption | ~20 mA |
| Onboard Indicators | Dual LEDs (Power Indicator LED + Obstacle Trigger LED) |
What’s in the Box
-
1 x Infrared Obstacle Avoidance Sensor Module.
