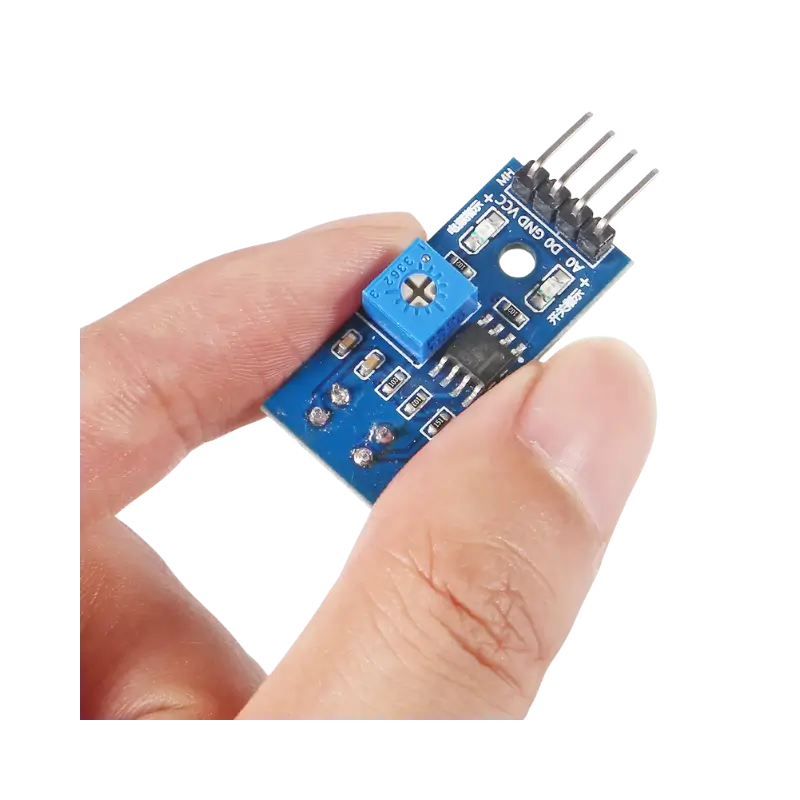

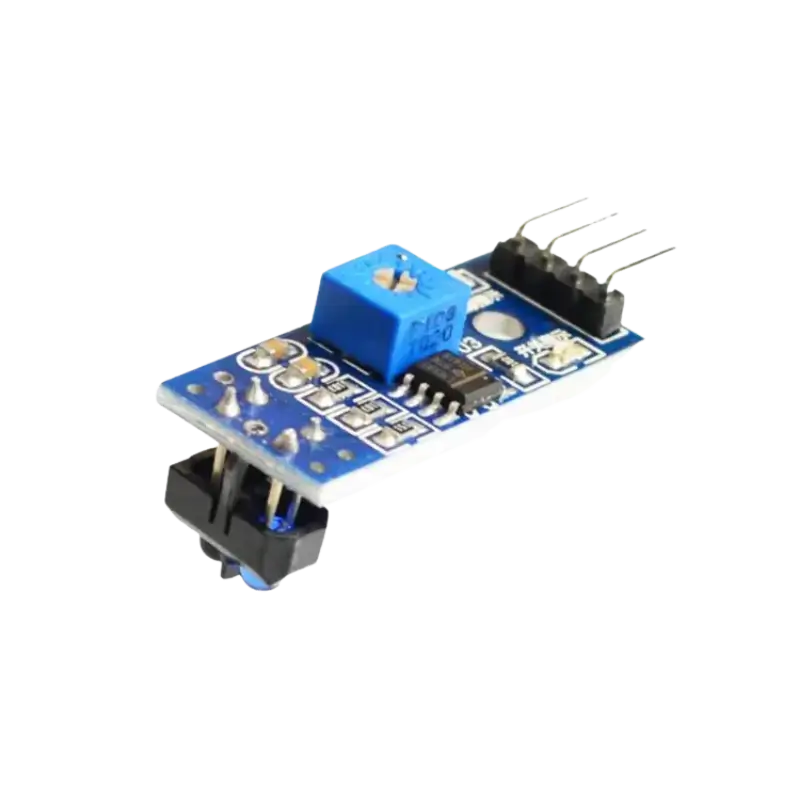

TCRT5000 IR Tracking Sensor Module

Description

Build precise line-following robots and obstacle detection systems with the highly sensitive TCRT5000 IR Tracking Sensor Module. This premium electronic module combines an infrared emitting diode and an infrared phototransistor into a single compact housing, working effectively to measure surface reflectivity. It is widely used in smart cars, manufacturing conveyor belt counters, and auto-sorting systems because it perfectly distinguishes between black lines and white backgrounds. Operating on a flexible 3.3V to 5V circuit, it provides both a clean analog output (for tracking gradient grayscale shifts) and a digital output with an adjustable onboard potentiometer threshold for immediate binary signaling. You can easily connect this module to your favorite microcontroller platform. To build your next autonomous vehicle or robotic navigation project, check out our compatible Arduino development boards.

Features

• Integrated IR Reflection Optical Link: Combines a high-output infrared emitter and sensitive phototransistor to track surface reflectance anomalies.

• Dual Output Mode System: Equipped with an analog voltage pin for detailed reflectivity analysis and a digital switching pin for rapid high/low logic detection.

• Onboard Calibration Potentiometer: Built-in multi-turn trim potentiometer allows for quick and accurate tuning of the digital detection distance threshold.

• Schmitt Trigger Noise Clean: Utilizes an onboard LM393 comparator integrated circuit to deliver clean, bounce-free digital output square waves.

• Pre-Drilled Mounting Footprint: Features a structural mechanical mounting hole to ensure swift and stable positioning onto robotic chassis platforms.

Specifications

• Model Component: TCRT5000 Sensor Node.

• Operating Voltage: 3.3V to 5V DC.

• Comparator IC: LM393 Dual Differential Comparator.

• Optimal Detection Distance: 1mm to 25mm.

• Analog Output (A0): 0V to VCC voltage relative to the distance and color reflectivity of the target object.

• Digital Output (D0): TTL digital toggle state (0 and 1).

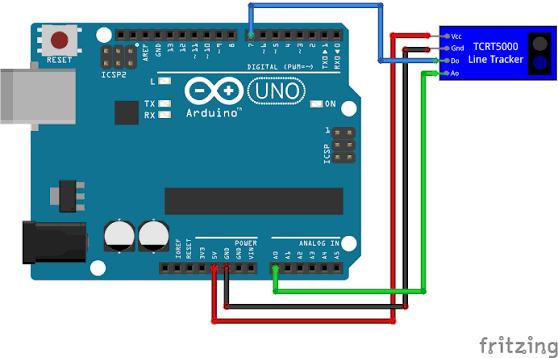

• Circuit Pinout: VCC, GND, DO (Digital Output), AO (Analog Output).
