Product Description

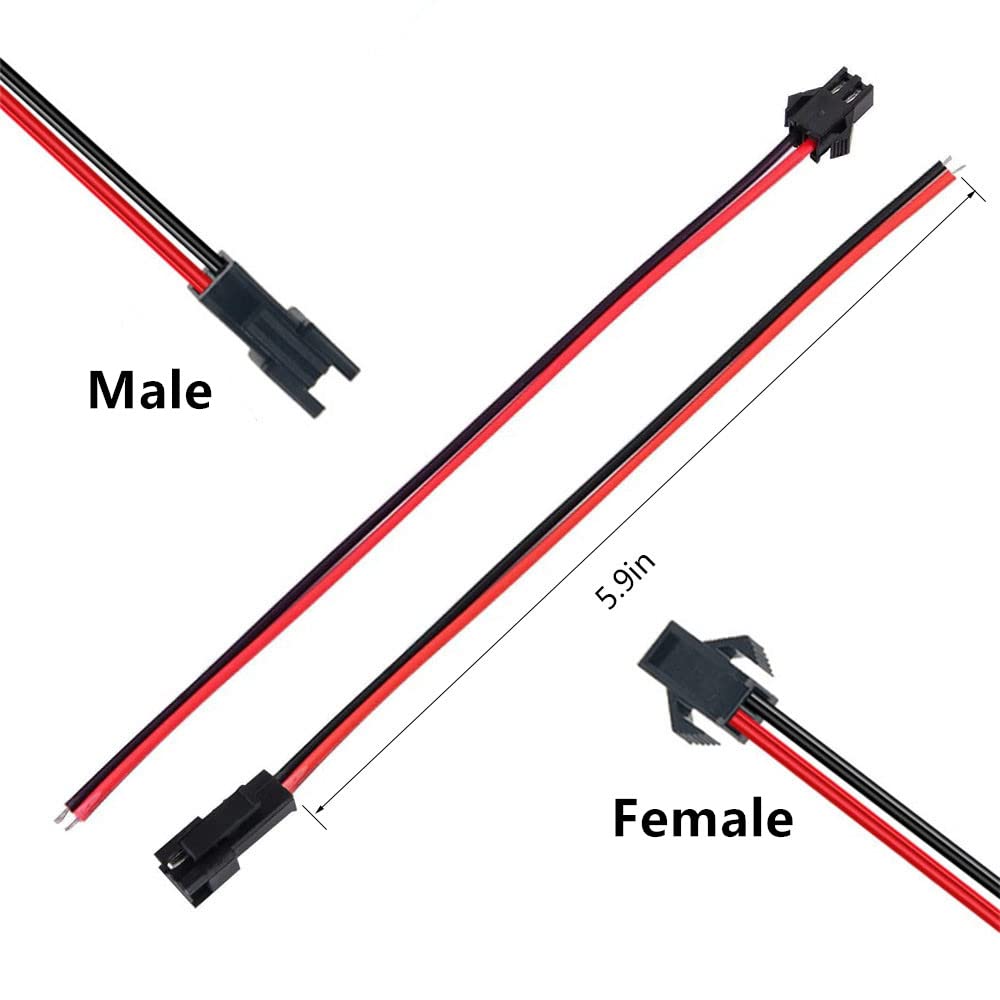

The SM Cable 22AWG 15cm 2-Pin Male & Female Pair is a convenient, pre-wired connector set designed for secure, polarized low-voltage power and signal connections. Featuring durable 22AWG multi-stranded copper wire and locking latch mechanisms, this matched pair ensures reliable electrical contact and prevents accidental disconnection in vibrant or mobile setups.
Essential for LED strip installations, RC models, custom wiring harnesses, and low-voltage DC power lines, this cable set comes pre-stripped and ready for fast soldering or terminal block integration.
বাহির Polarity & Wiring Tip: Always match the positive and negative wire colors when splicing or connecting your circuits to prevent accidental reverse-voltage damage to your connected devices.
Technical & Architectural Highlights
Secure Locking Latch: Integrated latch mechanism ensures the male and female plugs stay firmly locked together even under vibration.
Thick 22AWG Copper Wire: Low-resistance multi-stranded wire capable of handling higher current loads safely for lighting and power applications.
Pre-Stripped Ends: Cable ends are stripped and pre-tinned for fast, effortless soldering and connection.
Polarized Design: Molded plastic connectors prevent incorrect reversal during mating.
Technical Specifications
| Parameter | Value / Specification |
| Product Type | SM 2-Pin Connector Cable Pair |
| Wire Gauge | 22 AWG |
| Cable Length | 15 cm per side (approx. 30 cm total when mated) |
| Number of Pins | 2 Pins |
| Connector Gender | 1 x Male Plug & 1 x Female Receptacle Pair |
| Current Rating | Up to 3A DC (Recommended) |
Applications
LED Strip Light Wiring: Connecting single-color LED strips, controllers, and power supplies securely.
RC Models & Battery Leads: Quick-disconnect wiring for small electronic projects, fans, and auxiliary power lines.
Custom Enclosure Wiring: Creating quick-disconnect points between modular sections of electronic builds.
What’s in the Box
1 x SM Cable 22AWG 15cm 2-Pin Male Connector with Wire.
1 x SM Cable 22AWG 15cm 2-Pin Female Connector with Wire.
All your electronics components, connectors, and prototyping accessories are available with fast shipping across Egypt from Pro Tronix!
Pinout Configuration
The 2-wire paired cable provides clear pathways:
| Wire Designation | Description |
| Wire 1 (Positive / Red) | Positive Power or Signal Line |
| Wire 2 (Negative / Black) | Ground or Return Line |
