JST-XH-2.54-4pin
10.00 EGP

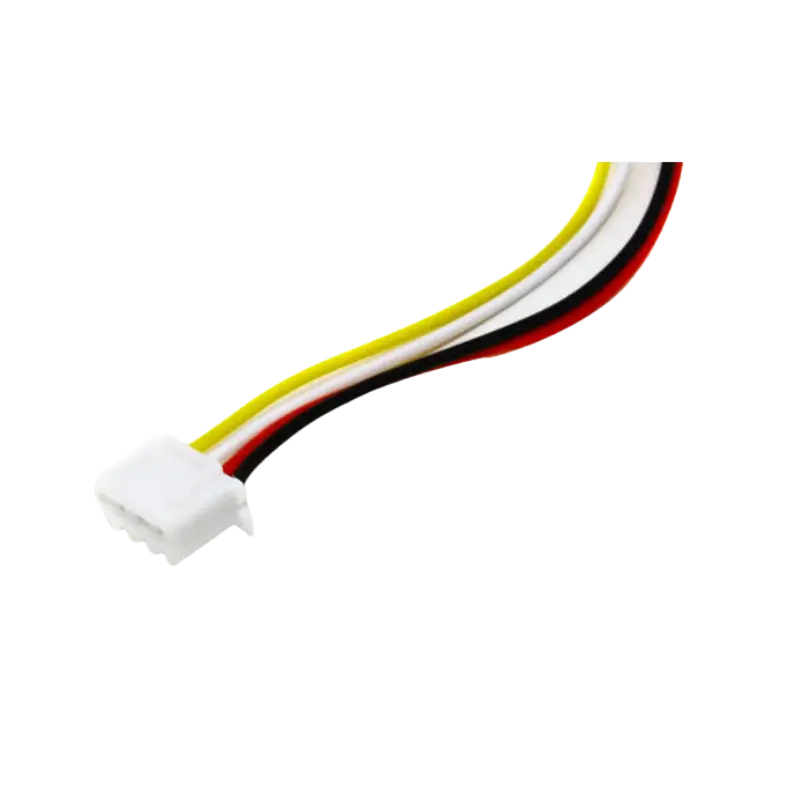

JST XH 2.54mm 4-pin female connector with 20cm pre-crimped wires. Ready-to-use cable harness for stepper motors, battery packs, and electronic peripherals!
| Weight | 0.00 kg |
|---|
In stock
Product Description
The JST XH 2.54mm 4-Pin Female Connector Set with 20cm Wire is a convenient, pre-crimped cable assembly designed for instant, reliable wire-to-board connections in electronics and prototyping projects. Featuring a standard 2.54mm pitch female housing paired with four flexible 20cm insulated wires, it eliminates the need for tedious manual crimping and soldering during assembly.
Essential for wiring Nema 17 stepper motors, multi-cell battery balance leads, and custom peripheral modules, this cable harness plugs securely into standard JST XH male headers for dependable power and signal transmission.
⚠️ Polarity & Wiring Tip: Always verify your circuit’s pin assignment and color-code alignment against your target PCB header before plugging in power or signal lines to prevent reverse-voltage damage.
Technical & Architectural Highlights
-
Pre-Crimped & Ready to Use: Factory-crimped female terminals inside a durable plastic housing save valuable setup and preparation time.
-
Standard 2.54mm Pitch: Perfectly spaced to mate securely with standard JST XH male PCB headers and pin connectors.
-
Flexible 20cm Leads: Multi-strand insulated wires provide ample length for routing connections cleanly inside enclosures and chassis.
-
Reliable Contact Pressure: Precision metal spring terminals ensure low contact resistance and secure mechanical retention.
Technical Specifications
| Parameter | Value / Specification |
| Connector Series | JST XH Series |
| Pitch Spacing | 2.54 mm |
| Number of Pins / Wires | 4 Pins |
| Cable Length | 20 cm (approx.) |
| Connector Gender | Female Housing with Crimp Pins |
| Wire Type | Multi-Stranded Copper with PVC Insulation |
Applications
-
Stepper Motor Cabling: Extending or replacing wiring harnesses for 4-pin Nema 17 stepper motors on 3D printers and CNC machines.
-
Battery Balance Connections: Hooking up 3S/4S multi-cell lithium battery packs to chargers and monitoring circuits.
-
Peripheral Hookups: Interfacing 4-pin sensors, displays, and custom modules to microcontroller boards.
Pinout Configuration
The 4-wire pigtail assembly provides standard color-coded pathways:
| Wire / Pin Designation | Description |
| Wire 1 | Signal or Power Line 1 |
| Wire 2 | Signal or Power Line 2 |
| Wire 3 | Signal or Power Line 3 |
| Wire 4 | Ground or Return Line 4 |
What’s in the Box
-
5 x JST XH 2.54mm 4-Pin Female Connectors with 20cm Wires (or pack quantity as specified).
