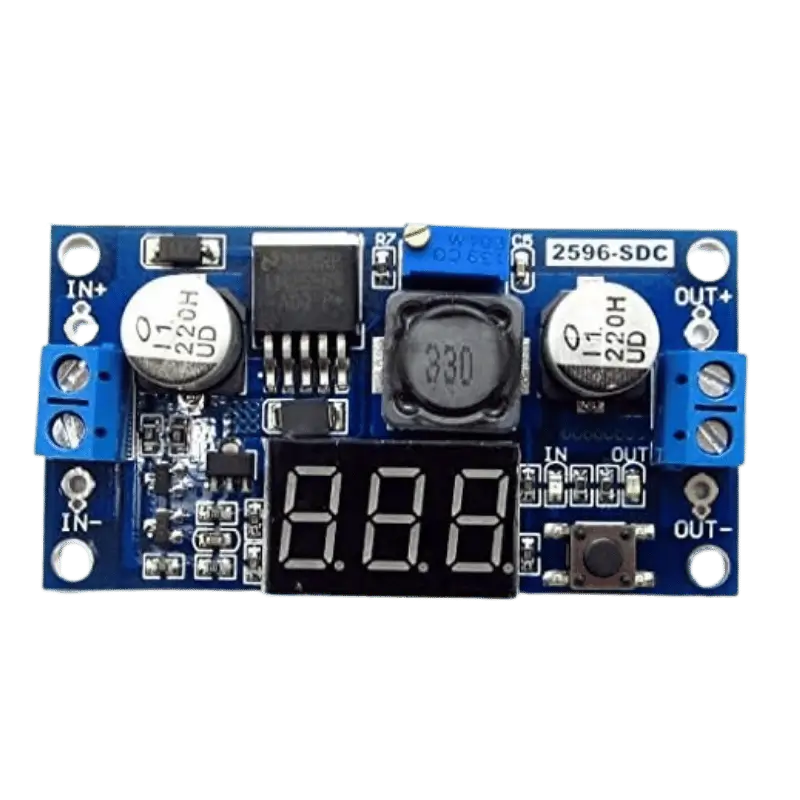

LM2596 DC-DC Step-Down Buck Converter Module with LED Voltmeter Display
80.00 EGP
A high-efficiency step-down voltage regulator featuring an integrated LED voltmeter. Easily lower input voltages up to 40V to a stable output, with real-time voltage monitoring on the built-in digital display. No multimeter required for calibration!
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Product Overview
This upgraded version of the standard LM2596 module includes a 3-digit LED display that shows either the input or output voltage. It is the perfect power solution for hobbyists who want to monitor their battery levels or output stability at a glance. The module also features a button to toggle the display on/off or switch between reading the input and output voltage.
Arduino & Power Wiring
-
IN+: Input Positive (4.5V to 40V) -
IN-: Input Negative (GND)
-
OUT+: Output Positive (1.25V to 37V)
-
OUT-: Output Negative (GND)
-

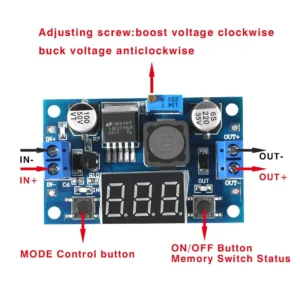

Left Button: Toggles the voltmeter display between Input (In LED lit) and Output (Out LED lit).
-
Adjustment: Turn the blue potentiometer to set your target voltage.
Technical Specifications
| Feature | Specification |
| Input Voltage | 4.5V to 40V |
| Output Voltage | 1.25V to 37V (Adjustable) |
| Output Current | 2A (Continuous), 3A (Max with Heat Sink) |
| Voltmeter Accuracy | $\pm 0.1V$ |
| Voltmeter Range | 0V to 40V |
| Switching Frequency | 150 KHz |
| Efficiency | Up to 92% |
Key Features
-
Self-Calibrating Voltmeter: High-accuracy display for convenient monitoring without extra tools.
-
Power-Off Memory: The display remembers your last setting (Input or Output mode).
-
Display Control: The voltmeter can be turned off to save power by holding the button.
-
Over-Heat Protection: Automatic thermal shutdown and short-circuit protection.
