Product Description

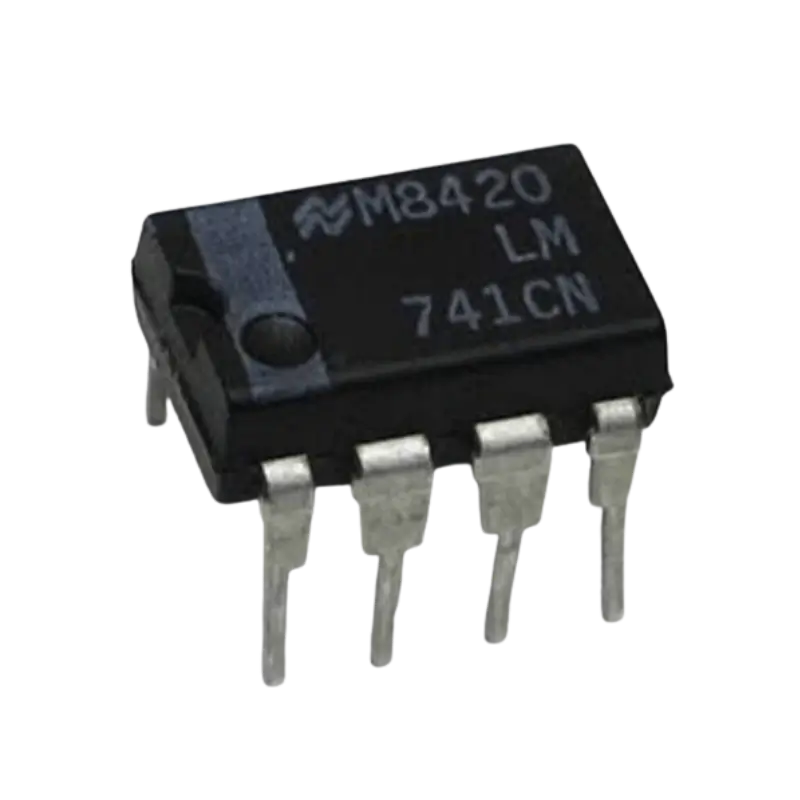

The LM741 Operational Amplifier IC is the legendary, industry-standard single op-amp designed for a wide range of analog signal processing, amplification, and linear control applications. Featuring internal frequency compensation, built-in short-circuit protection, and high common-mode input voltage range without latch-up, the LM741 remains a classic educational and practical component for analog circuits, audio preamps, comparator stages, and signal conditioning.
Operating on single or dual power supplies (up to $\pm 22\text{V}$), it provides reliable performance and robust voltage gain for custom electronics and laboratory breadboard prototyping.
⚠️ Circuit Design Tip: The LM741 is a classic non-rail-to-rail op-amp, meaning its output voltage swing typically stops 1V to 2V short of the supply rails. Take this voltage limitation into account when designing gain stages for lower-voltage single-supply circuits.
Technical & Architectural Highlights
Industry-Standard Design: Classic single operational amplifier layout trusted across decades of analog electronics engineering.
Overload & Short-Circuit Protection: Built-in internal protection prevents chip damage during accidental output shorts.
Wide Supply Voltage Range: Operates reliably on dual supplies from $\pm 5\text{V}$ up to $\pm 22\text{V}$ (or single supplies up to $44\text{V}$).
No Latch-Up: Inputs can withstand wide differential voltages without causing output phase reversal or latch-up errors.
🧰 Recommended Analog ICs & Prototyping Essentials
Building analog circuits or signal amplifiers? Pair this classic IC with these essential components:
LM358 Dual Operational Amplifier IC: Modern dual op-amp option for single-supply low-voltage applications: Pro Tronix IC Collection
IC Sockets (DIP-8 Solder Sockets): Protect your ICs during prototyping and allow easy chip swapping: Pro Tronix IC Sockets Collection
Precision Potentiometers & Trimmers: Fine-tune gain offsets and reference voltages in your analog feedback loops: Pro Tronix Potentiometers Collection
Resistor Kits & Capacitors: Essential passives for setting op-amp feedback ratios and active filter cutoffs: Pro Tronix Resistors Collection
Solderless Breadboards & Jumpers: Fast, reliable prototyping platforms for analog circuit testing: Pro Tronix Breadboards Collection
Technical Specifications
| Parameter | Value / Specification |
| IC Model | LM741 / LM741CN |
| Amplifier Type | General Purpose Single Op-Amp |
| Number of Channels | 1 (Single) |
| Single Supply Voltage Range | 10V to 44V DC |
| Dual Supply Voltage Range | $\pm 5\text{V}$ to $\pm 22\text{V}$ DC |
| Gain Bandwidth Product (GBP) | 1.0 MHz (Typical) |
| Slew Rate | 0.5 V/$\mu\text{s}$ |
| Package Type | DIP-8 (Through-Hole) |
Applications
Analog Signal Amplification: Linear amplification for sensors, audio signals, and DC voltage offsets.
Active Filters & Integrators: Building classical analog integrator, differentiator, and filter circuits.
Educational & Laboratory Experiments: Fundamental training component for learning analog electronics theory.
What’s in the Box
1 x LM741 Operational Amplifier IC (DIP-8).
All your electronics components and prototyping accessories are available with fast shipping across Egypt from Pro Tronix!
