LM555 Precision Timer IC | Pro Tronix

Product Description

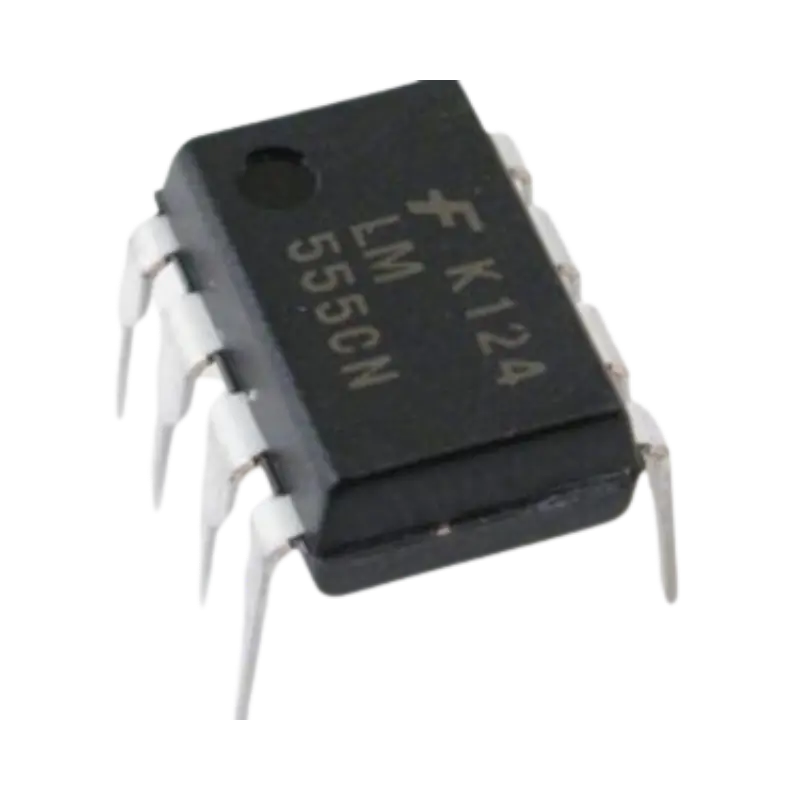

The LM555 Precision Timer IC is the industry-standard, highly stable controller capable of producing accurate time delays or oscillation. In time-delay (monostable) mode, the timed interval is controlled by a single external resistor and capacitor network. In astable (free-running) mode, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.

The circuit features internal threshold and trigger levels set at two-thirds and one-third of VCC, respectively. When the trigger input falls below one-third VCC, the internal flip-flop sets and the output goes HIGH. When threshold input rises above two-thirds VCC, the flip-flop resets and the output goes LOW. The high-current output structure can sink or source up to 200 mA, making it capable of directly driving relays, indicator LEDs, buzzers, or logic gates without external transistor amplification. Housed in a standard 8-pin DIP package, it is a foundational integrated circuit for timing, pulse generation, and frequency control applications.

⚠️ Circuit Design Tip: To ensure rock-solid frequency stability and prevent false triggering caused by supply line noise, always connect a 0.01 µF (10 nF) ceramic capacitor from Pin 5 (Control Voltage) to Ground (GND). Additionally, place a 100 nF decoupling capacitor across Pin 8 (VCC) and Pin 1 (GND) as close to the IC pins as possible.

Technical & Logic Architecture

This versatile timing circuit provides precise pulse generation and oscillation:

• Dual Operational Modes: Works seamlessly as a monostable (one-shot timer) or astable (square wave oscillator).

• High Output Drive: Sinks or sources up to 200 mA, allowing direct control of heavy loads like relays and buzzers.

• Wide Voltage Compatibility: Operates smoothly across a broad supply range from 4.5V to 15V DC.

• Breadboard-Friendly Package: Standard 8-pin Dual In-Line Package (DIP-8) for quick prototyping on breadboards and IC sockets.

🧮 Calculate Your Frequencies Online & Complete Your Prototyping Setup

Planning to build a timing or oscillator circuit? Skip manual calculations and test your component values directly using our interactive tool:

👉 Calculate Astable & Monostable Values with the Pro Tronix 555 Timer Online Calculator

Recommended Prototyping Essentials (Recommended Bundle)

To wire, test, and tune your LM555 circuit on a solderless setup, make sure you add these essential components to your cart:

1. Solderless Breadboard: The foundation for assembling your LM555 circuit, resistors, and capacitors without soldering: Pro Tronix Breadboards Collection

2. Jumper Wires & Cables: High-quality male-to-male wire packs to route signals between the 555 pins, power rails, and external loads: Pro Tronix Wires & Cables Collection

3. Capacitor Kit (Electrolytic & Ceramic): You will need a 10 nF (0.01 µF) ceramic capacitor for Pin 5 noise filtering, plus various timing capacitors (0.1 µF to 100 µF) to set your desired delay or frequency.

4. Resistor Assortment (1/4W Metal Film): Required for setting R1 and R2 timing values, as well as current-limiting resistors for output LEDs.

LM555 Function & State Summary

Key Terms for Function Table:

• VCC: Positive Power Supply Voltage (4.5V to 15V DC).

• X: Don’t Care (High or Low).

• Discharge Switch: Internal NPN transistor connected to Pin 7 used to discharge the timing capacitor.

LM555 Pinout Description & Logic Functions

• Pin 1 – GND: Ground reference pin (0V).

• Pin 2 – TRIG (Trigger): Active-LOW input that sets the output HIGH when voltage falls below 1/3 VCC.

• Pin 3 – OUT (Output): High-current output pin (Sinks/Sources up to 200 mA).

• Pin 4 – RESET: Active-LOW master reset. Connect to VCC during normal operation to prevent unintended resets.

• Pin 5 – CTRL (Control Voltage): Access point to internal voltage divider (2/3 VCC). Connect a 10 nF capacitor to GND for noise immunity.

• Pin 6 – THRES (Threshold): Input that resets output LOW when voltage rises above 2/3 VCC.

• Pin 7 – DISCH (Discharge): Open-collector output synced with main output; used to discharge timing capacitor.

• Pin 8 – VCC: Positive power supply input pin (+4.5V to +15V DC).

Operating Modes Summary

1. Astable Mode (Free-Running Oscillator): Generates continuous square waves and clock pulses for microcontrollers, tone generators, and flashing LED circuits.

2. Monostable Mode (One-Shot Timer): Produces a single precision time delay pulse of fixed duration triggered by an external pulse.

3. Bistable Mode (Flip-Flop / Latch): Operates as a basic memory latch toggled between states using Trigger and Reset inputs.

Applications

• Precision Timing & Delay Circuits: Delay-on timers, interval switches, and pulse-width modulators (PWM).

• Tone & Frequency Generation: Audio signal generation, alarm sirens, and clock sources for digital counters.

• Power Conversion: Driving MOSFET gates in simple DC-DC converters and voltage doublers.

Technical Specifications

What’s in the Box

• 1 x LM555 Precision Timer IC (DIP-8).

Everything you need for your next project is now available with guaranteed quality and fast shipping across Egypt.. Order now from Pro Tronix!
