MDS-60 Metal Detector Sensor Module Kit | Pro Tronix

Product Description

The MDS-60 Metal Detector Sensor Module Kit is an easy-to-assemble DIY inductive metal detection kit designed for STEM science projects, security system prototypes, automated sorting setups, and hands-on electronics training. Operating on a low 3V to 5V DC power supply, this compact module utilizes electromagnetic induction to detect nearby ferrous and non-ferrous metallic objects—including iron, copper, aluminum, and brass—at a proximity range of up to 60 mm.

Featuring an onboard PCB trace search coil, a high-sensitivity oscillator circuit, and a dual alert system (bright red LED visual indicator + active audio buzzer), the MDS-60 provides immediate feedback whenever metal enters its detection field. An integrated multi-turn potentiometer allows fine adjustment of detection sensitivity, letting you tune out background interference or calibrate for specific target sizes. With dedicated digital switching outputs, it interfaces seamlessly with microcontrollers like Arduino and ESP32 or operates as a standalone battery-powered detector.

⚠️ Calibration & Assembly Tip: When assembling and powering up the MDS-60, ensure the PCB search coil area is kept clear of metal workbenches or nearby tools. Use a plastic screwdriver to gently adjust the blue multi-turn potentiometer until the buzzer and LED just turn OFF. Once calibrated to this threshold, bringing a metal object near the PCB coil will trigger the oscillator circuit, instantly activating the buzzer and LED.

Technical & Architectural Highlights

This inductive metal sensor kit delivers reliable metal proximity detection in a compact PCB design:

• Inductive PCB Trace Coil: Integrated multi-turn printed antenna coil eliminates the need for bulky external wire coils.

• Dual Audible & Visual Alert: Onboard active buzzer and red LED provide instantaneous audio-visual feedback upon metal detection.

• Adjustable Sensitivity: Precision multi-turn potentiometer enables fine tuning of detection threshold and distance (up to 60 mm).

• Microcontroller-Friendly Output: Digital output signal (HIGH/LOW switch state) interfaces directly with Arduino, ESP32, and relay driver modules.

Technical Specifications

Applications

• STEM & Science Fair Projects: Hands-on physics demonstrations of electromagnetic induction and Eddy current principles.

• Automated Conveyor Sorting: Detecting metallic objects or parts passing along small automated conveyor belts.

• Security & Access Prototypes: Simulating handheld or doorway metal detectors and proximity security alarms.

• DIY Electronics Kits: Practical soldering and circuit tuning practice for electronics students and hobbyists.

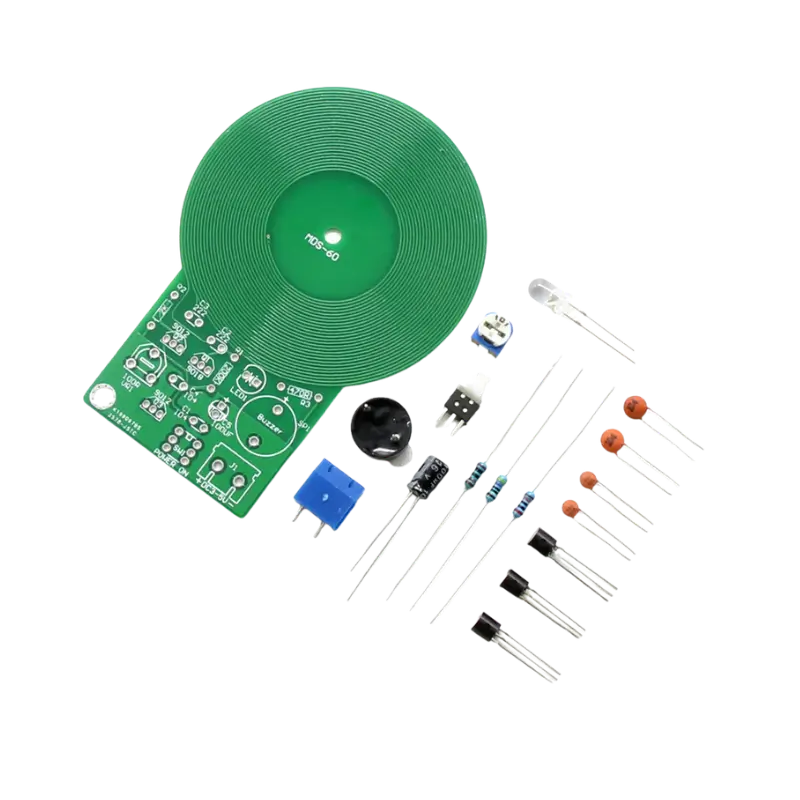

What’s in the Box

• 1 x MDS-60 Metal Detector Kit PCB with Integrated Coil.

• 1 x Set of Electronic Components (Buzzer, LED, Potentiometer, Transistors, Resistors, Capacitors).

Everything you need for your next project is now available with guaranteed quality and fast shipping across Egypt.. Order now from Pro Tronix!
