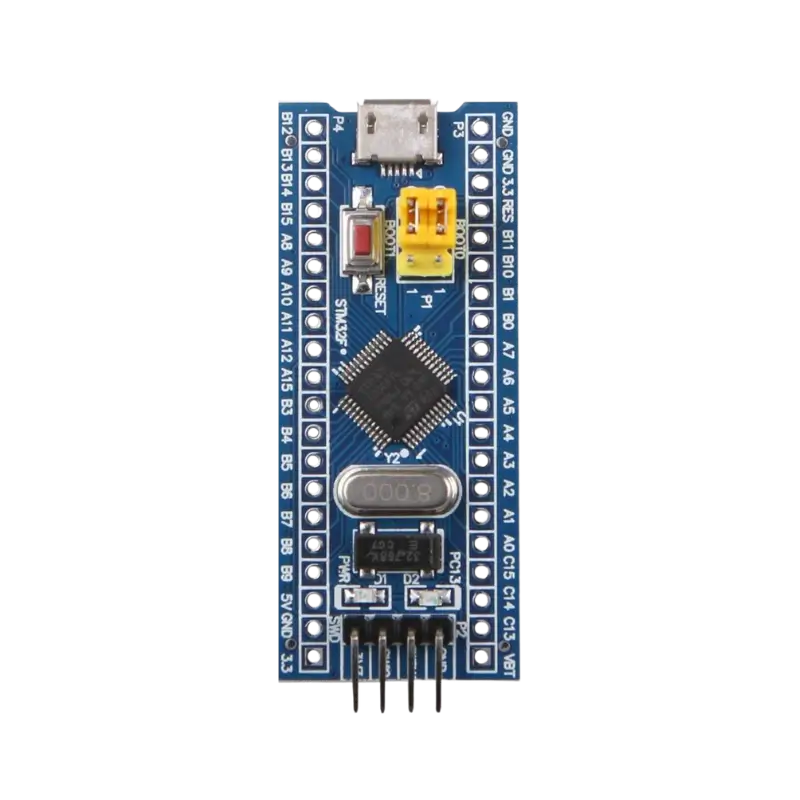

STM32F103C8T6 “Blue Pill” Development Board

Catchy & Attractive Product Name

STM32F103C8T6 “Blue Pill” ARM Cortex-M3 Development Board | Pro Tronix

Product Description

The STM32F103C8T6 “Blue Pill” is a high-performance, budget-friendly ARM Cortex-M3 development board engineered for advanced embedded systems, robotics, and real-time control applications. Powered by STMicroelectronics’ 32-bit ARM Cortex-M3 core operating at frequencies up to 72 MHz, the Blue Pill delivers significantly higher processing power, faster clock speed, and expanded peripheral options compared to traditional 8-bit AVR microcontrollers.

Featuring 64 KB of Flash memory and 20 KB of SRAM, this compact board includes a rich set of integrated hardware peripherals, including dual 12-bit ADCs, multiple 16-bit timers, hardware PWM generation, and dedicated hardware communication buses (SPI, I2C, USART, and USB 2.0 Full-Speed). Designed with standard 2.54 mm header pins in a slim DIP layout, it plugs directly into solderless breadboards for rapid circuit prototyping. It can be programmed using standard ARM toolchains like STM32CubeIDE and Keil uVision, or easily integrated into the familiar Arduino IDE environment using the STM32duino core.

⚠️ Programming & Bootloader Tip: The Blue Pill requires an external ST-Link V2 programmer or USB-to-TTL serial adapter (such as an FT232RL or CP2102) for firmware flashing. Ensure the yellow bootloader jumpers are set correctly: for standard execution from Flash, set BOOT0 to 0 and BOOT1 to 0. To flash firmware via UART serial bootloader, move BOOT0 to 1.

Technical & Architectural Highlights

This 32-bit ARM Cortex-M3 development board delivers high-speed computing in a breadboard-friendly format:

• 32-Bit ARM Cortex-M3 Core: Operates up to 72 MHz, offering exceptional execution speeds and hardware multiplication capabilities.

• Rich Peripheral Integration: Features dual 12-bit ADCs (16 channels), multiple hardware timers, and dedicated SPI, I2C, USART, and USB interfaces.

• 3.3V Logic with 5V Tolerant Inputs: Operates on 3.3V power while providing 5V tolerant GPIO pins for seamless interfacing with standard 5V digital sensors and modules.

• Breadboard-Friendly DIP Design: Dual-row 2.54 mm pin headers fit standard breadboards and prototyping shields effortlessly.

🧰 Prototyping & Control Setup (Recommended Bundle)

Building advanced ARM projects, sensor networks, or high-speed motor control setups? Add these essential prototyping components to your cart:

1. ST-Link V2 Programmer & Debugger: The essential USB tool for flashing firmware, debugging, and programming STM32 microcontrollers: Pro Tronix ST-Link V2 Collection

2. 5V / 12V / 24V Relay Modules: Perfect for isolating the STM32 digital outputs and controlling high-voltage pumps, solenoids, or AC loads: Pro Tronix Relay Modules Collection

3. Solderless Breadboard: The ideal foundation for assembling STM32 modules, sensors, and power lines without soldering: Pro Tronix Breadboards Collection

4. Jumper Wires & Cables: High-quality male-to-male, male-to-female, and female-to-female wire packs for routing power and high-speed signal lines: Pro Tronix Wires & Cables Collection

Pinout & Interface Summary

Applications

• High-Speed Real-Time Control: Motor speed control, flight controllers, and robotics positioning systems.

• Advanced Data Acquisition: High-speed sensor logging utilizing dual 12-bit ADC channels and DMA.

• Embedded IoT Gateways: Industrial automation nodes and custom communication bridges.

• Digital Signal Processing: Filtering and digital audio signal processing using the 32-bit ARM Cortex architecture.

Technical Specifications

What’s in the Box

• 1 x STM32F103C8T6 “Blue Pill” Development Board.

• 2 x 20-Pin Male Header Strips (Unsoldered/Pre-soldered depending on batch).

Everything you need for your next project is now available with guaranteed quality and fast shipping across Egypt.. Order now from Pro Tronix!
