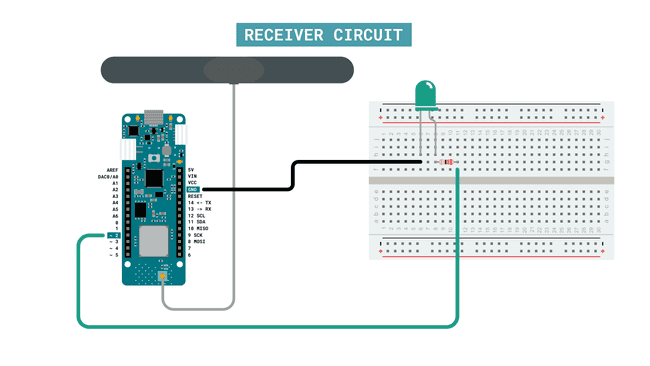

Arduino MKR WAN 1310 | LoRa® Connectivity
The Arduino MKR WAN 1310 provides a practical and cost effective solution to add LoRa® connectivity to projects requiring low power. This open source board can connect to the Arduino Cloud, your own LoRa-based network using the Arduino LoRa® PRO Gateway, existing public networks such as The Things Network or even other boards using the direct connectivity mode.
Tech Specs
Here you will find the technical specifications for the Arduino MKR WAN 1300.
Please read: operating voltage is 3.3V
The microcontroller on the this board runs at 3.3V, which means that you must never apply more than 3.3V to its Digital and Analog pins. Care must be taken when connecting sensors and actuators to assure that this limit of 3.3V is never exceeded. Connecting higher voltage signals, like the 5V commonly used with the other Arduino boards, will damage the board.
Please read: black conductive foam
You should remove the black conductive foam from the board pins before usage. If you don’t remove it, the board may behave erratically.
| Board | ||
|---|---|---|
| Name | Arduino® MKR WAN 1310 | |
| SKU | ABX00029 | |
| Compatibility | MKR | |
| Microcontroller | ||
| SAMD21 Cortex®-M0+ 32bit low power ARM MCU | ||
| USB connector | ||
| Micro USB (USB-B) | ||
| Pins | ||
| Built-in LED Pin | 6 | |
| Digital I/O Pins | 8 | |
| Analog Input Pins | 7 (ADC 8/10/12 bit) | |
| Analog Output Pins | 1 (DAC 10 bit) | |
| PMW Pins | 13 (0 – 8, 10, 12, A3, A4) | |
| External interrupts | 10 (0, 1, 4, 5, 6, 7, 8 ,9, A1, A2) | |
| Connectivity | ||
| LoRa | Murata CMWX1ZZABZ | |
| Carrier frequency | 433/868/915 MHz | |
| Region | EU/US | |
| Secure element | ATECC508A | |
| Communication | ||
| UART | Yes | |
| I2C | Yes | |
| SPI | Yes | |
| Power | ||
| I/O Voltage | 3.3V | |
| Input Voltage (nominal) | 5-7V | |
| DC Current per I/O pin | 7 mA | |
| Supported battery | Li-Po Single Cell, 3.7V, 1024mAh Minimum | |
| Battery connector | JST PH | |
| Lowest power consumption | 104uA | |
| Clock speed | ||
| Processor | 48 MHz | |
| RTC | 32.768 kHz | |
| Memory | ||
| SAMD21G18A | 256KB Flash, 32KB SRAM | |
| Murata CMWX1ZZABZ | 192KB Flash, 20KB RAM | |
| Dimensions | ||
| Weight | 32 g | |
| Width | 25 mm | |
| Length | 67.6 mm | |
Resources
Schematics
PCB Design
