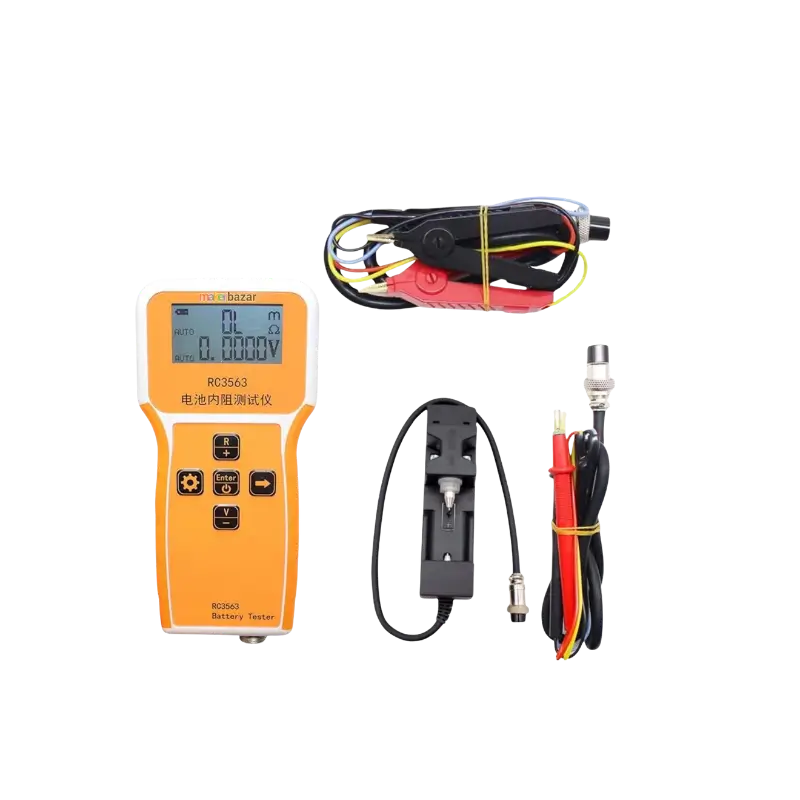

RC3563 Battery Internal Resistance Tester | Pro Tronix
Original price was: 3,550.00 EGP.3,500.00 EGPCurrent price is: 3,500.00 EGP.
Professional RC3563 battery internal resistance and voltage tester with four-wire Kelvin probes. Perfect for battery sorting, pack building, and health diagnostics!
In stock
Product Description
The RC3563 Battery Internal Resistance Tester is a professional-grade digital instrument designed for accurate, real-time measurement of internal resistance and voltage for various battery chemistries. Featuring high-precision four-wire Kelvin test leads, it effectively eliminates lead and contact resistance errors to deliver reliable, laboratory-grade measurements.
Essential for quality control, battery sorting, and preventative maintenance, this tester instantly evaluates the health, capacity status, and degradation level of Lithium-ion, LiFePO4, lead-acid, nickel-metal hydride, and button cell batteries.
⚠️ Measurement & Safety Tip: Always ensure the battery terminals are clean and free of corrosion before connecting the Kelvin probes. Do not attempt to test batteries exceeding the maximum rated voltage input limit of the device to prevent internal circuitry damage.
Technical & Architectural Highlights
-
Four-Wire Kelvin Testing: Utilizes separate current and voltage sensing leads to cancel out contact resistance and ensure high measurement accuracy.
-
Simultaneous V & IR Display: Measures and displays internal resistance and DC voltage simultaneously on a clear, backlit LCD screen.
-
Wide Battery Compatibility: Suitable for testing Lithium-ion, Lithium Iron Phosphate (LiFePO4), Lead-Acid, NiMH, and alkaline cells.
-
Built-In Calibration & Sorting Modes: Features manual and automatic sorting functions with preset resistance thresholds for quick batch testing.
Technical Specifications
| Parameter | Value / Specification |
| Product Model | RC3563 |
| Resistance Measurement Range | 0.01 mOhm to 200 Ohm |
| Voltage Measurement Range | 0.001V to 100V DC |
| Test Frequency | AC 1 kHz |
| Display Type | Digital LCD Screen with Backlight |
| Power Source | Built-in Rechargeable Lithium Battery / USB Power |
Applications
-
Battery Pack Assembly & Sorting: Matching cells by internal resistance and voltage for custom e-bike and power tool battery builds.
-
Preventative Maintenance: Diagnosing aging or failing cells in UPS backups, solar energy storage systems, and electric vehicle packs.
-
Quality Control & Testing: Inspecting incoming inventory in electronics repair shops and manufacturing setups.
What’s in the Box
-
1 x RC3563 Battery Internal Resistance Tester.
-
1 x Set of Four-Wire Kelvin Test Probes (or Clip Leads depending on version).
-
1 x USB Charging / Data Cable.
