Product Description

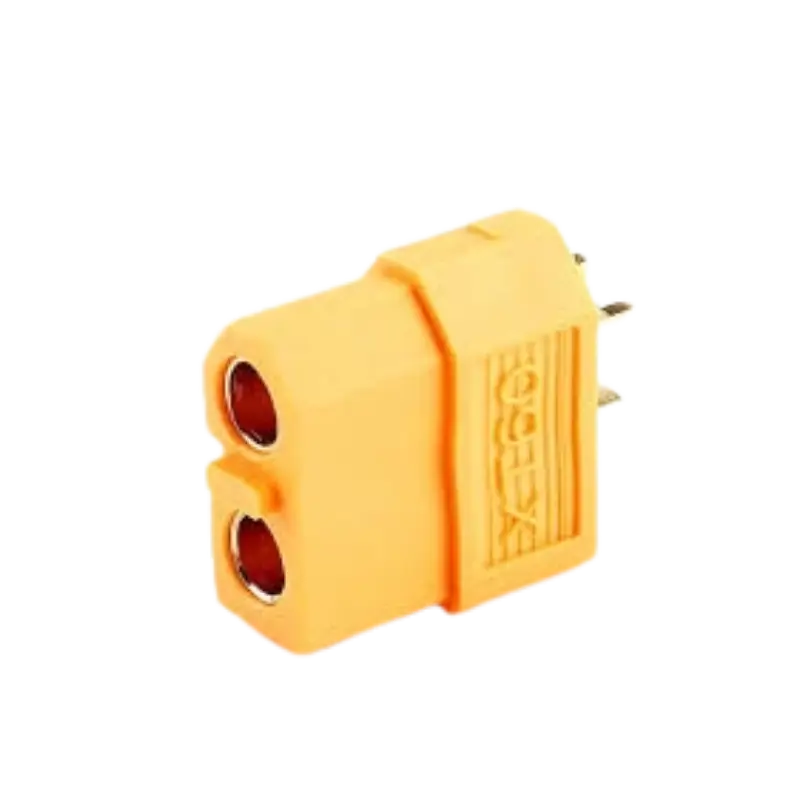

The XT60 Female Power Connector is an industry-standard, heavy-duty battery interface engineered to handle high-current DC power transmission. This package contains the standalone female nylon housing with matching internal gold-plated sleeve terminals, providing a low-resistance connection for high-drain electronic systems.
Molded from high-temperature, impact-resistant nylon, this connector is designed to withstand structural stress and extreme thermal loads without softening or deforming. Its asymmetric, keyed geometry prevents accidental reverse-polarity connections, safeguarding your power distribution boards and speed controllers from damage. It is the definitive choice for fabricating custom power cables, upgrading stock battery leads, or building high-output battery packs for RC drones, electric vehicles, and robotics platforms.
⚠️ Handling Tip: XT60 connectors fit tightly by design to prevent accidental disconnection during high-vibration operation. When separating connected terminals, always grip the textured nylon connector housings firmly and pull them straight apart. Never pull on connected wires directly, as this can strain your internal solder joints.
Connection Interface
This high-current component utilizes a robust, non-reversible coupling structure:
Connector Type: XT60 Female Housing.
Terminal Pins: Premium gold-plated solid brass sleeves for low electrical contact resistance.
Safety Profile: Keyed nylon shroud with distinct positive (+) and negative (–) markings molded into the flat casing edge.
Applications
Custom Battery Pack Assemblies: Soldering direct high-current discharge leads onto multi-cell LiPo, LiFePO4, or Li-ion battery arrays.
Robotics Power Links: Fabricating robust, low-loss quick-disconnect umbilical power lines between primary voltage grids and high-power motor drivers.
Charging Adapter Cables: Constructing custom multi-charging bridge lines to interface with specialized smart battery chargers.
Technical Specifications
| Parameter | Value / Specification |
| Connector Type | XT60 Female |
| Contact Material | Gold-Plated Brass Sleeve |
| Housing Material | High-Temperature Nylon (PA66) |
| Compatible Wire Gauge | Up to 12 AWG silicone wire comfortably |
| Continuous Current Rating | Up to 60A safely |
| Maximum Operating Temperature | Up to 200 degrees Celsius |
What’s in the Box
1 x XT60 Female Nylon Power Connector.
