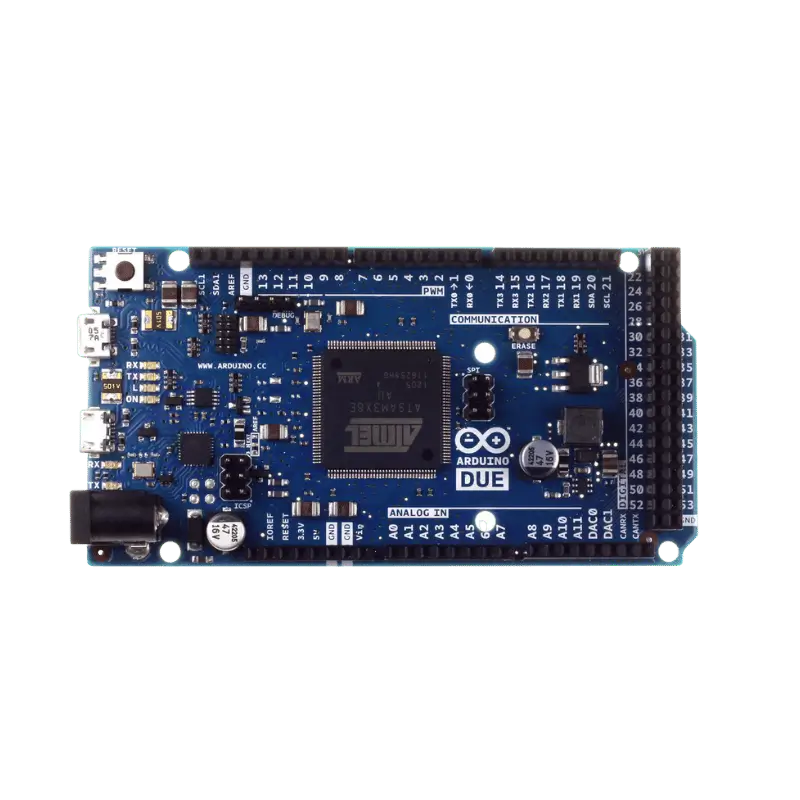

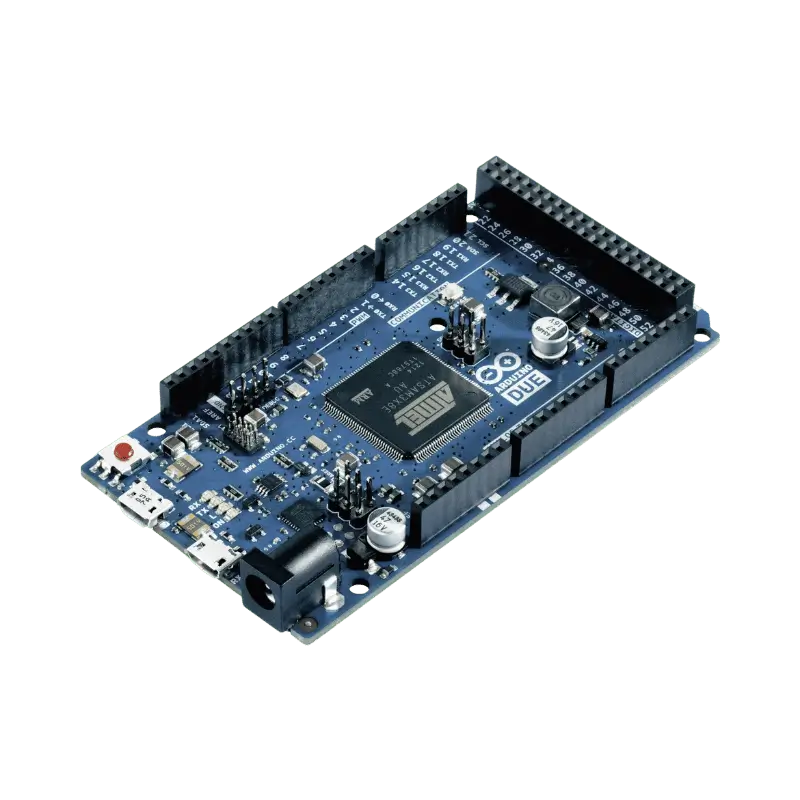

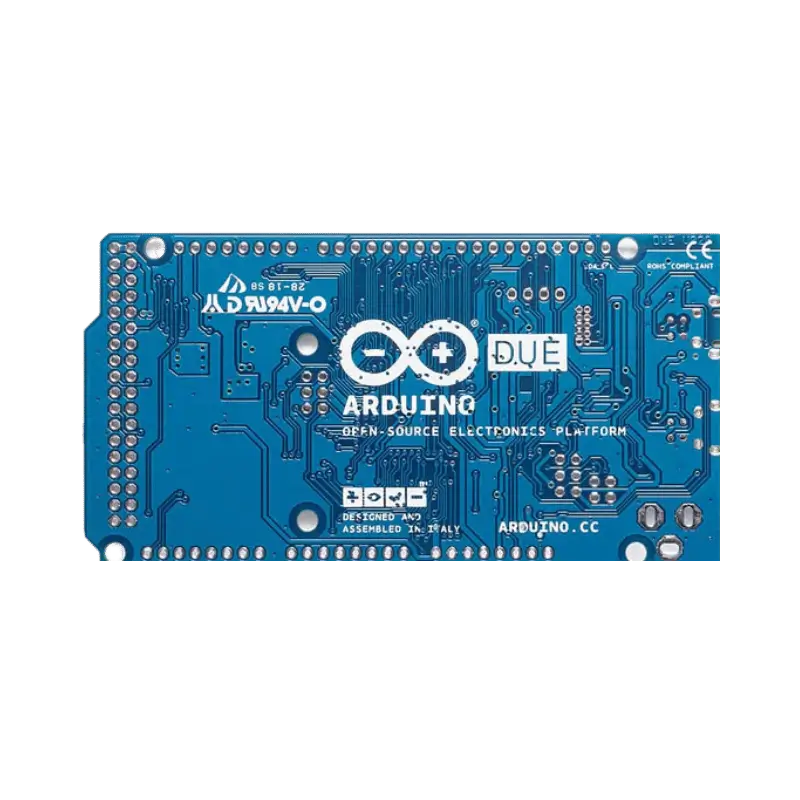

Arduino Due | 32-Bit ARM Cortex-M3
Product Overview
The Arduino Due from Pro Tronix marks the transition from 8-bit to 32-bit professional computing. Based on the Atmel SAM3X8E ARM Cortex-M3 CPU, it offers a massive performance boost over the Mega 2560, making it ideal for math-intensive applications and multitasking.
Its 84MHz clock speed and 96KB of SRAM allow it to handle complex algorithms and real-time operations that would overwhelm a standard Arduino. It features 54 digital pins (the same footprint as the Mega), but with the added precision of two 12-bit DACs for true analog output and 12-bit ADC resolution for incredibly fine sensor readings. Additionally, it includes a Native USB port that can act as a USB Host, allowing you to connect peripherals like mice, keyboards, or even smartphones directly to your project.
Technical Specifications
| Feature | Specification |
| Microcontroller | AT91SAM3X8E (ARM Cortex-M3) |
| Clock Speed | 84 MHz |
| Operating Voltage | 3.3V (Pins are NOT 5V tolerant) |
| Flash Memory | 512 KB |
| SRAM | 96 KB (Dual bank: 64KB + 32KB) |
| Digital I/O Pins | 54 (12 provide PWM output) |
| Analog Input Pins | 12 (12-bit resolution) |
| Analog Output Pins | 2 (12-bit DAC) |
| Communication | 4 UARTs, 2 I2C (TWI), 1 SPI, 2 CAN bus |
| USB Connectivity | 1 Programming Port + 1 Native Port (Host/Device) |
| Supplier | Pro Tronix |
Key Features
32-Bit Power: Processes 4-byte wide data in a single clock cycle, significantly outperforming 8-bit microcontrollers.
Dual USB Ports: Features a dedicated programming port for stable uploads and a native port that supports USB On-The-Go (OTG).
True Analog Output: The two 12-bit DACs allow you to generate high-quality audio or precise control voltages without PWM filtering.
DMA Controller: Includes a Direct Memory Access controller that speeds up memory-intensive tasks by offloading them from the CPU.
CAN Bus Ready: Built-in support for the Controller Area Network (CAN) protocol, essential for automotive and industrial networking.
Common Applications
High-End Robotics: Controlling multi-axis arms or autonomous rovers that require fast sensor-fusion calculations.
3D Printing & CNC: Processing G-code and driving high-speed stepper motor signals with high precision.
Digital Signal Processing (DSP): Filtering audio or analyzing high-speed analog signals in real-time.
Industrial Control: Utilizing the CAN bus and multiple UARTs to bridge various industrial machines and sensors.
⚠️ Critical Voltage Warning: The Arduino Due operates at 3.3V. Applying 5V to any of its I/O pins will damage the SAM3X chip. Ensure all your sensors and shields are 3.3V compatible or use logic level converters.
