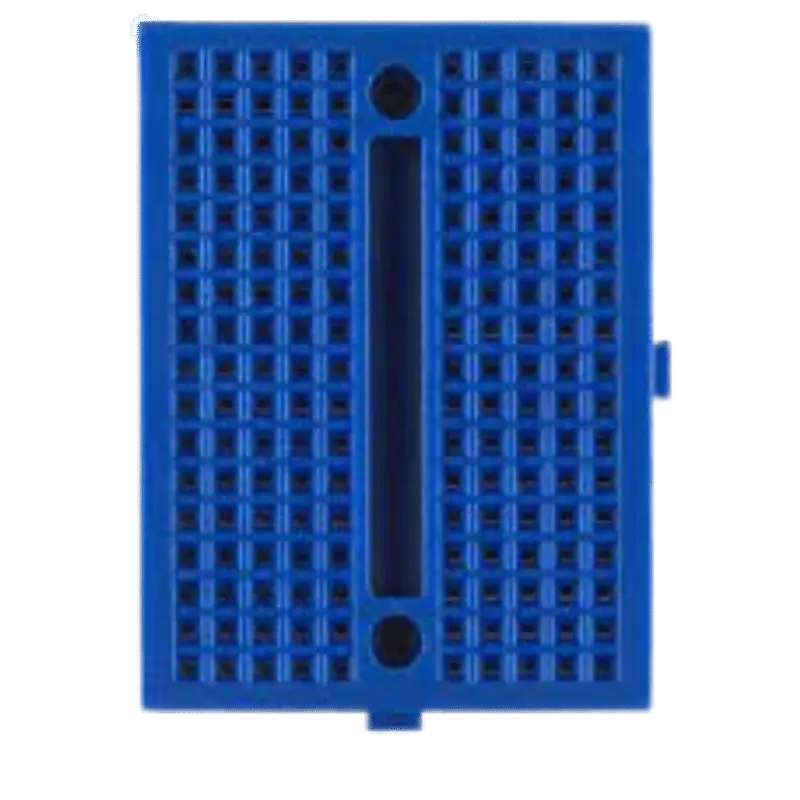

170-Point Mini Solderless Breadboard (Blue) – SYB-170
15.00 EGP
A sleek blue 170-point mini solderless breadboard designed for compact prototyping. Features a strong self-adhesive backing for easy mounting on Arduino shields and robot frames. An excellent choice for organizing and color-coding your electronic builds.
In stock
Product Overview
The blue 170-point mini breadboard is perfect for makers who want to add a professional touch to their prototypes. This small form-factor board is ideal for mounting a single sensor, a display, or an IC without wasting space. It consists of 17 columns with two sets of 5 connected terminals. Its interlocking design allows you to connect multiple boards of different colors to expand your workspace as needed.
How to Use & Connections
-
Vertical Connectivity: Each column of 5 holes is internally connected.
-
DIP IC Support: The center divider allows for the mounting of standard Dual In-line Package (DIP) ICs.
-
Sticky Base: Includes a high-quality adhesive foam on the bottom—just peel and stick it to your project chassis.
Technical Specifications
| Feature | Specification |
| Color | Blue |
| Tie-Points | 170 Points |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard for All Electronic Pins |
| Dimensions | 45mm x 34mm x 8.5mm |
| Base Material | ABS Plastic |
| Contact Material | Nickel-Plated Phosphor Bronze |
| Mounting | Self-Adhesive PE Foam Tape |
Key Features
-
Vibrant Blue Finish: Provides a modern, high-tech look for your prototypes.
-
Modular & Interlocking: Features side tabs to connect with other mini breadboards of any color.
-
Tightly Gripping Clips: Internal clips are built to last, providing a secure connection for 20-29 AWG wires.
-
Tool-Free Design: Change components and re-wire your circuit in seconds without soldering.
Downloads & Resources
Shipping & Delivery Policy
At Protronix, we ensure your orders are delivered safely and efficiently through multiple reliable channels tailored to your needs.
Our Delivery Methods
-
Egypt Post: Standard shipping to all governorates across Egypt via the National Postal Authority.
-
Uber Scooter: Fast, same-day express delivery for local orders within supported urban areas.
-
Store Pickup: You can skip the shipping fees by collecting your order directly from our main branch.
