Product Overview

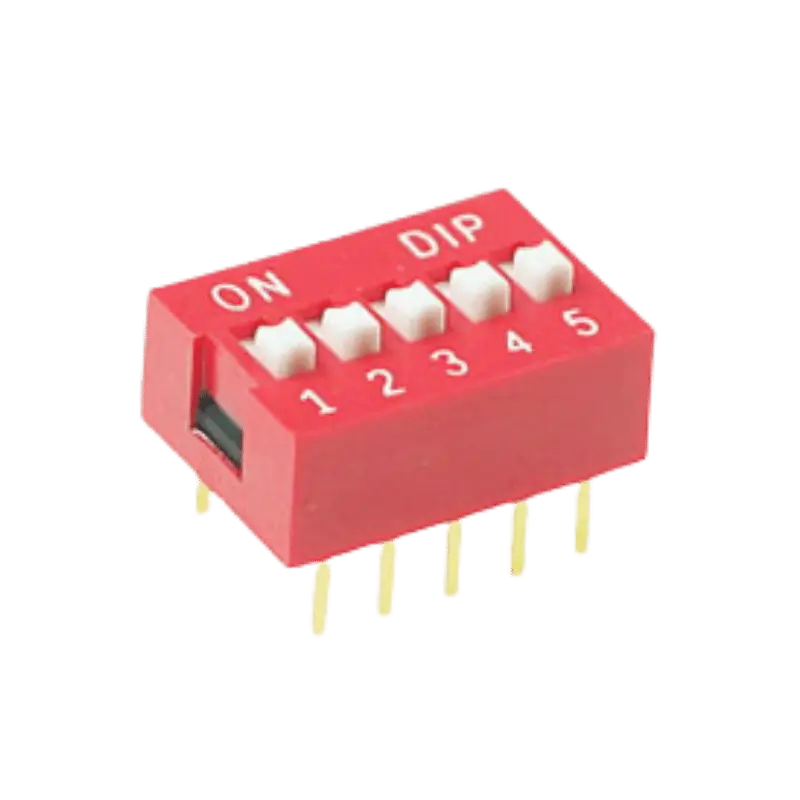

The 5-position DIP switch from Pro Tronix offers a practical solution for projects that require multiple input settings without the footprint of larger switches. With five individual switches, you can create up to 32 unique binary states. This is commonly used for setting specific hardware addresses, selecting operating modes for sensors, or adjusting gain settings in analog-to-digital circuits.
Technical Specifications
| Feature | Specification |
| Number of Positions | 5 Positions |
| Circuit | SPST (Single Pole Single Throw) x 5 |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard |
| Contact Rating | 25mA @ 24V DC |
| Mechanical Life | 2,000 cycles per switch |
| Material | PBT / UL94V-0 High-temperature Plastic |
| Supplier | Pro Tronix |
Key Features
Compact Integration: Provides five switching channels in a small 10-pin package.
Pro-Grade Reliability: Features high-quality contacts by Pro Tronix for consistent electrical performance over time.
Breadboard & PCB Friendly: Designed with standard 0.1″ lead spacing to plug directly into breadboards or solder into project boards.
User-Friendly Labels: Clearly numbered positions (1-5) and “ON” marking for easy setup and troubleshooting.
