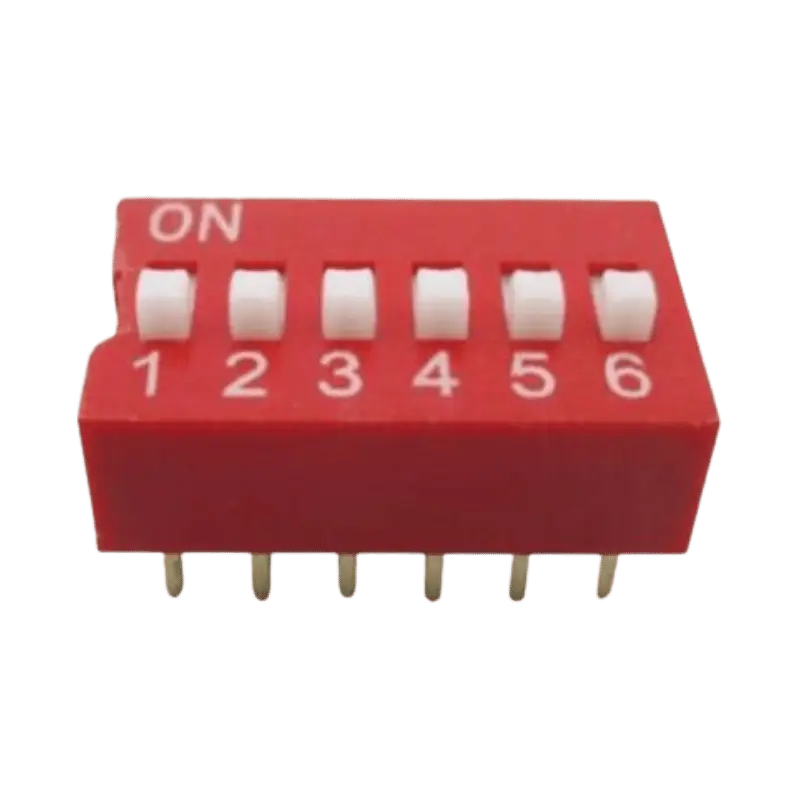

The 6-position DIP (Dual In-line Package) switch from Pro Tronix is an essential component for projects requiring multiple user-selectable settings. Each of the six switches operates independently, allowing for up to 64 different binary combinations. This makes it ideal for setting device IDs, selecting communication baud rates, or toggling various software features on microcontrollers like Arduino, ESP32, and Raspberry Pi.
Technical Specifications
| Feature | Specification |
| Number of Positions | 6 Positions |
| Circuit | SPST (Single Pole Single Throw) x 6 |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard |
| Contact Rating | 25mA @ 24V DC |
| Insulation Resistance | 100MΩ Min @ 500V DC |
| Material | Heat-resistant UL94V-0 Plastic |
| Supplier | Pro Tronix |
Key Features
Space-Efficient: Consolidates six individual switches into one standardized 12-pin package.
Gold-Plated Contacts: Pro Tronix ensures low contact resistance and maximum protection against corrosion.
Standard Compatibility: Perfectly fits into the MB-102 breadboard and all standard 0.1″ pitch prototyping PCBs.
Highly Visible Markings: White numbered markings (1-6) and a clear “ON” indicator for fast and accurate configuration.
