Magnetic Reed Switch 2-Pin
0.00 EGP
| Weight | 0.00 kg |
|---|
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Description

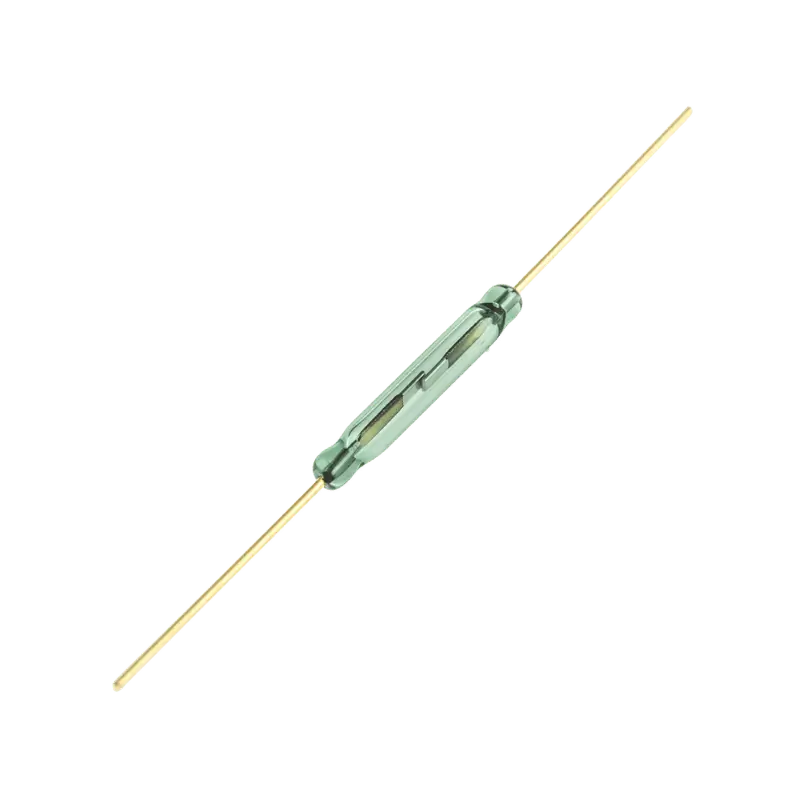

This is Reed Switch 2 x 14 mm Magnetic Control Switch with Normally Open Contact.
When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A.
This small and easy to use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range.
Features :
- Small Module.
- Very easy to use.
- Direct connection in the circuit.
Specifications
| Model: | Reed Switch |
|---|---|
| Frequency (Hz) | 100 |
| Mech. Electrical Lifecycle | ≈ 100,000 |
| Contact Resistance | 20mΩ |
| Insulation Resistance (MOhm) | 100 |
| Operating Temperature (°C): | -50 to 140 |
| Length (mm): | 14 |
| Width (mm): | 2 (Body Diameter) |
| Weight (g): | 1 (approx) (each) |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
Package Includes :
1x Reed Switch 2 x 14 mm Magnetic Control Switch
