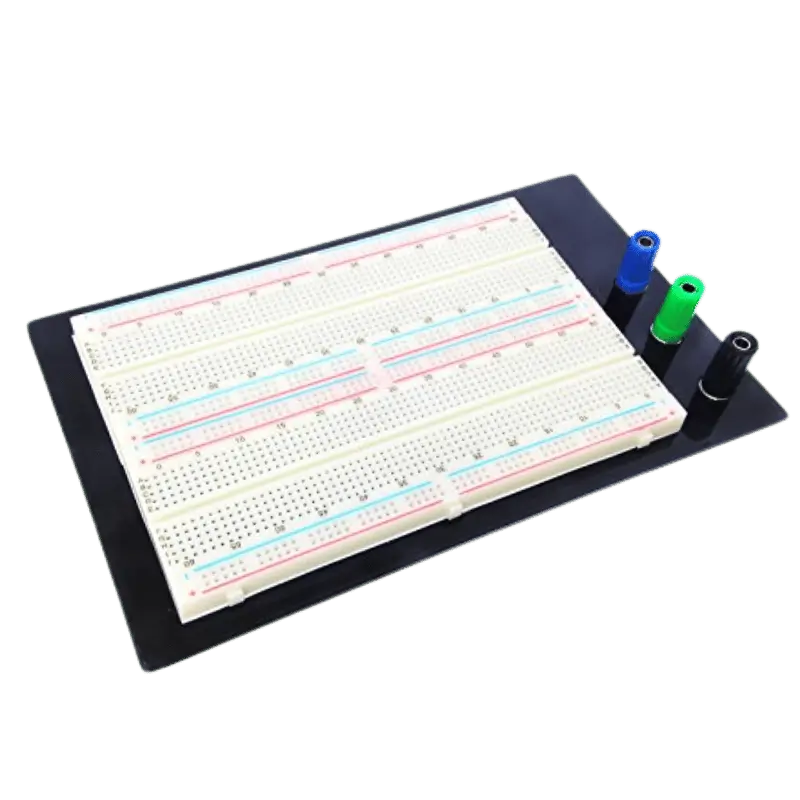

ZY-204 Solderless Breadboard – 1660 Tie-Points
200.00 EGP
A heavy-duty, professional prototyping station with 1660 tie-points. This large-scale breadboard consists of two standard 830-point boards mounted on a solid aluminum/plastic base, providing a massive workspace for complex electronics and industrial prototyping.
In stock
Product Overview
The black 170-point mini breadboard is the go-to choice for makers who want their projects to look professional and “stealthy.” This board is identical in function to standard breadboards but comes in a deep black finish that hides shadows and makes your components pop. It features 17 columns of 5-point rows and a center notch for IC mounting. Its compact footprint is ideal for wearable tech and small IoT devices.
How to Use & Connections
-
Vertical Connectivity: Each column of 5 holes is internally connected.
-
IC Center Notch: The middle divider allows you to place Integrated Circuits (ICs) across the gap while keeping the left and right pins isolated.
-
Peel-and-Stick: The bottom includes a high-strength adhesive layer for permanent fixing to any flat surface.
Technical Specifications
| Feature | Specification |
| Color | Black |
| Tie-Points | 170 Points |
| Pitch (Spacing) | 0.1″ (2.54mm) – Standard for ICs & Jumpers |
| Dimensions | 45mm x 34mm x 8.5mm |
| Base Material | ABS Plastic |
| Internal Contacts | Nickel-Plated Phosphor Bronze |
| Mounting | Self-Adhesive PE Foam Tape |
Key Features
-
Professional Aesthetics: The black color provides a clean, modern look for finished prototypes.
-
Secure Component Grip: High-quality internal clips ensure your wires and sensors stay in place even if the project moves.
-
Universal Compatibility: Works with all standard jumper wires (Male-to-Male) and 0.1″ pitch headers.
-
Solderless Simplicity: Quickly test or change your circuit design without the need for tools.
Downloads & Resources
Shipping & Delivery Policy
At Protronix, we ensure your orders are delivered safely and efficiently through multiple reliable channels tailored to your needs.
Our Delivery Methods
-
Egypt Post: Standard shipping to all governorates across Egypt via the National Postal Authority.
-
Uber Scooter: Fast, same-day express delivery for local orders within supported urban areas.
-
Store Pickup: You can skip the shipping fees by collecting your order directly from our main branch.
