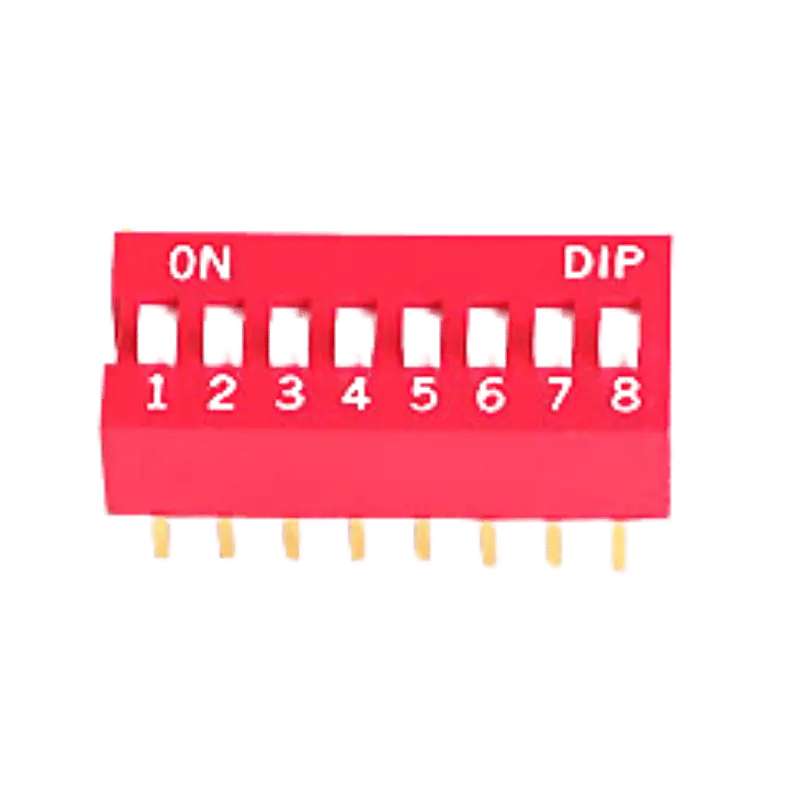

DIP Switch 8 Position

Detailed Product Description

Welcome to Pro Tronix, the best electronics store for high-performance components like the 8 Position DIP Switch. This component is a staple in professional circuit design, providing a manual interface to manage up to 256 binary combinations. Whether you are setting device IDs or configuring system modes, our 8 Position DIP Switch ensures precision and ease of use.

At our electronics store, we focus on durability. This 8 Position DIP Switch is built with heat-resistant UL94V-0 thermoplastic, allowing it to withstand professional soldering temperatures without damage. The internal contacts of the 8 Position DIP Switch are gold-plated to prevent oxidation, ensuring long-term conductivity and a crisp tactile “click” every time you toggle a switch.

Designed with a standard 2.54mm pitch, this 8 Position DIP Switch fits perfectly into breadboards and standard PCB footprints. It is the ideal choice for networking gear, industrial controllers, and DIY Arduino projects that require multiple manual settings. Choosing an 8 Position DIP Switch from Pro Tronix means choosing industrial-grade reliability for your hardware logic.

Features

• Standard DIP Size
• Ideal for Circuit Settings
• 8 x SPST Switches
• Each Switch Clearly Numbered
• RoHS Compliant

Technical Specifications

• Product Name: 8 Position DIP Switch

• Number of Ways: 8-Position (16 Pins)

• Pitch Spacing: 2.54mm (0.1 inch) standard for 8 Position DIP Switch

• Rating: 25mA @ 24V DC (Switching)

• Contact Material: Premium Gold-Plated for 8 Position DIP Switch longevity

• Housing: High-Temp UL94V-0 Thermoplastic

• Mechanical Life: 2,000+ Cycles from Pro Tronix Electronics Store

Wiring Connection & Layout Guide

Integrating the 8 Position DIP Switch is straightforward. The pins are spaced 7.62mm apart between rows. For standard logic, connect one row of the 8 Position DIP Switch to Ground (GND) and the other to your microcontroller’s digital pins. We recommend using 10kΩ pull-up resistors with the 8 Position DIP Switch to ensure stable signal reading and avoid floating logic states.

Explore our full Switches and Buttons collection at the Pro Tronix electronics store to find more configuration solutions like the 8 Position DIP Switch.

Datasheet

Download 8 Position DIP Switch Technical Datasheet PDF
